IS220PRTDH1A RTD Input I/O Pack for Mark VIe Control Systems
| Place of Origin | USA |
|---|---|
| Brand Name | GE |
| Certification | COO ,COC ,CQ |
| Model Number | IS220PRTDH1A |
| Minimum Order Quantity | 1 |
| Price | $6000 |
| Delivery Time | 5-7days |
| Payment Terms | T/T |
| Supply Ability | 999 |
Product Details
| Product ID | GE IS220PRTDH1A | Brand | GE |
|---|---|---|---|
| Model Number | IS220PRTDH1A | Warranty | 1 Year |
| Function | Good | Condition | New |
| Highlight | GE Mark VIe RTD input module,IS220PRTDH1A I/O pack,RTD input module for PLC |
||
Product Description
IS220PRTDH1A RTD Input I/O Pack for Mark VIe Control Systems
The IS220PRTDH1A RTD Input I/O Pack is designed for Mark VIe distributed control systems, providing an interface between compatible RTD (Resistance Temperature Device) input terminal boards and one or two IONet Ethernet networks. The module combines a common Mark VIe processor board with a dedicated RTD signal acquisition board, enabling accurate resistance temperature measurement for industrial control applications. It supports up to eight RTD input channels, while compatible TRTD terminal boards can accommodate up to 16 RTD measurement points.
Designed for temperature monitoring in turbine and process automation systems, the IS220PRTDH1A integrates Ethernet communication, signal acquisition, and diagnostic functions into a compact I/O pack. It is compatible with selected RTD terminal boards and can be deployed in Simplex, Dual, or TMR architectures depending on the terminal board configuration, making it suitable for lifecycle maintenance, system upgrades, and replacement projects.
Technical Specifications
| Model Number | IS220PRTDH1A |
|---|---|
| Other Models |
IS420PPNGH1A IS420ESWBH3A IS420UCSCS2A IS420YAICS1B IS420YDIAS1B |

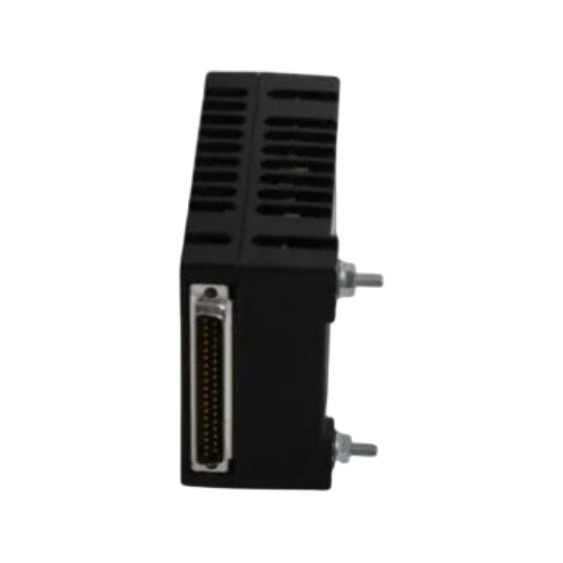

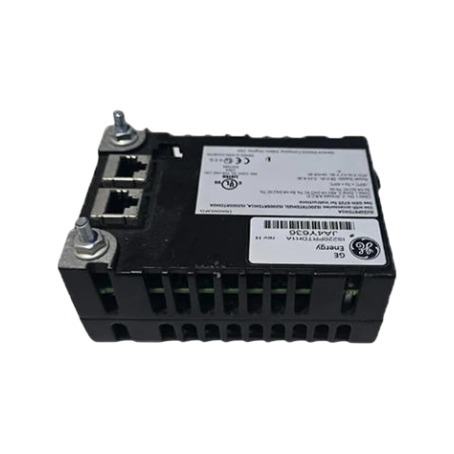

Product Images
Key Features & Benefits
- Optimized for RTD Temperature Measurement: The IS220PRTDH1A is specifically designed to acquire signals from Resistance Temperature Devices (RTDs). By using a dedicated RTD acquisition board, the module provides a reliable interface for temperature monitoring applications commonly found in industrial control systems.
- Flexible Network Integration: Supporting connection to one or two IONet Ethernet networks, the module enables seamless communication with the Mark VIe controller while maintaining compatibility with distributed I/O architectures. This flexibility simplifies integration into existing automation systems.
- Simplified Maintenance and Diagnostics: Integrated LED status indicators and a modular I/O pack design help maintenance personnel quickly identify module status and replace hardware efficiently, minimizing downtime during routine service or system upgrades.
Engineering Note
When installing or replacing an RTD Input I/O Pack, it is important to verify compatibility with the corresponding TRTD or SRTD terminal board revision. Selecting the correct hardware combination helps ensure proper RTD signal acquisition and reliable communication within the Mark VIe control system.
Global Applications
Asia Pacific: China, South Korea, Japan, India, Southeast Asia
Middle East: Saudi Arabia, UAE, Qatar
North America: United States, Canada
Europe: Germany, United Kingdom, France, Russia, Turkey
Latin America: Brazil, Argentina, Mexico
Typical Applications
- Gas Turbine Static Starter Systems
- Power Generation Plants
- Heavy Industrial Motor Starting
- Oil & Gas Facilities
- Petrochemical Plants
- Industrial Drive Systems
- Electrical Power Conversion Equipment
Project Case
A power generation facility upgraded its temperature monitoring subsystem by replacing an existing RTD interface with the IS220PRTDH1A RTD Input I/O Pack. The new module integrated with the existing Mark VIe architecture and restored stable RTD signal acquisition, enabling accurate temperature monitoring without requiring changes to the original control system.
Our Advantages
- Export to 40+ countries
- Complete after-sales service
- Stable supply chain to ensure continuous supply
- COO, COC and CQ support
- Rapid quotation response
Frequently Asked Questions
Q1: What is the primary function of the IS220PRTDH1A?
The IS220PRTDH1A is an RTD Input I/O Pack that provides the interface between compatible RTD terminal boards and the Mark VIe control system for resistance temperature measurement.
Q2: How many RTD inputs does the module support?
The I/O pack supports up to 8 RTD input channels, while compatible TRTD terminal boards can support up to 16 RTD inputs when used in the appropriate configuration.
Q3: Which terminal boards are compatible with the IS220PRTDH1A?
The module is compatible with selected TRTDH1D, TRTDH2D, and SRTD terminal boards. Compatibility should be confirmed before installation to ensure correct system operation.
Installation Requirements
- Professional installation required for optimal performance and safety
- Ensure proper mounting and adequate ventilation
- Comply with all applicable electrical safety standards
