GE DS200FGPAG1AKD Gate Pulse Amplifier Board for LS2100 Static Starter Control System
| Place of Origin | USA |
|---|---|
| Brand Name | GE |
| Certification | COO ,COC ,CQ |
| Model Number | DS200FGPAG1AKD |
| Minimum Order Quantity | 1 |
| Price | $5999 |
| Delivery Time | 5-7days |
| Payment Terms | T/T |
| Supply Ability | 999 |
Product Details
| Product ID | GE DS200FGPAG1AKD | Brand | GE |
|---|---|---|---|
| Model Number | DS200FGPAG1AKD | Warranty | 1 Year |
| Function | Good | Condition | New |
| Highlight | GE DS200FGPAG1AKD amplifier board,Gate pulse amplifier for LS2100,GE PLC static starter control board |
||
Product Description
GE DS200FGPAG1AKD Gate Pulse Amplifier Board for LS2100 Static Starter Control System
Product Overview
The DS200FGPAG1AKD is a Gate Pulse Amplifier Board manufactured by GE Energy for the LS2100 Static Starter Control System. Its primary function is to generate and amplify gate pulses that drive SCRs (Silicon Controlled Rectifiers) within the static starter. At the same time, the board continuously monitors SCR operating status to help maintain safe and efficient motor starting performance.
The board incorporates multiple integrated circuits, transformers, resistor arrays, heat sinks, and fiber-optic communication interfaces, enabling stable operation under demanding industrial conditions. It is commonly used in gas turbine starter systems, power plants, and heavy-duty industrial motor control applications.
Technical Specifications
| Model Number | DS200FGPAG1AKD |
|---|---|
| Other Models |
DS200FCSAG2ACB DS200FCSAG1ACB DS200FCGDH1BCA DS200FCGDH1BAA DS200FHVAG1ABA DS200FGPAG1ALD DS200FSAAG1ABA |

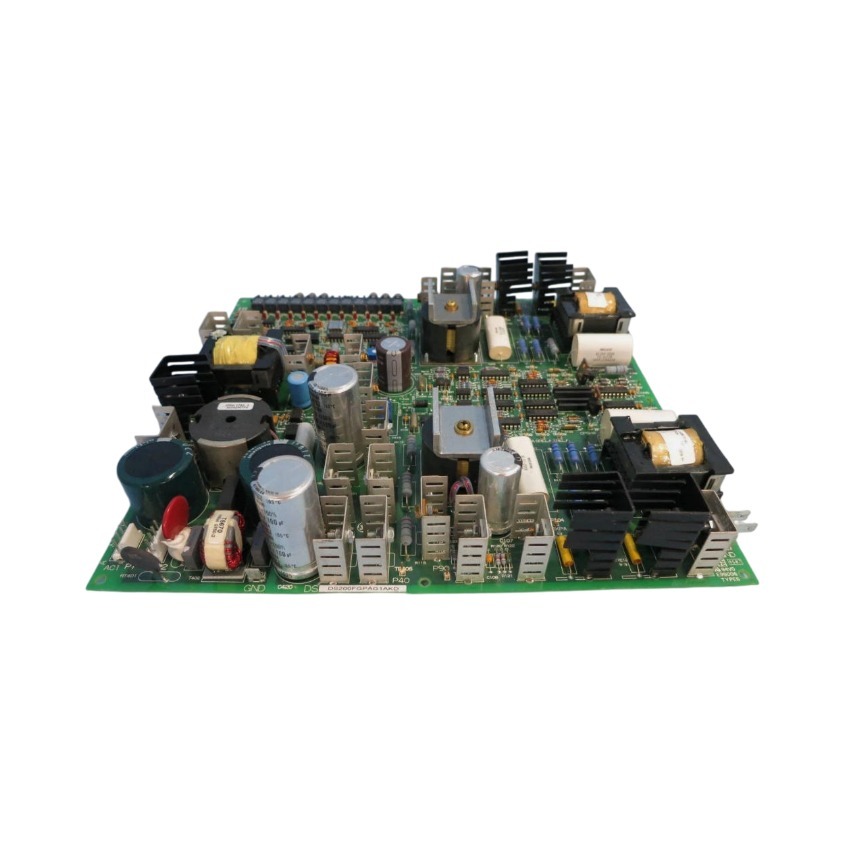

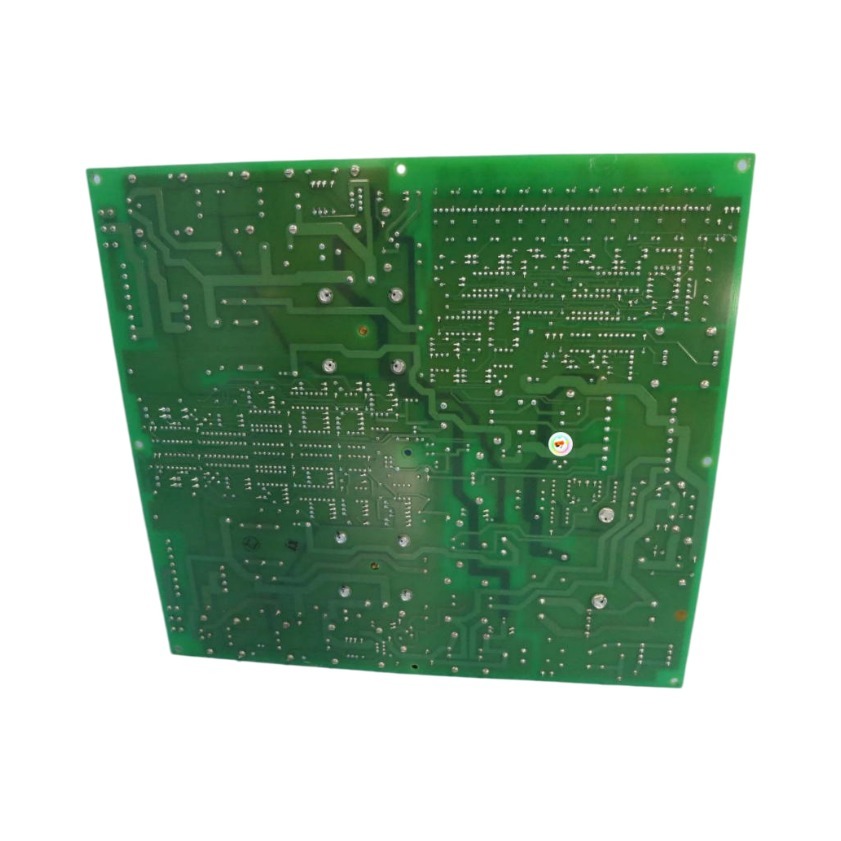

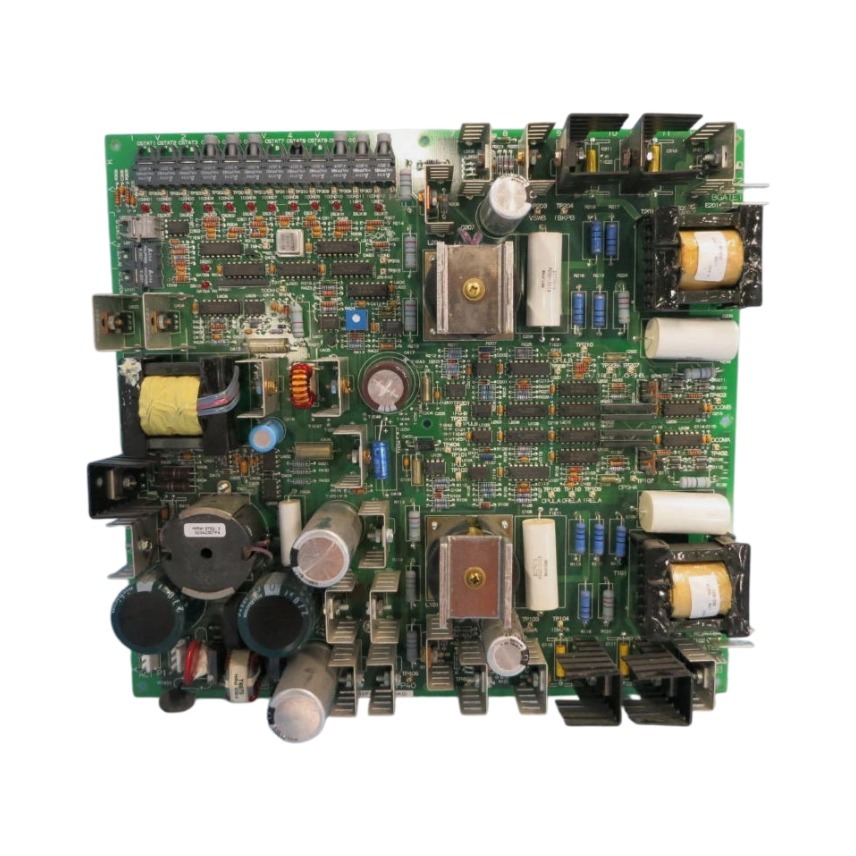

Product Images
Key Features
- Dual Gate Driver Circuits: Two independent gate driver circuits provide accurate pulse delivery for SCR firing, improving the stability and efficiency of static starter operation during motor acceleration.
- Fiber-Optic Communication: With 15 fiber-optic connectors, the board offers reliable high-speed signal transmission while minimizing electrical interference. This design improves communication accuracy in high-voltage industrial environments.
- Integrated Diagnostic Test Points: Thirty onboard test points allow maintenance engineers to perform troubleshooting and diagnostics more efficiently, reducing maintenance time and improving serviceability during equipment inspections.
Engineering Note
For facilities operating GE LS2100 static starter systems, the Gate Pulse Amplifier Board is one of the key components affecting SCR firing accuracy. During preventive maintenance, inspecting or replacing aging amplifier boards can help reduce unexpected starter failures and improve the long-term reliability of turbine startup operations. Selecting the correct board revision is also essential to ensure compatibility with the installed control system.
Global Applications
- Asia Pacific: China, South Korea, Japan, India, Southeast Asia
- Middle East: Saudi Arabia, UAE, Qatar
- North America: United States, Canada
- Europe: Germany, United Kingdom, France, Russia, Turkey
- Latin America: Brazil, Argentina, Mexico
Typical Applications
- Gas Turbine Static Starter Systems
- Power Generation Plants
- Heavy Industrial Motor Starting
- Oil & Gas Facilities
- Petrochemical Plants
- Industrial Drive Systems
- Electrical Power Conversion Equipment
Project Case
A combined-cycle power plant replaced a failed DS200FHVAG1ADA during a scheduled maintenance outage. After installation and system verification, the Mark V control system returned to normal operation without requiring major configuration changes, helping the customer reduce maintenance time and resume power generation as planned.
Our Advantages
- Export to 40+ countries
- Complete after-sales service
- Stable supply chain to ensure continuous supply
- COO, COC and CQ support
- Rapid quotation response
Frequently Asked Questions
Q1: What is the primary function of the DS200FGPAG1AKD?
The board amplifies gate pulses for SCR control, monitors SCR status, and supports reliable power conversion during static starter operation.
Q2: Is the DS200FGPAG1AKD compatible with all GE control systems?
No. This model is specifically designed for the GE LS2100 Static Starter Control System. Compatibility should always be verified using the complete part number and system configuration.
Q3: Can this board be used for maintenance replacement?
Yes. It is commonly supplied for repair and replacement projects where an identical board revision is required to restore system performance.
