IC200ALG321 GE Analog Output Module
| Place of Origin | US |
|---|---|
| Brand Name | GE |
| Model Number | IC200ALG321 |
| Minimum Order Quantity | 1pc |
| Price | $500 |
| Packaging Details | New and original factory, individual box packing |
| Delivery Time | 5-7days |
| Payment Terms | T/T |
| Supply Ability | 999pcs |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | IC200ALG321 GE Analog Output Module | Product ID | IC200ALG321 |
|---|---|---|---|
| Quality | 100% Brand New | Warranty | 1 Year |
| Product Net Length | 250mm | Product Net Width | 50mm |
| Product Net Hight | 300mm | Product Net Weight | 3kg |
| Highlight | GE Analog Output Module,IC200ALG321 Analog Output Module |
||
Product Description

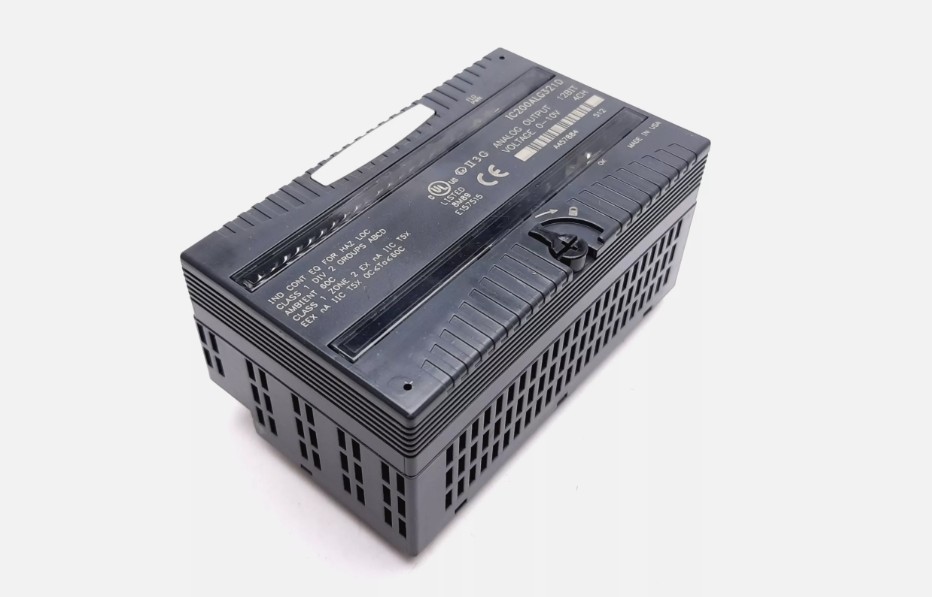

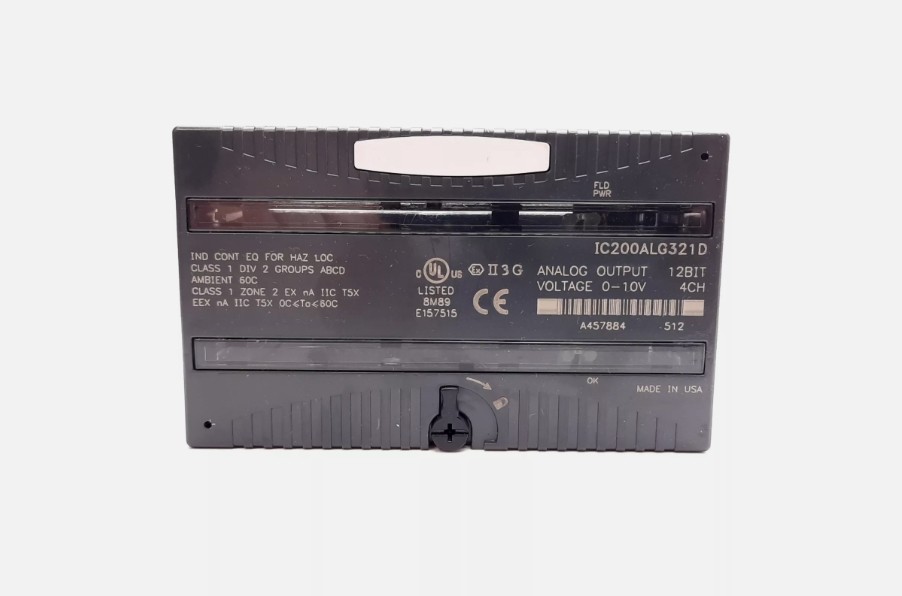

IC200ALG321 GE Analog Output Module
Product Details:
The IC200ALG321 is an analog output module consisting of four analog voltage outputs in the GE Fanuc Versamax Series. The IC200ALG321
has an output voltage range of 0 to 10 VDC with a resistive of 5000 Ohms minimum and a capacitive of 1.0µF maximum. The IC200ALG321
analog module has four channels that are single-ended and in one group. The external power supply of the IC200ALG321 module consists of a
suggested range including ripple of +18 to +30VDC and 160mA max current consumption at the suggested range.The IC200ALG321 module is
setup conveniently with a jumper for the outputs to either keep their last states or default to 0V if backplane power communications are interrupted
or the PLC has quit. It is necessary for external user power not to be interrupted. Outputs will continue to be in default or previous state until the
IC200ALG321 receives different output data from the backplane or field power is removed.
