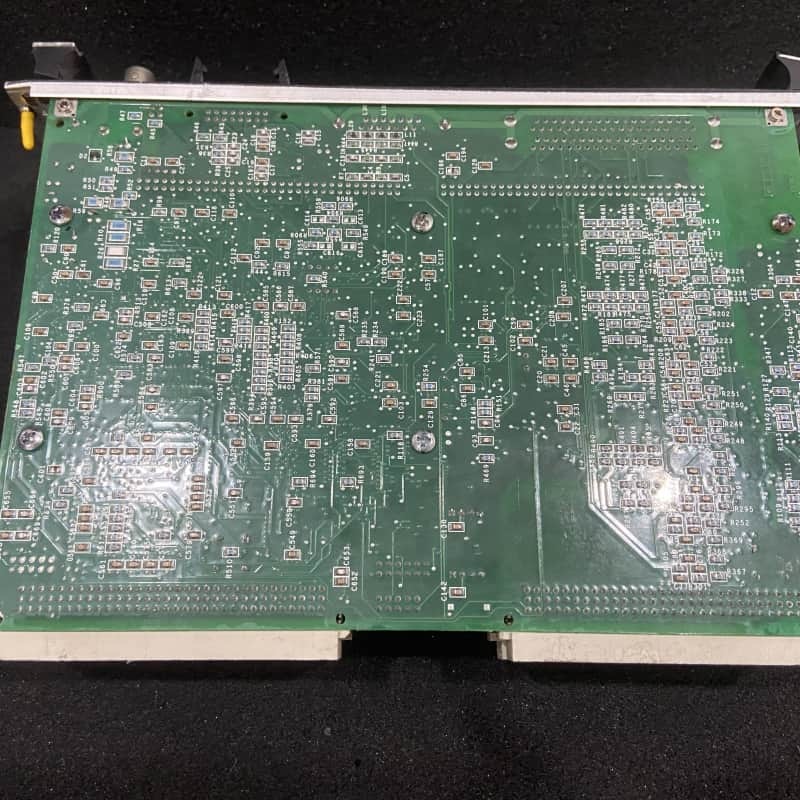

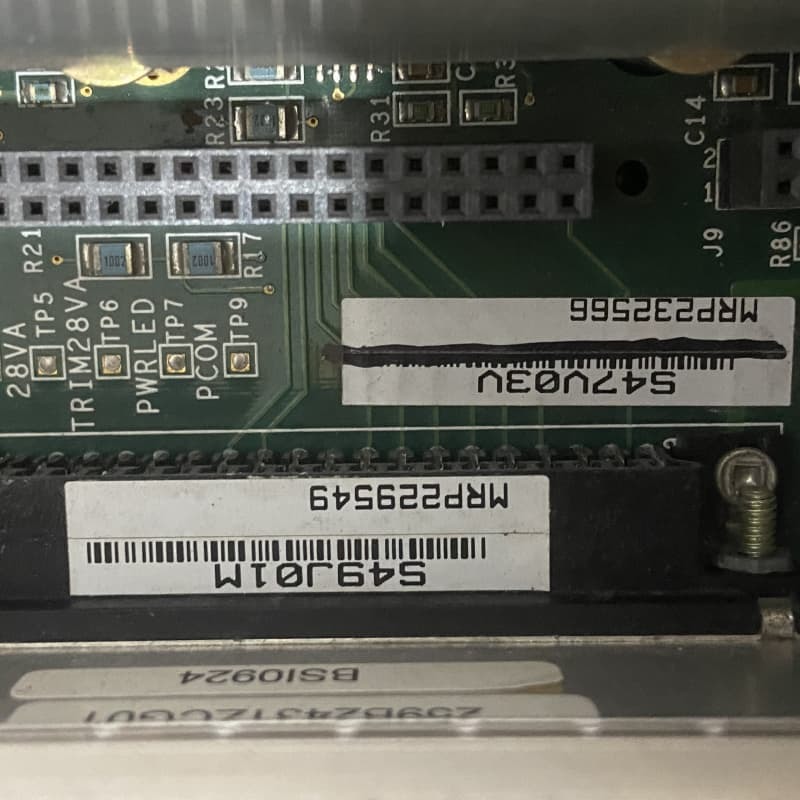

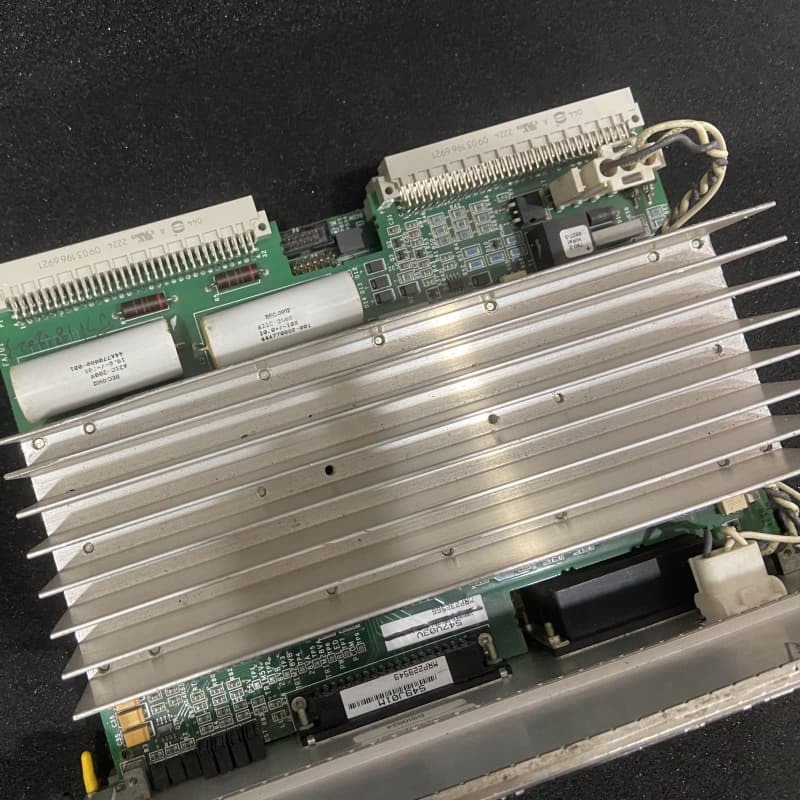

GE IS215VPROH2BD Turbine Protection Board Mark V Series
| Place of Origin | USA |
|---|---|
| Brand Name | GE |
| Certification | COO |
| Model Number | IS215VPROH2BD |
| Minimum Order Quantity | 1 |
| Price | $10000 |
| Delivery Time | 5-7days |
| Payment Terms | T/T |
| Supply Ability | 999 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | GE IS215VPROH2BD Turbine Protection Board | Product ID | IS215VPROH2BD |
|---|---|---|---|
| Series | Mark V | Product Net Width | 100mm |
| Product Net Height | 200mm | Product Net Weight | 2kg |
| Product Net Depth/Length | 330mm | Warranty | 1 Year |
| Highlight | GE Mark V turbine protection board,IS215VPROH2BD control board,GE turbine control system board |
||
Product Description
GE IS215VPROH2BD Turbine Protection Board
Product Specifications
| Attribute | Value |
|---|---|
| Name | GE IS215VPROH2BD Turbine Protection Board |
| Product ID | IS215VPROH2BD |
| Series | Mark V |
| Product Net Width | 100mm |
| Product Net Height | 200mm |
| Product Net Weight | 2kg |
| Product Net Depth/Length | 330mm |
| Warranty | 1 Year |
Product Overview
The GE IS215VPROH2BD is a Turbine Protection Board in the Mark VI Speedtronic series, serving as a core component of an independent emergency overspeed protection system. Designed to enhance turbine safety, it operates alongside TPRO and TREG terminal boards, forming a redundant safety mechanism critical for gas, steam, and wind turbine operations.
As part of a triple-redundant setup, the board manages trip solenoids via the TREG board, ensuring fail-safe emergency shutdowns during overspeed events or emergencies. It features Ethernet connectivity for IONet communication with control modules, enabling real-time monitoring and integration into broader turbine control architectures. With robust hardware and versatile input/output capabilities, it delivers reliable protection across diverse industrial applications.
Key Features
- Triple Redundancy: Part of a three-board system in a dedicated module, isolated from the main control system to ensure independent operation and fault tolerance.
- Emergency Protection: Executes emergency overspeed protection and emergency stop functions, controlling up to three trip solenoids via TREG and TRPG terminal boards; either board can trigger a turbine trip for redundancy.
- Relay Control: Manages 12 relays on TREG, with 9 configured into three voting groups to activate trip solenoids, and supports a secondary TREG via J4 for enhanced backup.
- Versatile I/O: Accepts inputs from passive speed pickups, thermocouples, 4-20 mA signals, and trip interlocks; outputs drive trip solenoids, economizer relays, and breaker commands for protective actions.
- Installation & Diagnostics: Hot-swappable via secure latching connectors; front-panel diagnostic lights verify initialization, with firmware updates recommended for optimal performance.
- Power & Performance: Operates on 70-145V DC input, delivering 5V and 28V DC outputs; high 100 Hz frame rate enables real-time data processing, with MPU cable support for sensors up to 300m away.
- Industrial Durability: Built with robust components to withstand harsh environments, ensuring reliable operation in critical turbine applications.
