IS200EHPAG1A Gas Turbine Control Systems Exciter high voltage pulse amplifier board

Place of Origin US
Brand Name GE
Model Number IS200EHPAG1A
Minimum Order Quantity 1pc
Price $3000
Packaging Details New and original factory, individual box packing
Delivery Time 5-7days
Payment Terms T/T
Supply Ability 999pcs

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
NameIS200DSPXH1CAA IS200EHPAG1A Exciter High Voltage Pulse Amplifier Board GE Turbine Control Product ID IS200EHPAG1A
Series Mark VIe Function Discrete Output Pack
Product Net Depth/Length 330mm Product Net Height 200mm
Product Net Width 100mm Product Net Weight 2kg
Warranty 1year
High Light

IS200EHPAG1A

,

general electric gate pulse amplifier board

,

Gas Turbine Control Systems

Leave a Message
Product Description

IS200EHPAG1A Exciter high voltage pulse amplifier board GE Turbine Control



Product Details:



Exciter high voltage pulse amplifier board IS200EHPAG1A is part of the EX2100 series. The pulse amplifier board's purpose is to directly control



silicon-controlled rectifiers (SCRs). On the actual board, there are multiple connectors, a total of fourteen plug connectors, and a set of three



female board connectors. These plug-connectors have different plug options and quantities. Eight of the connectors are two-plug, four are four-



plug, and two are six-plug connectors. The connectors are located in the upper right corner of the board near four standoffs which can be used for



the attachment of an optional daughterboard.





Located on the front edge of the IS200EHPAG1A there are LED warning lights that have different colors, there is one red LED, five green LEDs,



and sixteen amber-colored LEDs.

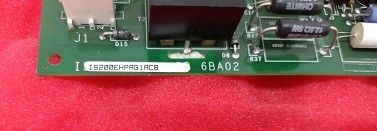

IS200EHPAG1A Gas Turbine Control Systems Exciter high voltage pulse amplifier board 0

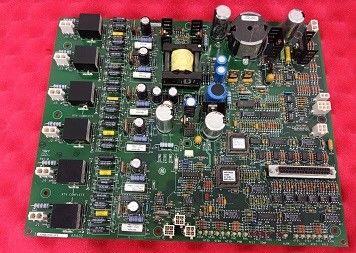

IS200EHPAG1A Gas Turbine Control Systems Exciter high voltage pulse amplifier board 1
