EC119 922-119-000-003-P1000-U1000 Shielded Cable Assembly for Industrial Monitoring Systems
| Place of Origin | Switzerland |
|---|---|
| Brand Name | Proximity Sensor |
| Certification | COO ,COC ,CQ |
| Model Number | EC119 922-119-000-003-P1000-U1000 |
| Minimum Order Quantity | 1 |
| Price | $2999 |
| Delivery Time | 5-7days |
| Payment Terms | T/T |
| Supply Ability | 999 |
Product Details
| Brand | Proximity Sensor | Model Number | EC119 922-119-000-003-P1000-U1000 |
|---|---|---|---|
| Function | Good | Condition | New |
| Warranty | 1 Year | ||
| Highlight | EC119 shielded cable assembly,industrial monitoring cable assembly,PLC shielded cable assembly |
||
Product Description
EC119 922-119-000-003-P1000-U1000 Shielded Cable Assembly for Industrial Monitoring Systems
Product Overview
The EC119 922-119-000-003-P1000-U1000 cable assembly connects compatible industrial sensors to their monitoring equipment. It is used in applications such as vibration measurement, dynamic pressure monitoring and gas turbine ice detection, where the cable must carry measurement signals while protecting the connection from site conditions.
The assembly uses a CG505 threaded connector at one end and flying leads at the other. The threaded end connects to the specified equipment, while the flying leads are wired to the required terminals. This arrangement is useful when the sensor connection is fixed but the other end needs to be connected inside a control cabinet or junction box.
Inside the assembly, the K205A two-wire shielded cable is designed for low-noise signal transmission. Its shielding helps reduce the effect of electrical interference from nearby equipment, while the sealed flexible protective tube adds protection against moisture and physical contact along the covered section.
Application Value
The flexible protective tube helps protect the covered section from moisture and physical contact. This can be useful where cables pass close to machinery or through areas that are difficult to keep dry.
Technical Specifications
| Model Number | EC119 922-119-000-003-P1000-U1000 |
|---|---|
| Other Models | EC119 922-119-000-003-P2000-U2000 EC119 922-119-000-003-P5000-U5000 CE311 444-311-00-023 CA202 144-202-000-205 TQ402 111-402-000-013 A1-B1-C045-D000-E010-F0-G000-H10 TQ402 111-402-000-013 A1-B1-C045-D000-E050-F0-G000-H05 TQ902 111-902-000-011 A1-B1-C70-D2-E1000-F0-G0-H10 IPC704 244-704-000-042 A1-B03-C100-D100-E5-F2000-G0-H0-I0 EA402 913-402-000-013 A1-E090-F0-G000 IQS450 204-450-000-002 A1-B21-H10-I0 |

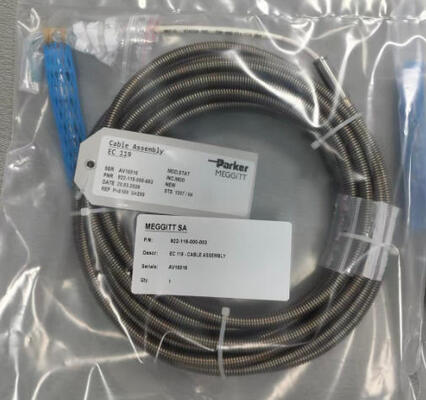

Product Image
Engineering Recommendations
Verify the cable specification and full part number. The listed EC119 922-119-000-003-P1000-U1000 is a custom cable assembly with fixed P-value and U-value parameters. Other EC119 variants carry different P/U suffix codes, cable lengths, and temperature ratings. If this replacement cable needs to fit the existing cable tray, routing, and probe hardware, confirm the complete part number against the machine drawing and original BOM before installation.
Typical Application Scenario
During a planned shutdown, a maintenance team replaces a cable assembly that has worn protection near a machine frame. Before ordering, the team records the old part number, photographs the connector and checks the cable route. When the replacement arrives, the team compares the connector and lead arrangement, then checks the cable for sharp bends, crushing and contact with moving parts. The monitoring channel is tested according to the site's normal procedure before the equipment returns to service.
Global Applications
Asia Pacific
China, South Korea, Japan, India, Southeast Asia
Middle East
Saudi Arabia, UAE, Qatar
North America
United States, Canada
Europe
Germany, United Kingdom, France, Russia, Turkey
Latin America
Brazil, Argentina, Mexico
Typical Applications
- Rotating machinery online protection systems
- Vibration and shaft-position monitoring
- Steam turbine and compressor safety supervision
- Large fan, generator, and high-speed pump condition monitoring
- Oil and gas facilities
- Chemical processing plants
- Power generation facilities
- Metal processing and coal-chemical plants
Our Advantages
- Export to 40+ countries
- Complete after-sales service
- Stable supply chain ensuring continuous availability
- COO, COC, and CQ certification support
- Rapid quotation response
Frequently Asked Questions
1. What Incoterm is the quote based on?
All quotes are based on EXW.
2. What payment terms are accepted?
We accept 100% T/T before shipping.
3. What is the product warranty period?
Warranty for 1 year.
Related Products
Installation Requirements
- Professional installation required for optimal performance and safety
- Ensure proper mounting and adequate ventilation
- Comply with all applicable electrical safety standards
