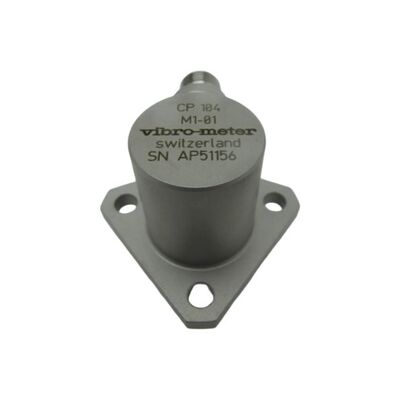

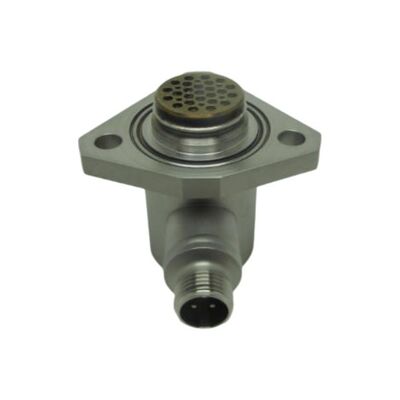

CP104 143-104-000-101 Piezoelectric Pressure Transducer for High-Temperature Dynamic Pressure Measurement
| Place of Origin | Switzerland |
|---|---|
| Brand Name | Proximity Sensor |
| Certification | COO ,COC ,CQ |
| Model Number | CP104 143-104-000-101 |
| Minimum Order Quantity | 1 |
| Price | $35999 |
| Delivery Time | 5-7days |
| Payment Terms | T/T |
| Supply Ability | 999 |
Product Details
| Model Number | CP104 143-104-000-101 | Warranty | 1 Year |
|---|---|---|---|
| Function | Good | Brand | Proximity Sensor |
| Condition | New | ||
| Highlight | Piezoelectric Pressure Transducer high-temperature,CP104 dynamic pressure measurement transducer,Piezoelectric transducer PLC module |
||
Product Description
CP104 143-104-000-101 Piezoelectric Pressure Transducer for High-Temperature Dynamic Pressure Measurement
Product Overview
The CP104 143-104-000-101 piezoelectric pressure transducer is designed to measure fast pressure changes in enclosed systems. It is suitable for long-term monitoring and development testing where pressure pulses and rapid fluctuations need to be recorded accurately.
The sensor uses a VC2 single-crystal sensing element in compression mode. It converts pressure changes into an electrical charge signal, making it suitable for dynamic measurements rather than ordinary steady-pressure readings. With a nominal sensitivity of 190 pC/bar, a frequency response of 2 Hz to 6,000 Hz ±5%, and a nominal dynamic measuring range of 0.00005 to 20 bar, the CP104 can capture pressure changes across a wide range of test conditions. Its low acceleration sensitivity helps limit the effect of mechanical vibration on pressure readings.
The sensor features an electrically insulated case and a hermetically welded Inconel 600 housing for demanding operating environments. It requires no power supply at the sensor itself, but a compatible charge converter is needed to process its output. Cable selection must also match the temperature at the installation site.
Application Value
The CP104 can help engineers examine pressure pulses that may be missed by slower process-pressure instruments. Recorded data can be used to compare operating conditions and investigate unusual pressure changes. Its temperature-resistant construction makes it suitable for selected high-temperature measurement applications.
Technical Specifications
| Model Number | CP104 143-104-000-101 |
|---|---|
| Other Models |
CA901 144-901-000-282; CA901 144-901-000-621; CA901 144-901-000-212; CA901 144-901-000-252; CA901 144-901-000-222; CE311 444-311-00-023; CA202 144-202-000-205; EC119 922-119-000-003-P2000-U2000; EC119 922-119-000-003-P1000-U1000; TQ402 111-402-000-013 A1-B1-C045-D000-E010-F0-G000-H10; TQ902 111-902-000-011 A1-B1-C70-D2-E1000-F0-G0-H10; IPC704 244-704-000-042 A1-B03-C100-D100-E5-F2000-G0-H0-I0; EA402 913-402-000-013 A1-E090-F0-G000; IQS450 204-450-000-002 A1-B21-H10-I0 |
Product Images
Engineering Recommendations
The published CP104 installation guidance lists three M5 Allen screws with a tightening torque of 10 Nm. Follow the correct drawing and installation instructions for the exact version, including the specified washers and screw-locking method where required. Do not tighten by feel or use a different screw length without checking clearance and thread engagement.
Global Applications
Asia Pacific: China, South Korea, Japan, India, Southeast Asia
Middle East: Saudi Arabia, UAE, Qatar
North America: United States, Canada
Europe: Germany, United Kingdom, France, Russia, Turkey
Typical Applications
- Rotating machinery online protection systems
- Vibration and shaft-position monitoring
- Steam turbine and compressor safety supervision
- Large fan, generator, and high-speed pump condition monitoring
- Oil and gas facilities
- Chemical processing plants
- Power generation facilities
- Metal processing and coal-chemical plants
Our Advantages
- Export to 40+ countries
- Complete after-sales service
- Stable supply chain ensuring continuous availability
- COO, COC, and CQ certification support
- Rapid quotation response
Frequently Asked Questions
1. What Incoterm is the quote based on?
All quotes are based on EXW.
2. What payment terms are accepted?
We accept 100% T/T before shipping.
3. What is the product warranty period?
Warranty for 1 year.
Related Products
Installation Requirements
- Professional installation required for optimal performance and safety
- Ensure proper mounting and adequate ventilation
- Comply with all applicable electrical safety standards
