Bently Nevada 330130-040-00-05 Standard Extension Cable for 3300 XL Proximity Monitoring Systems
| Place of Origin | USA |
|---|---|
| Brand Name | Bently Nevada |
| Certification | COO ,COC ,CQ |
| Model Number | Bently Nevada 330130-040-00-05 |
| Document | 3300 XL 8.pdf |
| Minimum Order Quantity | 1 |
| Price | $999 |
| Delivery Time | 5-7days |
| Payment Terms | T/T |
| Supply Ability | 999 |
Product Details
| Brand | Bently Nevada | Model Number | Bently Nevada 330130-040-00-05 |
|---|---|---|---|
| Function | Good | Condition | New |
| Warranty | 1 Year | ||
| Highlight | 3300 XL extension cable,Bently Nevada proximity cable,330130-040-00-05 monitoring cable |
||
Product Description

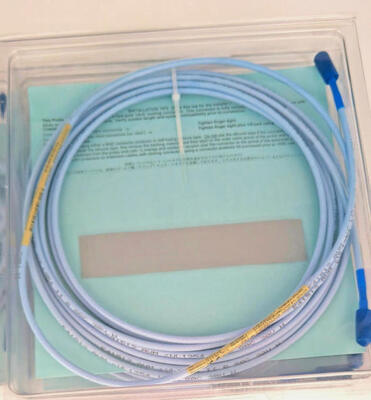

Bently Nevada330130-040-00-05 Standard Extension Cable for 3300 XL Proximity Monitoring Systems
Product Overview
The Bently Nevada 330130-040-00-05 is a 4-meter standard extension cable designed for the 3300 XL proximity measurement system. It connects the proximity probe to the Proximitor sensor, carrying the measurement signal needed to monitor shaft movement and vibration in rotating machinery. Its specified length helps accommodate installations where the probe and sensor are mounted at different positions around the machine. For maintenance teams, using the correct cable is important when replacing a damaged connection, restoring a monitoring channel, or keeping an existing system operating as intended.
Key Features & Benefits
1. 4-Meter Cable for Flexible Installation
The 4-meter length provides room for routing between the probe and sensor without requiring an improvised cable extension. This is useful when monitoring equipment has limited mounting space or when the sensor is installed away from the measurement point. Correct routing also helps avoid unnecessary tension on the cable and its connectors.
2. Designed for Consistent Signal Transmission
The cable is part of the measurement path between the probe and sensor. Its electrical characteristics must match the requirements of the connected system so that shaft movement and vibration can be measured correctly. Replacing it with an unsuitable cable may affect the measurement signal and lead to unreliable monitoring results.
3. Multiple Approval Options
The -05 suffix identifies the version associated with CSA, ATEX and IECEx approvals in available product listings. This can be relevant when selecting components for installations with specific equipment approval requirements. Always verify the applicable certificates and project requirements before installation.
Technical Specifications
| Model Number | Bently Nevada 330130-040-00-05 |
|---|---|
| Other Models | Bently Nevada 330101-00-54-10-02-00 Bently Nevada 330101-00-58-10-02-00 Bently Nevada 330851-02-000-070-50-00-05 Bently Nevada 330704-000-060-10-02-00 Bently Nevada 330703-000-080-10-02-00 |
Product Image
Engineering Recommendations
- Before replacing the cable, confirm that the installed probe, extension cable and Proximitor sensor form a compatible system. The cable length is one part of that check; the connected components and their electrical requirements must also match.
- During installation, inspect both connectors for damage, contamination or loose connections. Route the cable away from avoidable mechanical stress and sources of electrical interference. Do not cut, splice or substitute the cable without confirming that the proposed change is permitted by the system documentation.
- After replacement, compare the monitoring channel readings with the equipment's normal operating values. If the readings remain unstable, inspect the complete measurement path rather than assuming the cable is the only possible cause.
Global Applications
Asia Pacific: China, South Korea, Japan, India, Southeast Asia
Middle East: Saudi Arabia, UAE, Qatar
North America: United States, Canada
Europe: Germany, United Kingdom, France, Russia, Turkey
Latin America: Brazil, Argentina, Mexico
Typical Applications
- Rotating machinery online protection systems
- Vibration & shaft-position monitoring
- Steam turbine and compressor safety supervision
- Large fan, generator and high-speed pump condition monitoring
- Oil & gas facilities
- Chemical processing plants
- Power generation facilities
- Metal processing & coal-chemical plants
Project Case Study
A large industrial facility experienced unstable shaft vibration readings on a high-speed compressor during routine operation. Maintenance engineers inspected the proximity measurement system and found that the extension cable required replacement. The team selected the Bently 330130-040-00-05 4-meter extension cable after confirming compatibility with the installed probe and Proximitor sensor. Following replacement and system checks, the monitoring channel was restored for continued vibration and shaft displacement tracking. Reliable measurement data helped the maintenance team assess equipment condition and plan follow-up inspections before the next scheduled shutdown, reducing the risk of unexpected equipment downtime.
Our Advantages
- Export to 40+ countries
- Complete after-sales service
- Stable supply chain ensuring continuous availability
- COO, COC and CQ certification support
- Rapid quotation response
Frequently Asked Questions
Q1: What is the function of the 330130-040-00-05 extension cable?
It connects a compatible proximity probe to a Proximitor sensor and carries the signal used to monitor shaft movement and vibration. It is one component of the measurement system and does not operate as a standalone monitoring device.
Q2: Can the 330130-040-00-05 be used with any proximity probe?
No. The probe, extension cable and Proximitor sensor must match the requirements of the installed system. Confirm the connected model numbers and system documentation before ordering or replacing the cable.
Q3: Will replacing the extension cable automatically correct unstable vibration readings?
Not necessarily. A damaged or incompatible cable may contribute to unstable readings, but the probe, sensor, connectors and monitoring channel can also be responsible. After replacement, check the entire measurement path if the readings do not return to their expected condition.
Q4: What should be checked during cable installation?
Verify the complete part number and system compatibility, inspect the connectors, and ensure that the cable is routed without excessive tension or sharp bends. After installation, compare the monitoring readings with the equipment's established operating values.
Q5: Why is the correct cable length important?
The cable length must suit the installed measurement system and its specified configuration. An incorrect length or incompatible cable may affect installation or system performance. Confirm the required cable length and the connected components before selecting a replacement.
Available Stock
- IOCN 200-566-000-112
- IOC4T 200-560-000-113
- IOC4T 200-560-000-111
- RPS6U 200-582-200-013
- CPUM 200-595-045-114
- 3500/32M 149986-02
- IS200ESELH3AAA
- IS200EPCTG1AAA
- IS200EXHSG3AEC
- IS220PSVOH1A
Installation Requirements
- Professional installation required for optimal performance and safety
- Ensure proper mounting and adequate ventilation
- Comply with all applicable electrical safety standards
