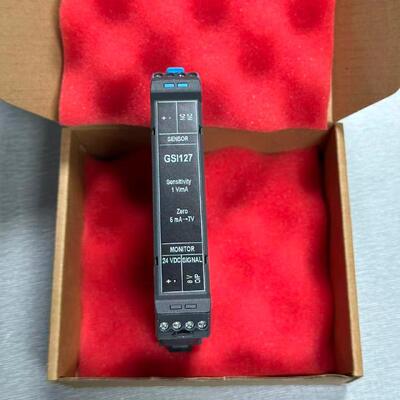

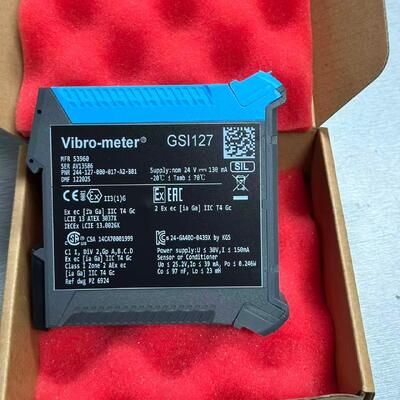

GSI 127 244‑127‑000‑017‑A2‑B01 Galvanic Isolation Module for Rotating Machinery Vibration Monitoring
| Place of Origin | US |
|---|---|
| Brand Name | Proximity Sensor |
| Certification | COO ,COC ,CQ |
| Model Number | GSI 127 244‑127‑000‑017‑A2‑B01 |
| Document | GSI127 datasheet.pdf |
| Minimum Order Quantity | 1 |
| Price | $2500 |
| Delivery Time | 5-7days |
| Payment Terms | T/T |
| Supply Ability | 999 |
Product Details
| Brand | Proximity Sensor | Model Number | GSI 127 244‑127‑000‑017‑A2‑B01 |
|---|---|---|---|
| Function | Good | Condition | New |
| Warranty | 1 Year | ||
| Highlight | GSI 127 Galvanic Isolation Module,Rotating Machinery Vibration Monitoring Module,PLC Galvanic Isolation Module |
||
Product Description
Product Overview
GSI 127 244‑127‑000‑017‑A2‑B01 is a dedicated galvanic isolation module for rotating‑machinery vibration monitoring systems. It creates electrical separation between field‑installed sensors and control‑room monitoring circuits to eliminate ground‑loop disturbance, avoiding signal distortion caused by heavy electromagnetic interference generated by on‑site motors and compressors. With stable signal transfer and isolation protection, it maintains clean measurement signals and allows operators to obtain accurate real‑time equipment operating data.
This DIN‑rail‑mounted module works with most mainstream vibration sensors and proximity probes. It processes incoming field signals and transmits purified measurement data to monitoring hardware. Its built‑in isolation structure prevents high‑voltage cross‑interference, so faults on one sensor channel will not spread and disrupt the whole measurement chain.
The unit supports fast on‑site replacement during maintenance work. It accepts both voltage‑mode and current‑mode signal transmission, well‑suited for long‑distance field wiring layouts. Widely deployed on turbines, centrifugal compressors and other key rotating assets within power generation and petrochemical facilities. It keeps measurement outputs consistent even under harsh plant‑site electrical conditions and safeguards the complete monitoring signal chain.
Key Technical Parameters
- 4 kVRMS galvanic isolation strength between sensor side and monitor side, blocks common-mode voltage spikes effectively
- Dual signal output, supports voltage and current transmission, adapts to long-distance field wiring
- Working bandwidth DC to 20 kHz, signal linear error less than 0.5%, guarantees accurate vibration signal collection
- Operating temperature range from -20°C to 70°C, suitable for cabinet installation in industrial workshops
- DIN rail mounting design, quick plug-in replacement without complex wiring modification
Application Benefits
It isolates electrical interference between field sensors and monitoring equipment to stop signal jumps and data drift. Stable and clean signal outputs reduce false alarms and deliver reliable data for machine condition tracking. It prevents local sensor faults from spreading to damage the whole monitoring rack, protecting your high-value monitoring hardware. Flexible signal compatibility cuts extra conversion hardware cost during system upgrade and retrofit, supporting predictive maintenance for rotating machinery and lowering losses caused by unplanned shutdowns.
Technical Specifications
| Parameter | Value |
|---|---|
| Model Number | GSI 127 244‑127‑000‑017‑A2‑B01 |
| Other Models | CE311 444-311-00-023 CV213 110-213-000-012 CA202 144-202-000-205 TQ402 111-402-000-013 A1-B1-C045-D000-E010-F0-G000-H10 TQ402 111-402-000-013 A1-B1-C045-D000-E050-F0-G000-H05 TQ902 111-902-000-011 A1-B1-C70-D2-E1000-F0-G0-H10 IPC704 244-704-000-042 A1-B03-C100-D100-E5-F2000-G0-H0-I0 EA402 913-402-000-013 A1-E090-F0-G000 IQS450 204-450-000-002 A1-B21-H10-I0 |
Product Images
Engineering Recommendations
If your site operates turbines or high‑speed compressors with mixed sensor types, select this GSI127 244‑127‑000‑017‑A2‑B01 module. It fits most common vibration, dynamic‑pressure and proximity sensors. Be sure to reserve spare DIN‑rail slots in the cabinet; this permits urgent swap‑out without re‑wiring during unexpected equipment issues.
Global Applications
- Asia Pacific: China, South Korea, Japan, India, Southeast Asia
- Middle East: Saudi Arabia, UAE, Qatar
- North America: United States, Canada
- Europe: Germany, United Kingdom, France, Russia, Turkey
- Latin America: Brazil, Argentina, Mexico
Typical Applications
- Rotating machinery online protection systems
- Vibration & shaft-position monitoring
- Steam turbine and compressor safety supervision
- Large fan, generator and high-speed pump condition monitoring
- Oil & gas facilities
- Chemical processing plants
- Power generation facilities
- Metal processing & coal-chemical plants
Project Case Study
This exact GSI 127 unit 244‑127‑000‑017‑A2‑B01 has been fitted to centrifugal compressor packages at a Southeast‑Asian petrochemical complex. The workshop suffers strong electric noise from large drive motors. After installation, vibration‑signal fluctuation was significantly reduced. The monitoring system delivers steady 24‑hour equipment‑health readings and helps prevent unplanned compressor shutdown events.
Our Advantages
- Export to 40+ countries
- Complete after-sales service
- Stable supply chain ensuring continuous availability
- COO, COC and CQ certification support
- Rapid quotation response
Frequently Asked Questions
Q1: What factors will affect the effective frequency response of this velocity transducer in field installation?
A1: Cable length and cable capacitance are primary influencing factors. Excessively long signal cables will introduce extra capacitance and roll‑off high‑frequency components. Besides, poor cable shielding, improper grounding methods and severe ambient electromagnetic noise will also alter the actual effective frequency response. You should follow wiring specifications and keep cables within recommended length limits to retain full‑range measurement performance.
Q2: Does this GSI 127 module pair well with existing vibration sensors from common industrial measurement chains?
A2: Its 4 kVRMS galvanic isolation greatly suppresses noise interference. For optimal reading stability, you still need to physically separate sensor cables from high‑power power cables.
Q3: Can this module resolve signal jumping caused by heavy electromagnetic noise inside power‑plant workshops?
A3: Professional vibration calibration table can be used for regular inspection. Apply standard fixed-frequency and fixed-amplitude vibration excitation, compare the actual output voltage with the nominal sensitivity parameter. If the error exceeds the ±5% tolerance range, it indicates sensitivity drift, requiring calibration or sensor replacement.
Related Products
Installation Requirements
- Professional installation required for optimal performance and safety
- Ensure proper mounting and adequate ventilation
- Comply with all applicable electrical safety standards
