GE IS200ECTBG1A Exciter Contact Terminal Board
| Place of Origin | USA |
|---|---|
| Brand Name | GE |
| Certification | COO ,COC ,CQ |
| Model Number | GE IS200ECTBG1A |
| Document | GE IS200ECTBG1A Exciter Con...rd.pdf |
| Minimum Order Quantity | 1 |
| Price | $2700 |
| Delivery Time | 5-7days |
| Payment Terms | T/T |
| Supply Ability | 999 |
Product Details
| Brand | GE | Model Number | GE IS200ECTBG1A |
|---|---|---|---|
| Function | Good | Condition | New |
| Warranty | 1 Year |
Product Description
GE IS200ECTBG1A Exciter Contact Terminal Board
Product Overview
IS200ECTBG1A ECTBG1 terminal board for GE EX2100 excitation control, redundant control only, 2-out-of-3 trip relay voting circuit, Mark VIe turbine control spare part, UL & CSA certified.
Application Value
- Acts as signal interface between EMIO board and field lockout circuits, collects multiple auxiliary contact signals and simplifies wiring inside excitation cabinet.
- Centralizes trip outputs and general Form‑C contact outputs for hardware routing of unit lockout and status feedback signals
Technical Specifications
| Model Number | GE IS200ECTBG1A |
|---|---|
| Other Models |
IS200EISBH1AAB IS200EPDMG1BAA IS200ERBPG1A IS200ESELH1AAA IS200EACFG2ABC IS200EDCFG1A |

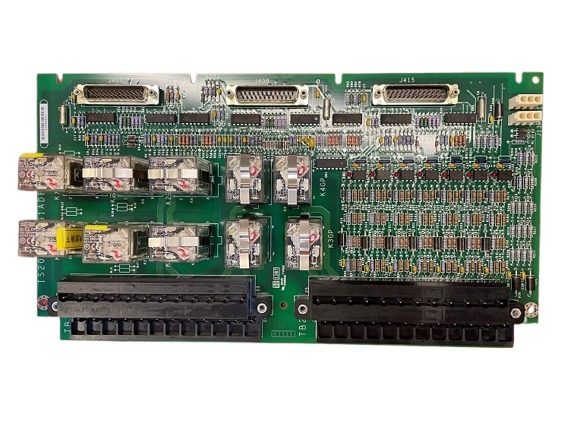

Product Images
Engineering Recommendations
- Cut off 125 Vdc customer power and 70 Vdc contact supply, discharge residual voltage and take ESD protection before board removal or installation, to prevent component damage from static electricity.
- During unit overhaul, test relay operation and contact resistance of the 2-out-of-3 voting circuit. Inspect backplane connectors for oxidation and loose contacts.
- Perform full trip loop test after replacement. Confirm correct 2-out-of-3 voting logic before returning the unit to service.
Global Applications
Asia Pacific: China, South Korea, Japan, India, Southeast Asia
Middle East: Saudi Arabia, UAE, Qatar
North America: United States, Canada
Europe: Germany, United Kingdom, France
Latin America: Brazil, Argentina, Mexico
Typical Applications
- thermal power
- gas power stations
- power plant control system maintenance
Our Advantages
- Export to 40+ countries
- Complete after-sales service
- Stable supply chain ensuring continuous availability
- COO, COC and CQ certification support
- Rapid quotation response
Frequently Asked Questions
Q1: What is the difference between IS200ECTBG1A and IS200ECTBG2?
A: IS200ECTBG1A is only for redundant EX2100 excitation control system, it supports 2-out-of-3 relay voting trip circuit. IS200ECTBG2 is designed for simplex control, no 2-out-of-3 voting function. These two boards cannot be cross-replaced.
Q2: Does IS200ECTBG1A have built-in surge suppression for inductive loads?
A: No. The board does not come with internal surge suppression. Customers must install external suppression components for inductive load circuits to protect relay contacts and avoid false tripping.
Q3: What test should be carried out after replacing IS200ECTBG1A on site?
A: After installation, complete trip loop commissioning test is required. Verify the 2-out-of-3 relay voting logic. Confirm all trip and lockout signals work normally before putting the unit back into operation.
Available Stock
- IOCN 200-566-000-112
- IOC4T 200-560-000-113
- IOC4T 200-560-000-111
- RPS6U 200-582-200-013
- CPUM 200-595-045-114
- 3500/32M 149986-02
- IS200ESELH3AAA
- IS200EPCTG1AAA
- IS200EXHSG3AEC
- IS220PSVOH1A
Installation Requirements
- Professional installation required for optimal performance and safety
- Ensure proper mounting and adequate ventilation
- Comply with all applicable electrical safety standards
