620-0036 Processor Power Supply for IPC 620 Control System Applications
| Place of Origin | USA |
|---|---|
| Certification | COO ,COC ,CQ |
| Model Number | 620-0036 |
| Minimum Order Quantity | 1 |
| Price | $1000 |
| Delivery Time | 5-7days |
| Payment Terms | T/T |
| Supply Ability | 999 |
Product Details
| Warranty | 1 Year | Model Number | 620-0036 |
|---|---|---|---|
| Function | Good | Condition | New |
| Highlight | 620-0036 processor power supply,IPC 620 control system power supply,PLC modules power supply with warranty |
||
Product Description

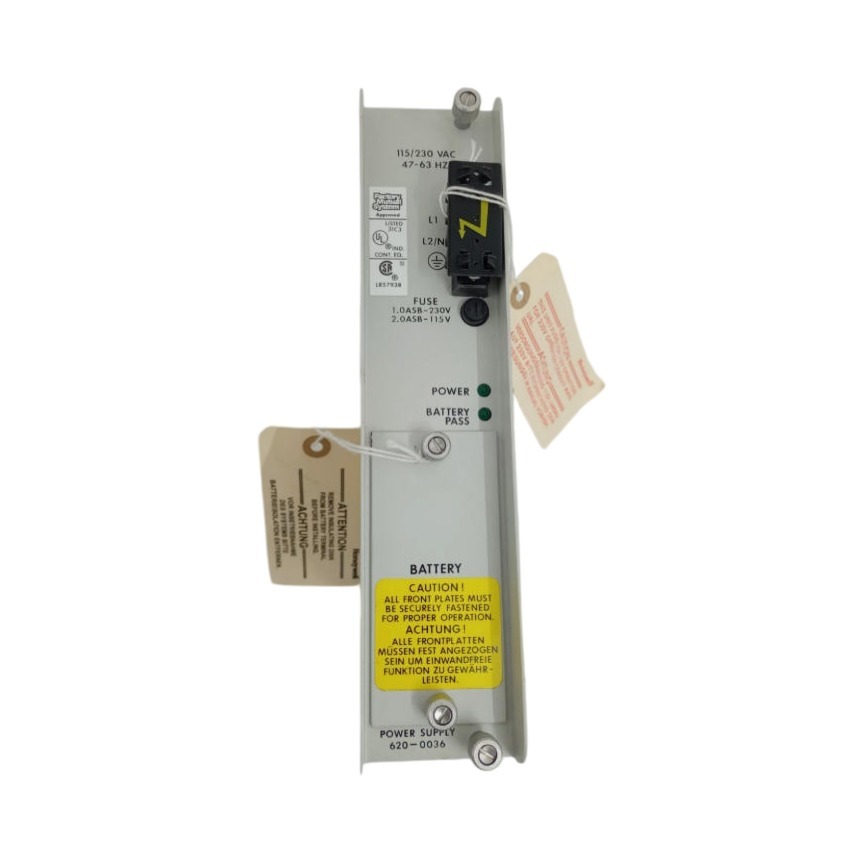

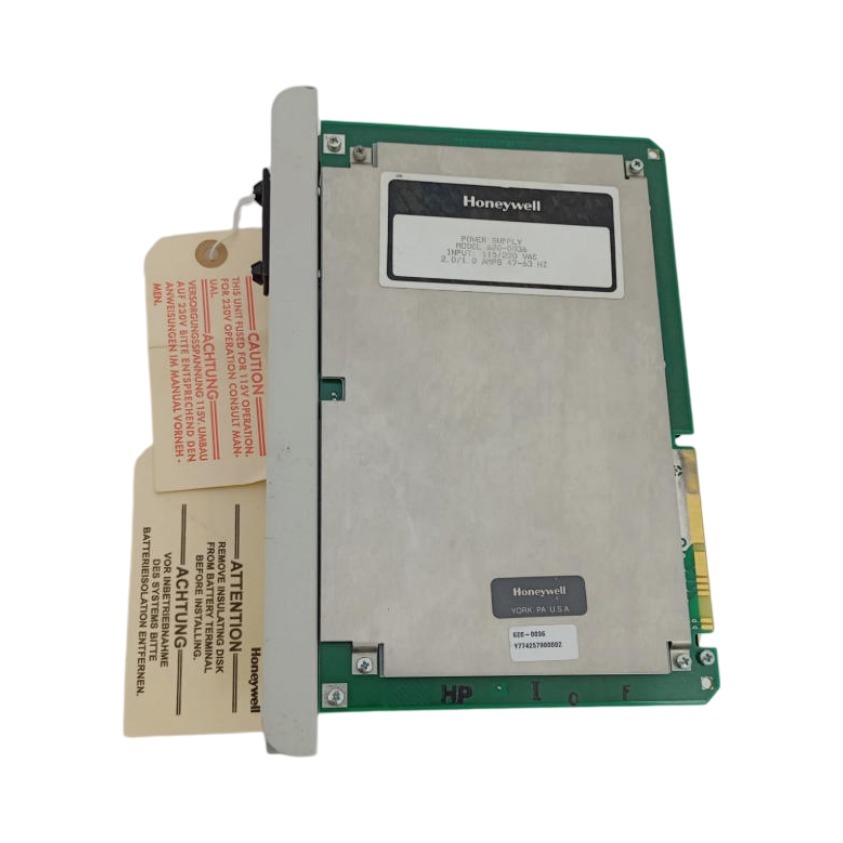

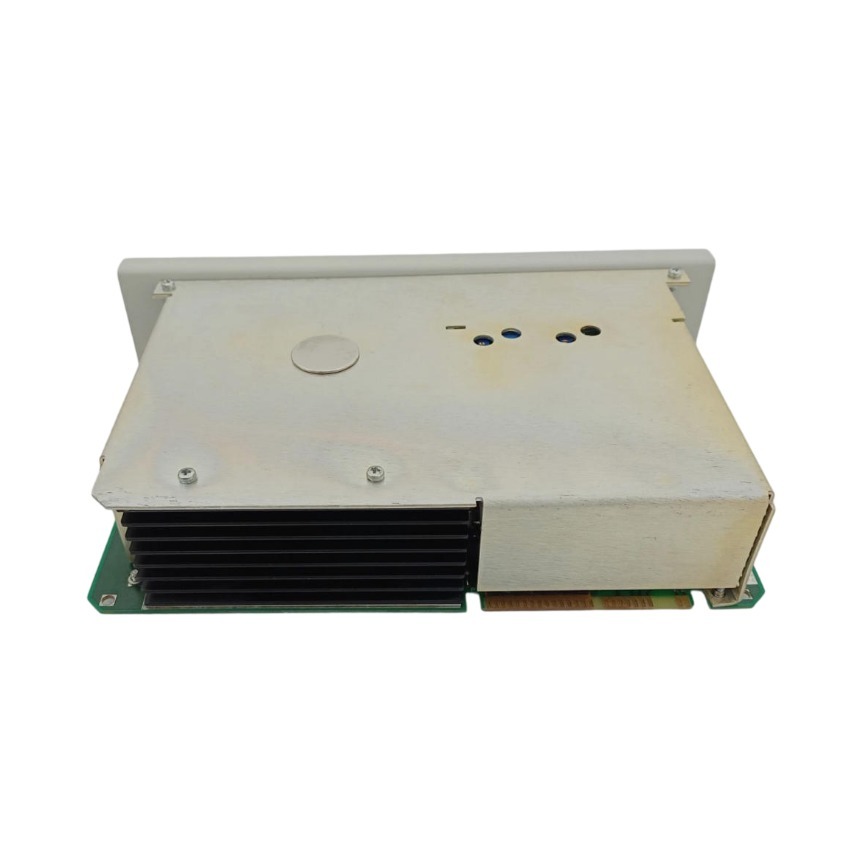

620-0036 Processor Power Supply for IPC 620 Control System Applications
Product Overview
The 620-0036 is a processor power supply module designed for the IPC 620-20/25 and 620-30/35 programmable controller systems. It provides the operating power required by the processor and associated control system components. The module supports 115 VAC or 230 VAC input, making it suitable for different plant power configurations.
In addition to its main power-supply function, the 620-0036 includes a lithium battery compartment that provides backup power for the register and register modules during power interruptions. This makes the module an important part of maintaining both system operation and retained control-system data.
Application Value
- Stable Power for Legacy Control Systems: Provides the processor power required by compatible IPC 620 systems, helping maintain stable operation of established control architectures without requiring a redesign of the existing rack.
- Power and Memory Backup in One Module: The integrated battery compartment provides backup support for the register and register modules when the main power supply is interrupted, adding an important layer of continuity for systems that need to retain register-related information during power loss.
Technical Specifications
| Model Number | 620-0036 |
|---|---|
| Other Models | 620-0041, 620-0073, 620-0080, 620-1633, 620-1690, 621-0025RC |
Product Images
Key Features & Benefits
- 115/230 VAC Input Flexibility: Supports both 115 VAC and 230 VAC input, allowing it to be used with different plant power configurations while providing the required power for compatible IPC 620 processor systems.
- Integrated Battery Backup Compartment: Includes a dedicated lithium battery compartment for backup of the register and register modules, helping preserve retained system information during a loss of primary power.
Engineering Note
Before replacing a 620-0036, engineers should first confirm the IPC 620 system model and rack position. Available documentation identifies the module for IPC 620-20/25 and 620-30/35, with the 620-25 installation listed at slots H/I and the 620-35 installation at slots J/K.
The 115/230 VAC input configuration should also be checked against the site's actual power supply before installation. Because the module incorporates a battery compartment, the condition and specification of the existing backup battery should be considered as part of a replacement or maintenance project.
Global Applications
- Asia Pacific: China, South Korea, Japan, India, Southeast Asia
- Middle East: Saudi Arabia, UAE, Qatar
- North America: United States, Canada
- Europe: Germany, United Kingdom, France, Russia, Turkey
- Latin America: Brazil, Argentina, Mexico
Typical Applications
- Fail Safe Control (FSC) systems
- Safety Instrumented Systems
- Industrial process safety
- Emergency shutdown applications
- Oil & gas facilities
- Chemical processing plants
- Power generation facilities
- Existing safety control system maintenance
- Legacy control system lifecycle support
Project Case
An established IPC 620 control system required replacement of its processor power supply during scheduled maintenance. The 620-0036 was selected to maintain the existing power-supply configuration while retaining the battery-backup arrangement for the register and register modules.
Our Advantages
- Export to 40+ countries
- Complete after-sales service
- Stable supply chain to ensure continuous supply
- COO, COC and CQ support
- Rapid quotation response
Frequently Asked Questions
What input voltage does the 620-0036 support?
It supports 115 VAC and 230 VAC input, with the applicable configuration determined by the system installation.
Which IPC 620 systems use the 620-0036?
Available product documentation identifies it for the IPC 620-20/25 and IPC 620-30/35 systems.
Does the 620-0036 include battery backup?
Yes. The module includes a lithium battery compartment intended to provide backup for the register and register modules.
Where is the 620-0036 installed?
For the 620-25 system, the documented position is slots H/I; for the 620-35 system, it is slots J/K.
Available Stock
- IPC704 244-704-000-042 A1-B03-C100-D100-E5-F2000-G0-H0-I0
- IPC704 244-704-000-042 A2-B03-C10-D100-E10-F5000-G0-H0-I0
- MPC4 200-510-071-113
- 3500/22M 288055-01
- 3500/42M 176449-02
- 3500/32M 149986-02
- 133442-01
- 146031-01
- 106M1081-01
- 3500/22M 138607-01
- 3500/15 106M1079-01
- 9907-147
Installation Requirements
- Professional installation required for optimal performance and safety
- Ensure proper mounting and adequate ventilation
- Comply with all applicable electrical safety standards
