10100/2/1 Horizontal Bus Driver | HBD Module for FSC I/O Racks
| Place of Origin | USA |
|---|---|
| Certification | COO ,COC ,CQ |
| Model Number | 10100/2/1 |
| Minimum Order Quantity | 1 |
| Price | $1000 |
| Delivery Time | 5-7days |
| Payment Terms | T/T |
| Supply Ability | 999 |
Product Details
| Warranty | 1 Year | Model Number | 10100/2/1 |
|---|---|---|---|
| Function | Good | Condition | New |
| Highlight | Horizontal Bus Driver HBD module,FSC I/O Racks bus driver,PLC Modules horizontal driver |
||
Product Description

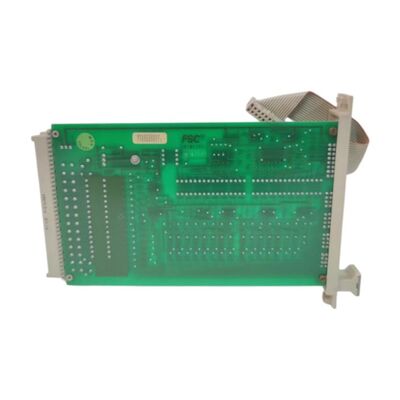

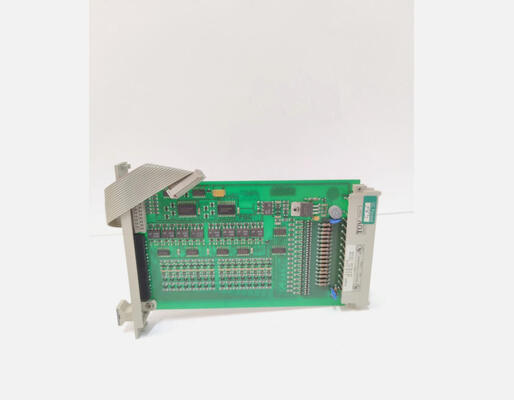

10100/2/1 Horizontal Bus Driver | HBD Module for FSC I/O Racks
Product Overview
The 10100/2/1 is a Horizontal Bus Driver (HBD) module designed for FSC I/O rack applications. It provides the connection between the vertical bus and the horizontal bus, helping transfer control and addressing signals between the central part and I/O modules.
The module is installed in the I/O rack and works with a compatible flat cable. Depending on the system configuration, the 10100/2/1 can be used for non-redundant I/O, redundant I/O with one rack per HBD, or redundant I/O with two racks per HBD.
Key Benefits
- Horizontal Bus Driver designed for FSC I/O rack systems
- Connects the vertical bus with the horizontal bus
- Supports non-redundant and redundant I/O configurations
- Compatible with A1, A21, and A22 flat cable configurations
- Supports rack address selection through the related address-setting modules
Technical Specifications
| Model Number | 10100/2/1 |
| Other Models | 10001/R/1, 10001/R/1, 10004/1/1, 10012/1/2, 10024/H/F, 10018/E/1 |
Product Images
Engineering Note
Before replacing a 10100/2/1, engineers should identify whether the existing I/O configuration is non-redundant or redundant and confirm the corresponding A1, A21, or A22 cable arrangement.
The rack address configuration should also be checked through the relevant address-setting modules. During maintenance, it is recommended to inspect the connectors and flat cables at the same time, as poor connections or damaged cables can also affect bus communication.
Global Applications
- Asia Pacific: China, South Korea, Japan, India, Southeast Asia
- Middle East: Saudi Arabia, UAE, Qatar
- North America: United States, Canada
- Europe: Germany, United Kingdom, France, Russia, Turkey
- Latin America: Brazil, Argentina, Mexico
Typical Applications
- Fail Safe Control (FSC) systems
- Safety Instrumented Systems
- Industrial process safety
- Emergency shutdown applications
- Oil & gas facilities
- Chemical processing plants
- Power generation facilities
- Existing safety control system maintenance
- Legacy control system lifecycle support
Project Case: I/O Rack Bus Driver Replacement
An industrial control system required the replacement of an HBD module in an existing I/O rack. Engineers checked the rack configuration and confirmed the required flat cable arrangement before selecting the 10100/2/1. After installation, the bus connections and rack addressing were verified. System testing confirmed stable communication between the central part and I/O modules, allowing the existing control system to continue normal operation.
Our Advantages
- Export to 40+ countries
- Complete after-sales service
- Stable supply chain to ensure continuous supply
- COO, COC and CQ support
- Rapid quotation response
Frequently Asked Questions
1. What is the 10100/2/1 used for?
The 10100/2/1 is a Horizontal Bus Driver used in FSC I/O racks. It connects the vertical bus to the horizontal bus and supports communication between the central part and I/O modules.
2. Which flat cables can be used with the 10100/2/1?
The module can be used with A1, A21, or A22 flat cable configurations. A1 is used for non-redundant I/O, while A21 and A22 are used for redundant I/O configurations.
3. Can the 10100/2/1 be used in redundant I/O systems?
Yes. When matched with the appropriate flat cable, the 10100/2/1 can support redundant I/O configurations with either one rack or two racks per HBD.
4. What should be checked before replacing a 10100/2/1?
Engineers should confirm the exact module model, flat cable type, rack configuration, and address-setting arrangement before replacement. This helps ensure that the new module matches the existing system architecture.
