ABB TU830V1 Extended Module Termination Unit for S800 I/O Systems
| Place of Origin | Switzerland |
|---|---|
| Brand Name | ABB |
| Certification | COO ,COC ,CQ |
| Model Number | TU830V1 |
| Document | TU830V1.pdf |
| Minimum Order Quantity | 1 |
| Price | $255 |
| Delivery Time | 5-7days |
| Payment Terms | T/T |
| Supply Ability | 999 |
Product Details
| Product ID | ABB TU830V1 | Brand | ABB |
|---|---|---|---|
| Model Number | TU830V1 | Warranty | 1 Year |
| Function | Good | Condition | New |
Product Description
ABB TU830V1 Extended Module Termination Unit for S800 I/O Systems
Product Overview
The ABB TU830V1 Extended Module Termination Unit (MTU) is designed for ABB S800 I/O systems, providing a reliable interface between compatible I/O modules and field wiring. Featuring 2 × 16 signal terminals and rated for 50 V applications, the TU830V1 serves as a modular termination unit that supports organized field connections within distributed automation systems.
As part of the ABB S800 I/O platform, the TU830V1 helps create a structured wiring layout for industrial control systems. Its extended MTU design provides a practical connection point for field signals, making installation, routine maintenance, and module replacement more straightforward while supporting the long-term reliability of automation systems.
Technical Specifications
| Model Number | 3BSE013234R1 |
|---|---|
| Other Models | 3BSE016237R1 3BSE010699R1 3BSE001693R2 3BSE032400R1 3BSE003828R1 |

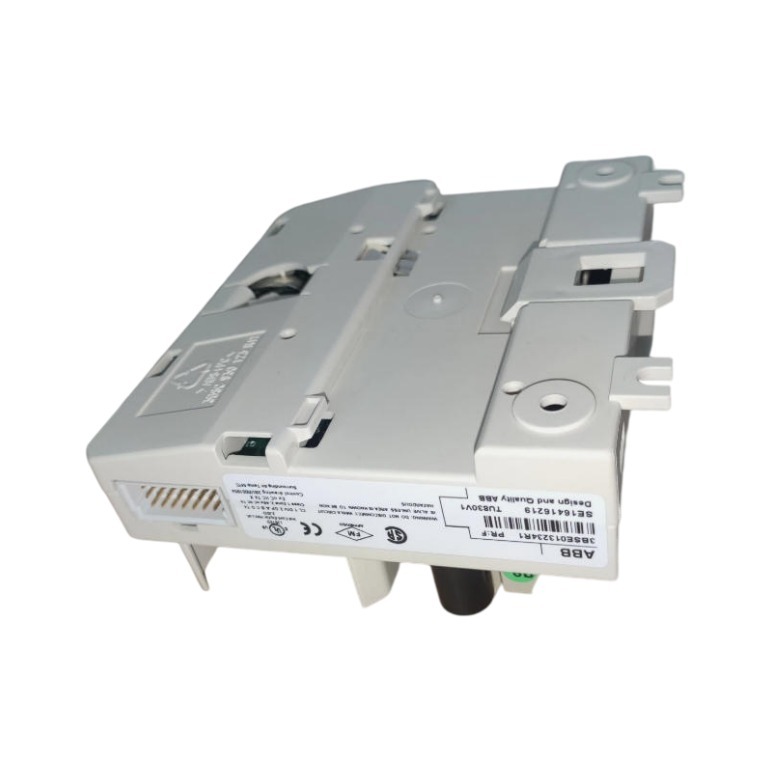

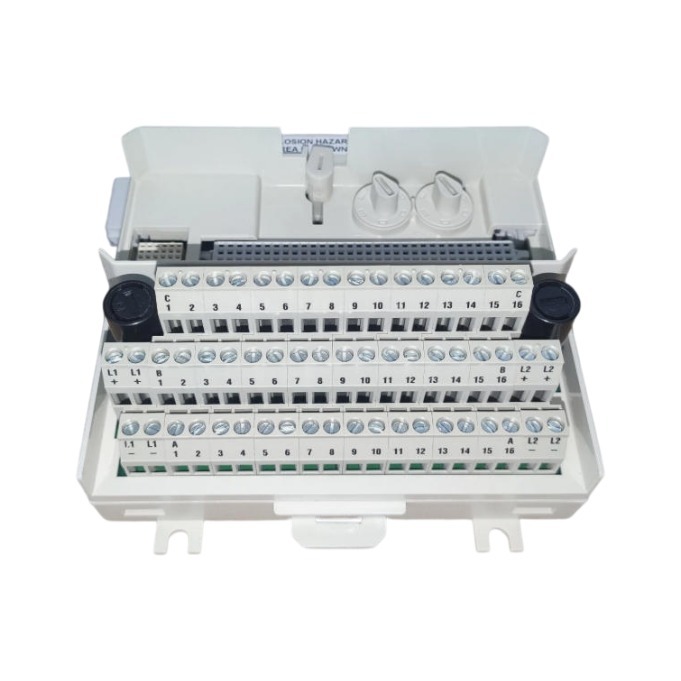

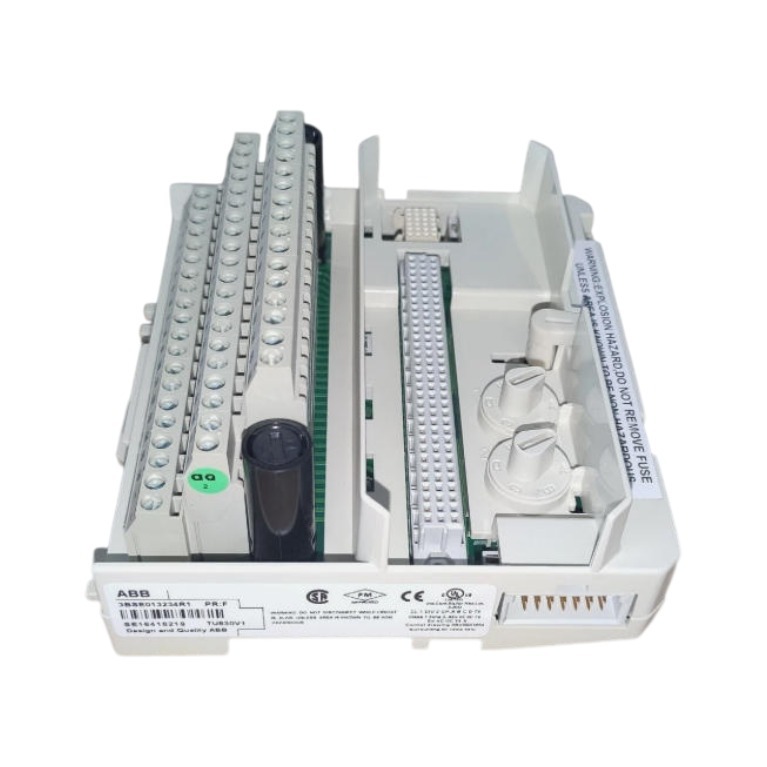

Product Images
Key Features
- Organized Field Wiring: The 2 × 16 signal terminals provide an organized termination point for field wiring, helping engineers manage multiple signal connections more efficiently during installation and maintenance.
- Modular System Integration: As an Extended Module Termination Unit, the TU830V1 is designed to work with ABB S800 I/O modules, allowing compatible components to be integrated through a standardized termination interface.
- Reliable Connection for Industrial Automation: Designed for ABB distributed control systems, the TU830V1 provides dependable field wiring termination for industrial automation applications where stable electrical connections are essential for day-to-day operation.
Engineering Note
Module termination units play an important role in organizing field wiring within distributed control systems. Selecting the correct MTU for the corresponding S800 I/O module helps maintain proper wiring configuration and simplifies future maintenance or replacement work.
Global Applications
- Asia Pacific: China, South Korea, Japan, India, Southeast Asia
- Middle East: Saudi Arabia, UAE, Qatar
- North America: United States, Canada
- Europe: Germany, United Kingdom, France, Russia, Turkey
- Latin America: Brazil, Argentina, Mexico
Typical Applications
- Gas Turbine Static Starter Systems
- Power Generation Plants
- Heavy Industrial Motor Starting
- Oil & Gas Facilities
- Petrochemical Plants
- Industrial Drive Systems
- Electrical Power Conversion Equipment
Project Case
During the maintenance of an ABB S800 I/O system, the TU830V1 Extended Module Termination Unit was installed to replace an existing MTU. The replacement restored organized field wiring connections and allowed maintenance work to be completed efficiently with minimal impact on system operation.
Our Advantages
- Export to 40+ countries
- Complete after-sales service
- Stable supply chain to ensure continuous supply
- COO, COC and CQ support
- Rapid quotation response
Frequently Asked Questions
Q1: What is the primary function of the ABB TU830V1?
The TU830V1 is an Extended Module Termination Unit (MTU) that provides 2 × 16 signal terminals for connecting field wiring to compatible ABB S800 I/O modules.
Q2: Which ABB systems is the TU830V1 compatible with?
The TU830V1 is designed for ABB S800 I/O systems and is used within automation platforms such as ABB 800xA and Advant Open Control System (Advant OCS).
Q3: Is the TU830V1 suitable for maintenance and replacement projects?
Yes. The TU830V1 is commonly used as a replacement or spare module in ABB S800 I/O installations to maintain reliable field wiring connections and support ongoing system operation.
Installation Requirements
- Professional installation required for optimal performance and safety
- Ensure proper mounting and adequate ventilation
- Comply with all applicable electrical safety standards
