ABB KVC758A124 3BHE021951R1024 Programmable Embedded Controller Baseplate with High-Speed Digital Outputs and Fiber Optic Communication for Deterministic Control
| Place of Origin | Sweden |
|---|---|
| Brand Name | ABB |
| Model Number | KVC758A124 |
| Minimum Order Quantity | 1 |
| Price | $999 |
| Delivery Time | 5-7days |
| Payment Terms | T/T |
| Supply Ability | 999 |
Product Details
| Product ID | ABB KVC758A124 3BHE021951R1024 Programmable Embedded Controller Baseplate | Brand | ABB |
|---|---|---|---|
| Series | 3BHE021951R1024 | Model Number | KVC758A124 |
| Warranty | 1 Year | Function | Good |
| Condition | New |
Product Description
ABB KVC758A124 3BHE021951R1024 Programmable Embedded Controller Baseplate
The ABB KVC758A124 3BHE021951R1024 is a structural core component of the AC 800PEC control system, serving as the physical and electrical base platform for high‑performance embedded controllers. Designed for nanosecond to microsecond real‑time control in power electronics, it supports high‑speed digital outputs for IGBT triggering, analog feedback acquisition (e.g., DC voltage and current), and fiber optic communication for submodule status exchange. As the backbone of valve or drive control stations, it addresses critical challenges in flexible power transmission and high‑power drives, including deterministic control, low jitter, and high channel density. Typical applications include HVDC Light® offshore converter stations (as a Valve Base Controller baseplate), ACS6000 medium‑voltage drives in steel mills, and as a critical spare part for STATCOM or legacy HVDC systems to prevent backplane‑related failures and meet grid response requirements.
Technical Specifications
|
Module Type
|
Baseplate modules
|
|
Voltage
|
220 V
|
|
Function Type
|
Controller Backplane
|
|
Dimensions
|
300 × 100 × 88.8 mm
|
|
Operating Temp.
|
-20°C to 70°C
|

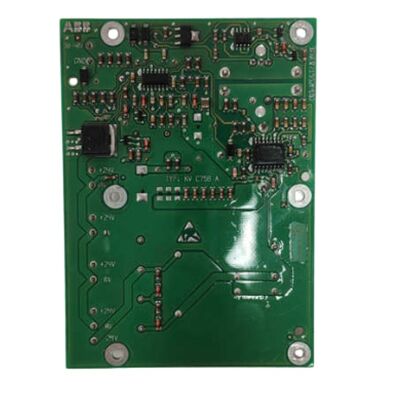

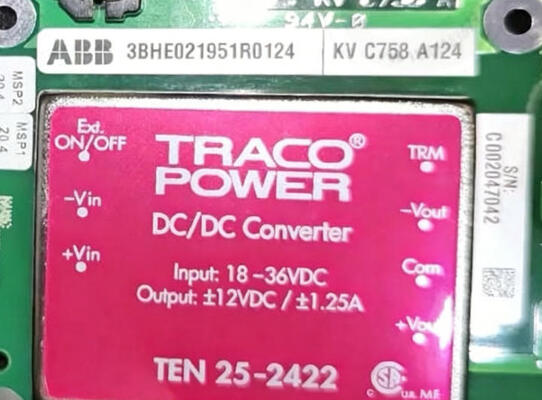

Product Images
Installation Requirements
Professional installation is essential to ensure optimal performance, operational safety, and compliance with industry standards. Proper implementation is critical for reliable system integration and long-term operational efficiency.
- Professional installation required for optimal performance and safety
- Ensure proper mounting and adequate ventilation
- Comply with all applicable electrical safety standards
