Foxboro FBM207 Series 16-Channel Voltage Monitor Module with Optical Isolation and Redundant Fieldbus Communication
| Place of Origin | America |
|---|---|
| Brand Name | FOXBORO |
| Model Number | FBM207 |
| Minimum Order Quantity | 1 |
| Price | $120 |
| Delivery Time | 5-7days |
| Payment Terms | T/T |
| Supply Ability | 999 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product ID | Foxboro FBM207 Series - 16-Channel Voltage Monitor / Contact Sensor Module | Brand | FOXBORO |
|---|---|---|---|
| Series | FBM207 | Model Number | FBM207 |
| Warranty | 1 Year | Function | Good |
| Condition | New | ||
| Highlight | 16-Channel Voltage Monitor Module,Optical Isolation Contact Sensor Module,Redundant Fieldbus Communication PLC Module |
||
Product Description
Foxboro FBM207 Series - 16-Channel Voltage Monitor / Contact Sensor Module
The Foxboro FBM207 series offers flexible discrete input monitoring with 16 isolated channels. The standard FBM207 accepts DC voltage inputs, while the FBM207b and FBM207c models support contact or solid-state switch inputs. Suitable for harsh industrial environments, the modules handle various voltage levels—from 60 VDC to 240 VAC—through termination assemblies that provide optical isolation and voltage attenuation. Featuring configurable filtering, no missing pulse detection up to 250 Hz, and support for redundant fieldbus communication, the FBM207 series can be deployed as a single unit or in redundant pairs for reliable voltage and contact monitoring in control systems.
Technical Specifications
| Input | 16 isolated and independent channels |
|---|---|
| Input Channels | 16 channels |
| Communication | Communicates via the redundant 2 Mbps module Fieldbus with associated FCM or FCP |
| Dimensions | 102mm x 45mm x 104mm |
| Operating Temperature | -20 to +70°C |
Key Features
- 16 isolated input channels for discrete monitoring
- Multiple model variants supporting DC voltage and contact/solid-state switch inputs
- Wide voltage range compatibility (60 VDC to 240 VAC)
- Optical isolation and voltage attenuation
- Configurable filtering capabilities
- No missing pulse detection up to 250 Hz
- Redundant fieldbus communication support
- Suitable for harsh industrial environments
- Single unit or redundant pair deployment options

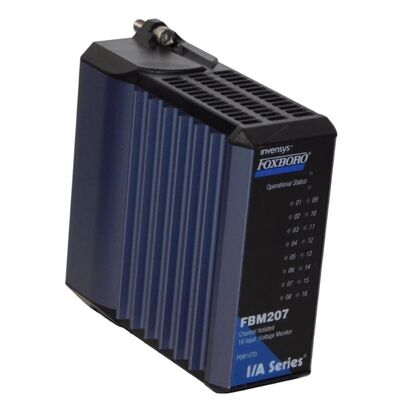

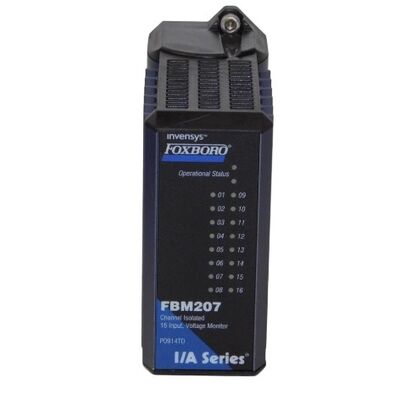

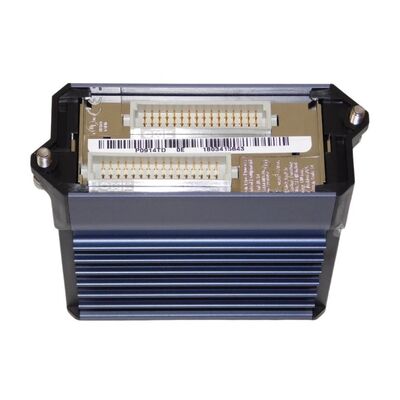

Product Images
Installation Requirements
This industrial control panel requires professional installation to ensure optimal performance and operational safety. Proper implementation is essential for reliable system integration and compliance with industry standards.
- Professional installation required for optimal performance and safety
- Ensure proper mounting and adequate ventilation
- Comply with all applicable electrical safety standards
