Foxboro FBM203 Series 8-Channel RTD Input Module with Channel Isolation and Sigma-Delta Conversion for High Accuracy
| Place of Origin | America |
|---|---|
| Brand Name | FOXBORO |
| Model Number | FBM203 |
| Minimum Order Quantity | 1 |
| Price | $750 |
| Delivery Time | 5-7days |
| Payment Terms | T/T |
| Supply Ability | 999 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product ID | Foxboro FBM203 Series – 8-Channel RTD Input Module With Channel Isolation | Brand | FOXBORO |
|---|---|---|---|
| Series | FBM203 | Model Number | FBM203 |
| Warranty | 1 Year | Function | Good |
| Condition | New | ||
| Highlight | 8-Channel RTD Input Module,Channel Isolation RTD Input Module,Sigma-Delta Conversion PLC Module |
||
Product Description

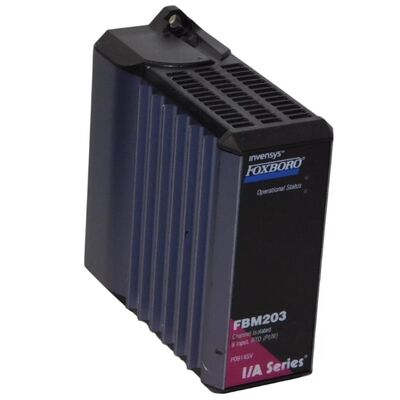

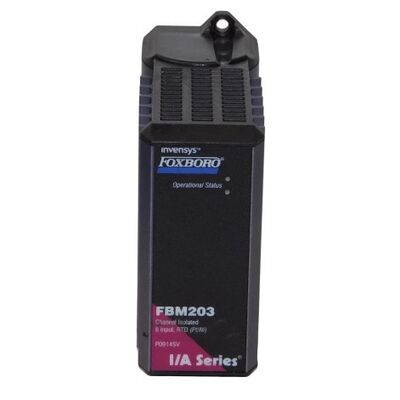

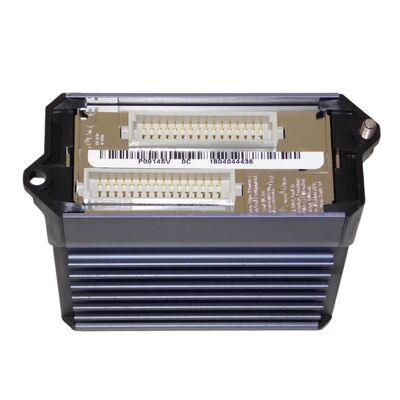

Foxboro FBM203 Series – 8-Channel RTD Input Module with Channel Isolation
The Foxboro FBM203 series are RTD input modules with eight isolated channels for temperature measurement. The FBM203 supports 0-320 ohms for 2- or 3-wire sensors, the FBM203b covers up to 640 ohms, the FBM203c supports 0-30 ohms, and the FBM203d is designed for 4-wire RTDs within 0-320 ohms. Each channel is electrically isolated and provides sigma-delta conversion for high accuracy. Suitable for harsh environments, the modules support configurable conversion time and rate of change limits, and can be wired locally or remotely using DIN rail or baseplate-mounted termination assemblies for easy integration into optionally redundant fieldbus systems.
Technical Specifications
| Module Type | 8-Channel RTD Input Module |
|---|---|
| Input Channels | 8 channels |
| Accuracy | ±0.1% of span |
| Dimensions | 102mm x 114mm x 45mm |
| Operating Temperature | 0°C to +60°C |
Product Images
Installation Requirements
This industrial control panel requires professional installation to ensure optimal performance and operational safety. Proper implementation is essential for reliable system integration.
- Professional installation required for optimal performance and safety
- Ensure proper mounting and adequate ventilation
- Comply with all applicable electrical safety standards
