Westinghouse Emerson 1X00102H01 Power Distribution Module with Wide-Range AC Input , Modular Hot-Swap Capability, and Redundant Configurations Support
| Place of Origin | America |
|---|---|
| Brand Name | Westinghouse |
| Model Number | 1X00102H01 |
| Minimum Order Quantity | 1 |
| Price | $100 |
| Delivery Time | 5-7days |
| Payment Terms | T/T |
| Supply Ability | 999 |
Product Details
| Product ID | WESTINGHOUSE Emerson 1X00102H01 Power Distribution Module | Brand | Westinghouse |
|---|---|---|---|
| Series | 1X00102H01 | Model Number | 1X00102H01 |
| Warranty | 1 Year | Function | Good |
| Condition | New | ||
| Highlight | Wide-Range AC Input Power Distribution Module,Modular Hot-Swap Capability PLC Module,Redundant Configurations Support DCS Power Module |
||
Product Description
WESTINGHOUSE Emerson 1X00102H01 Power Distribution Module
The Emerson 1X00102H01 (WH1-PDM) is a power distribution module designed for Ovation and Westinghouse DCS systems. It accepts wide-range AC input (90-260 VAC) and converts it into stable 5V, 12V, and 24V DC outputs to power I/O modules, logic cards, and communication interfaces. Featuring modular hot-swap capability, built-in diagnostics, and support for redundant configurations, this mission-critical unit ensures continuous operation and easy maintenance in power generation, process control, and industrial automation applications.
Technical Specifications
| Type | Analog Input Module |
| Operating Voltage | 24 VDC |
| I/O Channel Count | 16 channels |
| Dimensions | 115mm * 80mm * 35mm |
| Communication Interface | Proprietary bus compatible with Westinghouse/WDPF DCS architecture |
| Operating Temperature | 0°C to 60°C |

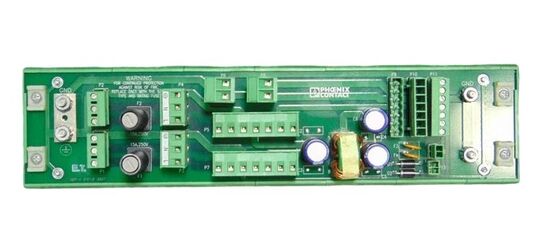

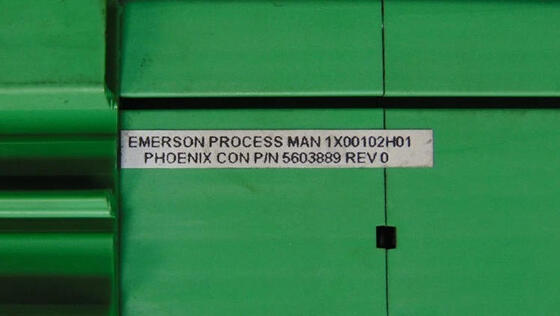

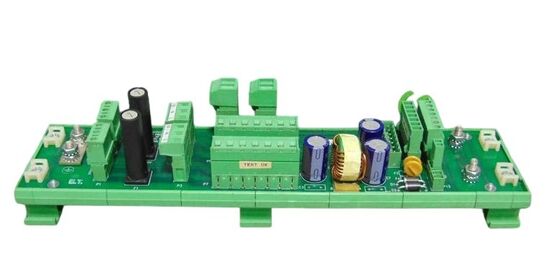

Product Images
Installation Requirements
Installation Note: This control panel is engineered for professional installation in industrial control systems. Ensure proper mounting, adequate ventilation, and strict compliance with all applicable electrical safety standards during installation and operation.
