Westinghouse Emerson 1X00102H01 Power Distribution Module with Hot-Swap Capability Modular Diagnostics and Redundant Configurations
| Place of Origin | USA |
|---|---|
| Brand Name | Westinghouse |
| Model Number | 1X00102H01 |
| Minimum Order Quantity | 1 |
| Price | $50 |
| Delivery Time | 5-7days |
| Payment Terms | T/T |
| Supply Ability | 999 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Id | Westinghouse Emerson 1X00102H01 Power Distribution Module | Brand | Westinghouse |
|---|---|---|---|
| Series | 1X00102H01 | Model Number | 1X00102H01 |
| Warranty | 1 Year | Function | Good |
| Condition | New | ||
| Highlight | Hot-Swap Capability Power Distribution Module,Modular Diagnostics PDM,Redundant Configurations WH1-PDM |
||
Product Description
Westinghouse Emerson 1X00102H01 Power Distribution Module
The Emerson 1X00102H01, also known as the WH1-PDM, serves as a critical power distribution unit within Ovation and Westinghouse DCS systems. This module efficiently converts AC input (90-260 VAC) to regulated DC outputs (5V, 12V, 24V) to power I/O modules, logic cards, and communication interfaces. Engineered for demanding industrial environments, it features hot-swap capability, modular diagnostics, and supports redundant configurations to ensure uninterrupted power supply and minimize downtime in critical automation applications across power generation facilities, water treatment plants, and process industries.
Technical Specifications
| Input Voltage | 24VDC |
|---|---|
| Product Type | Power Distribution Module |
| System Compatibility | Emerson Ovation Distributed Control System |
| Dimensions | 12.1 * 5.2 * 16.6 cm |
| Mounting Method | Backplane Mount |
| Operating Frequency | 50Hz |
Product Images

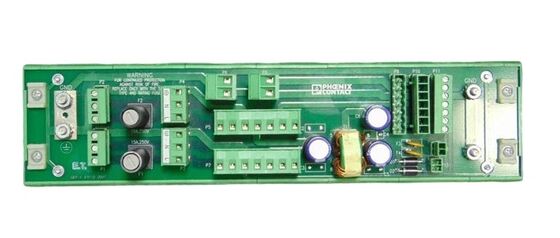

Front View

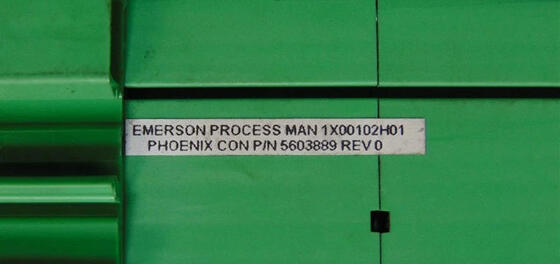

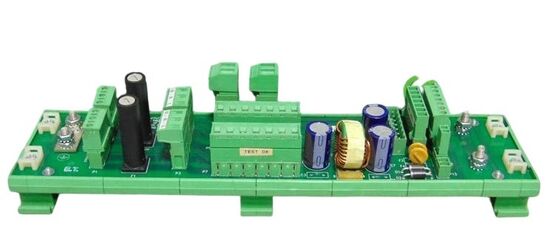

Side View
Rear View
Installation View
Installation Requirements
Installation Note: This panel is designed for professional installation in industrial control systems. Ensure proper mounting, adequate ventilation, and compliance with all electrical safety standards during installation.
