Foxboro FBM242 16-channel Discrete Output Module with 2A per Channel and Galvanic Isolation
| Place of Origin | USA |
|---|---|
| Brand Name | Foxboro |
| Model Number | FBM204 |
| Document | FBM242.pdf |
| Minimum Order Quantity | 1 |
| Price | $400 |
| Delivery Time | 5-7days |
| Payment Terms | T/T |
| Supply Ability | 999 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Id | Foxboro FBM242 Discrete Output Module | Brand | Foxboro |
|---|---|---|---|
| Series | FBM242 | Model Number | FBM242 |
| Warranty | 1 Year | Function | Good |
| Condition | New | ||
| Highlight | 16-channel Discrete Output Module,2A per channel PLC Module,Galvanic isolation Foxboro FBM242 |
||
Product Description

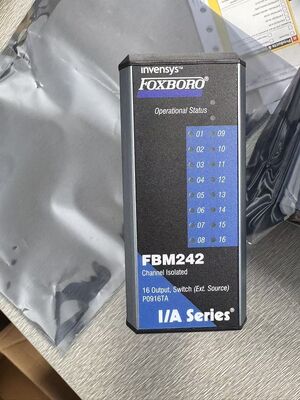

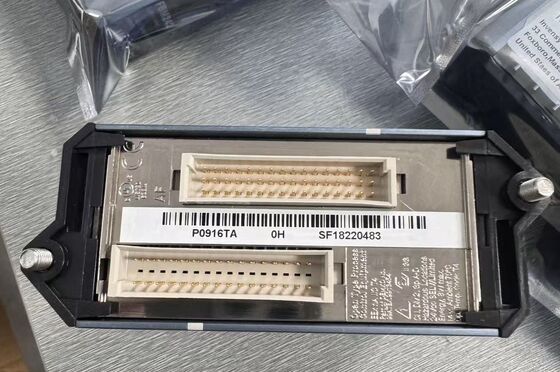

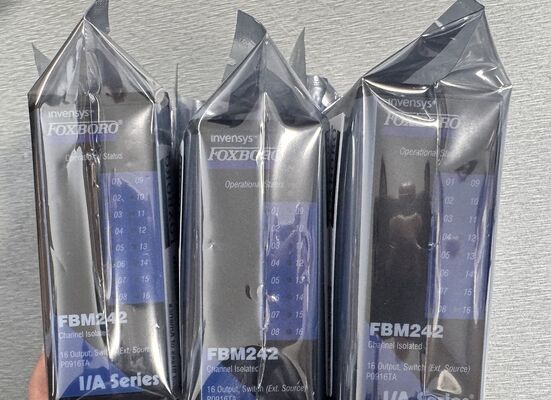

Foxboro FBM242 Discrete Output Module
Description:
The Foxboro FBM242 is a 16-channel, externally - sourced discrete output (DO) interface module belonging to the Foxboro I/A Series Distributed Control System (DCS) I/O subsystem, now part of Schneider Electric. It is mainly used to transmit control signals from the DCS controller to on - site discrete devices, so as to realize the on - off control of equipment such as valves, pumps, and actuators.
| Parameter | Description |
| Number of Channels | 16 discrete output channels |
| Output Rating | 2A per channel (max), 60V DC (direct drive); 120V AC/125V DC, 240V AC (with TA) |
| Isolation | Galvanic isolation between channels and ground |
| Dimensions | Approx. 241mm × 145mm × 56mm (9.5×5.7×2.2in) |
| Operating Temperature | Industrial grade (-40°C to 85°C) |
| Humidity | 0-95% (non - condensing) |
