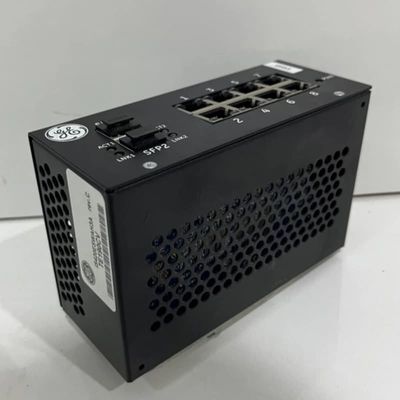

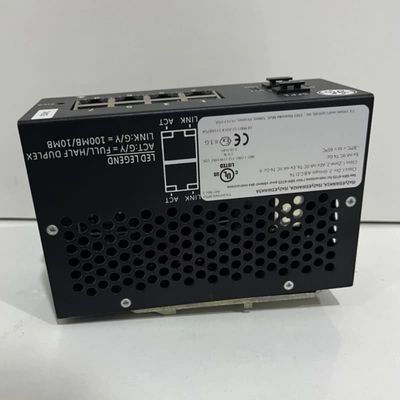

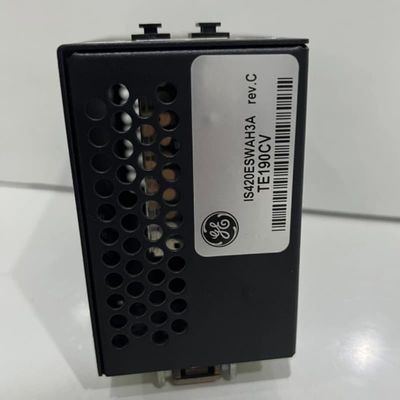

GE IS420ESWAH3A IONet Ethernet Switch with 8x 10/100BASE-TX Ports 100 Mbps FX Uplink and -30-65°C Operating Range for Mark VIe Turbine Control
| Place of Origin | US |
|---|---|
| Brand Name | GE |
| Model Number | IS420ESWAH3A |
| Minimum Order Quantity | 1pc |
| Price | $2800 |
| Packaging Details | New and original factory, individual box packing |
| Delivery Time | 5-7days |
| Payment Terms | T/T |
| Supply Ability | 999pcs |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | GE IS420ESWAH3A IONet Ethernet Switch | Product ID | IS420ESWAH3A |
|---|---|---|---|
| Series | Mark VIe | Function | Input Terminal Board |
| Product Net Depth/Length | 330mm | Product Net Height | 200mm |
| Product Net Width | 100mm | Product Net Weight | 2kg |
| Warranty | 1year | ||
| Highlight | 8x 10/100BASE-TX Ports IONet Ethernet Switch,100 Mbps FX Uplink Mark VIe Ethernet Switch,-30-65°C Operating Range GE Turbine Control Switch |
||
Product Description
GE IS420ESWAH3A IONet Ethernet Switch
Product Specifications:
The GE IS420ESWAH3A is an IONet Ethernet Switch for the Speedtronic Mark VIe gas turbine control system. It uses Achilles-certified controllers and Fieldbus tech to meet NERC v5 critical infrastructure standards, with 8x 10/100BASE-TX ports and a 100 Mbps FX uplink. Designed for harsh environments, it has a conformal coating, operates at -30–65°C, and withstands 5–95% non-condensing humidity plus UBC seismic vibration. With an MTBF over 4 million hours, it ensures high reliability for turbine control.Key Features:
Robust Connectivity & Standards Compliance: Supports IEEE 802.3/3u/3x, 10/100 copper auto-negotiation, HP-MDIX auto-sensing, and flow control. Integrates IEEE 1588 timing for 1μs packet sync.
Durable Design & Flexible Mounting: Conformal coating resists corrosion; panel or DIN-rail mount with easy access to connections. Compact size: 138x86x56mm.
Redundancy & Diagnostics: Dual 18–36V DC redundant power inputs; dual-color LEDs per port and a power LED for real-time status. 256KB buffer with 4K MAC addresses.
System Compatibility & Performance: Backward-compatible with legacy systems, enables future expansion, and boosts real-time control performance. Meets 4 conformance criteria for multicast packet loads --with/without flow control.
Robust Connectivity & Standards Compliance: Supports IEEE 802.3/3u/3x, 10/100 copper auto-negotiation, HP-MDIX auto-sensing, and flow control. Integrates IEEE 1588 timing for 1μs packet sync.
Durable Design & Flexible Mounting: Conformal coating resists corrosion; panel or DIN-rail mount with easy access to connections. Compact size: 138x86x56mm.
Redundancy & Diagnostics: Dual 18–36V DC redundant power inputs; dual-color LEDs per port and a power LED for real-time status. 256KB buffer with 4K MAC addresses.
System Compatibility & Performance: Backward-compatible with legacy systems, enables future expansion, and boosts real-time control performance. Meets 4 conformance criteria for multicast packet loads --with/without flow control.
Compatible Components
DS200DTBBG1ABB
DS200TCCAF1BDF
DS200SDCIG2AFB
IS200ISBBG1AAB
DS200SDCIG2AHB
IS200CABPG1BAA
DS200BDAAG1AAA
IS200DSFCG1AEB
DS200SIOBH1ABA
IS200DRLYH1BBB
