GE DS200UCPBG5AFB PC Board Mark V Turbine Control with 7-Switch Block 34-Pin Connector and COM1 Terminal Interface
| Place of Origin | US |
|---|---|
| Brand Name | GE |
| Model Number | DS200UCPBG5AFB |
| Minimum Order Quantity | 1pc |
| Price | $3000 |
| Packaging Details | New and original factory, individual box packing |
| Delivery Time | 5-7days |
| Payment Terms | T/T |
| Supply Ability | 999pcs |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | GE DS200UCPBG5AFB PC Board Mark V Ge Turbine Control | Product ID | DS200UCPBG5AFB |
|---|---|---|---|
| Series | Mark V | Function | Discrete Output Pack |
| Product Net Depth/Length | 330mm | Product Net Height | 200mm |
| Product Net Width | 100mm | Product Net Weight | 2kg |
| Warranty | 1year | ||
| Highlight | 7-Switch Block GE DS200UCPBG5AFB PC Board,34-Pin Connector Mark V Turbine Control Board,COM1 Terminal Interface Discrete Output Pack |
||
Product Description
GE DS200UCPBG5AFB PC Board Mark V Ge Turbine Control
Product Details:

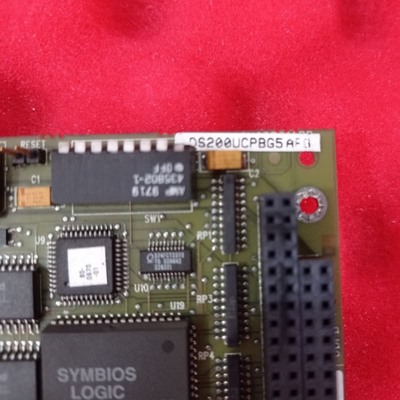

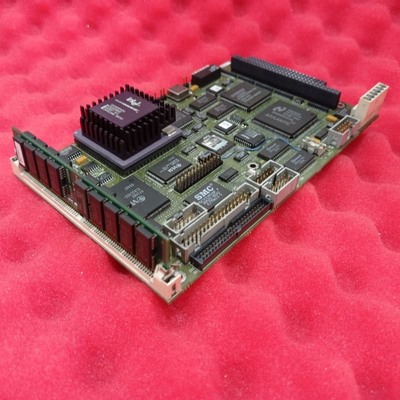

The GE DS200UCPBG5AFB is a key PCB for the Mark V Series, featuring a microprocessor, multiple PROM modules, 1 DIMM connector, 1 7-switch block, and 1 34-pin connector, along with another board-attachment connector and microprocessor-accessible RAM.
It has three hardware jumpers (JP1, JP2, JP3) – JP1 and JP3 are vestigial for factory testing, while JP2 is customizable for 486 local bus speed selection. Various connectors include ARCNET COREBUS, COM1 Terminal Interface Monitor, J1/J3 STCA Board Bus, IDE, and COM2; IDE and COM2 are unused in normal function. The DIMM connector is empty in replacements, requiring careful DIMM transfer from old boards (per GE manuals). It integrates a PCM daughterboard solely for communicating with FMVED motor controllers, without gaining special modular status. Identifiable by functional components, it ensures reliable operation in Mark V systems.
