GE DS200TCCBG1B DS200TCCBG1BED I/O TC2000 Analog Board Mark V Ge Turbine Control
| Place of Origin | US |
|---|---|
| Brand Name | GE |
| Model Number | DS200TCCBG1B |
| Minimum Order Quantity | 1pc |
| Price | $3000 |
| Packaging Details | New and original factory, individual box packing |
| Delivery Time | 5-7days |
| Payment Terms | T/T |
| Supply Ability | 999pcs |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | GE DS200TCCBG1B DS200TCCBG1BED I/O TC2000 Analog Board Mark V Ge Turbine Control | Product ID | DS200TCCBG1B |
|---|---|---|---|
| Series | Mark V | Function | Discrete Output Pack |
| Product Net Depth/Length | 330mm | Product Net Height | 200mm |
| Product Net Width | 100mm | Product Net Weight | 2kg |
| Warranty | 1year | ||
| Highlight | GE Turbine Control analog board,DS200TCCBG1B I/O board,Mark V turbine control board |
||
Product Description

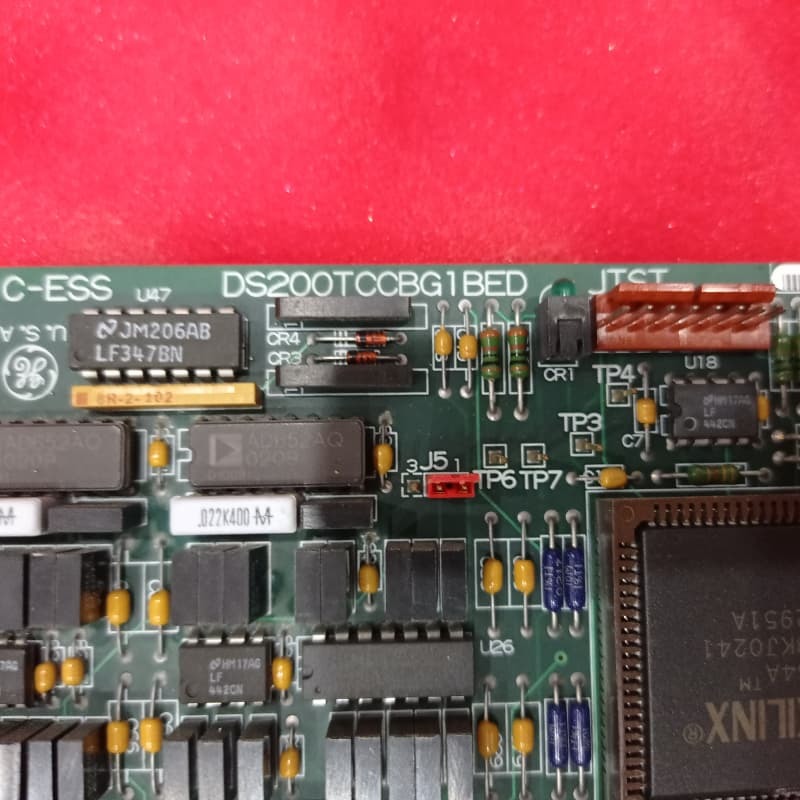

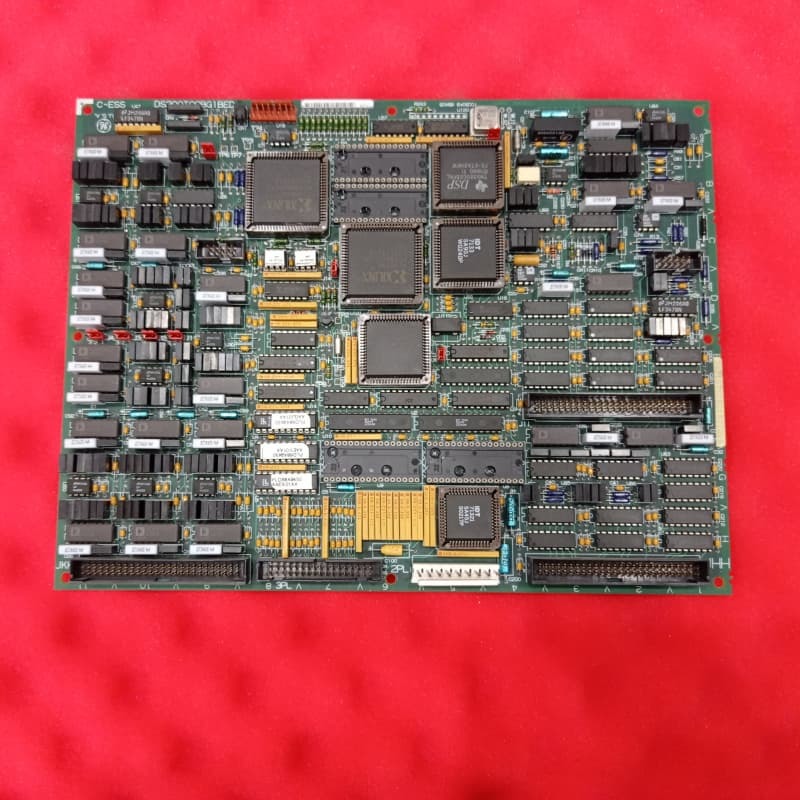

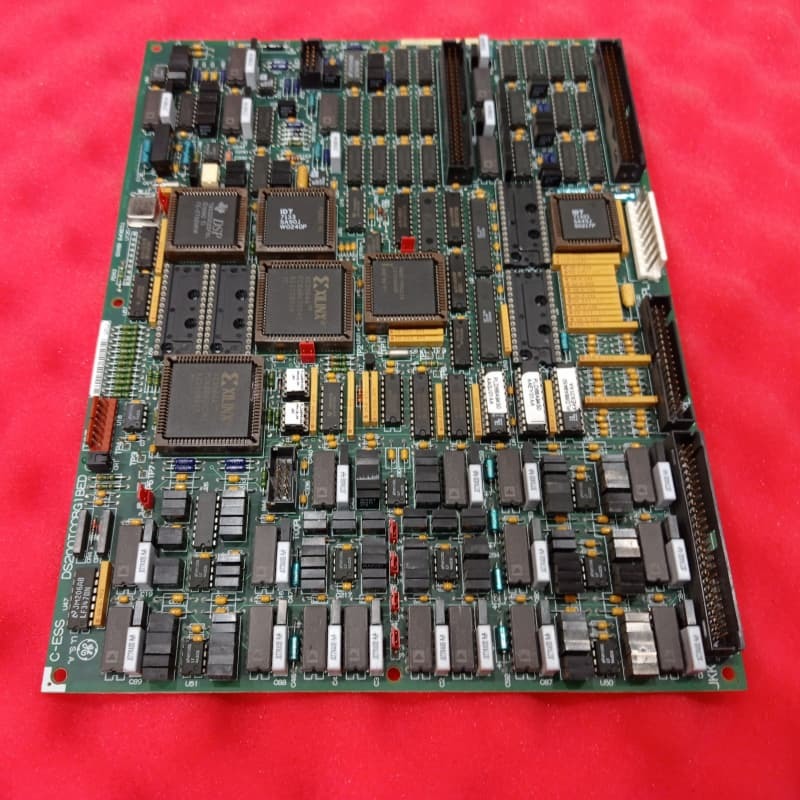

GE DS200TCCBG1B DS200TCCBG1BED I/O TC2000 Analog Board Mark V Ge Turbine Control
The GE DS200TCCBG1B is an I/O TC2000 Analog Board designed for GE's Speedtronic Mark V gas turbine control systems. A revised variant of the original DS200TCCBG1 parent board, it leverages GE's patented Speedtronic technology and fits within the legacy Mark V Series, despite the series being obsolete.
Product Details
Its core hardware includes an 80196 CPU, multiple PROM modules, one side-visible LED for status monitoring, and two 50-pin connectors. It features three configurable jumpers--3-pin design covering two pins at a time--allowing installers to adjust settings to match drive specifications. Default positions suffice for most cases, with adjustments guided by factory documentation.
Eight connectors enable system integration: 2PL (TCPS power), 3PL (COREBUS signals), JHH (TBCB inputs), JII (TBCB RTD inputs), JMP (TCEB PT/CT signals), plus JKK, JTEST, and TCQPL (vestigial, unused in normal operation).
Key Features
- Configurable Jumpers: Three jumpers (JP1-JP3) enable customization of settings to match drive requirements, with clear guidance for adjustment and default positions for simplicity.
- Central Processing & Memory: Equipped with an 80196 CPU and PROM modules, processing analog signals and executing control logic for turbine operations.
- Dedicated Connectivity: Eight connectors---five functional, three vestigial interface with key Mark V components (TCPS, TBCB, TCEB boards), ensuring seamless signal transmission.
- Status Monitoring: A side-visible LED provides at-a-glance operational status, aiding quick diagnostics.
