GE DS200SSBAG1A Drive Snubber Board for DC300/2000 Drives with Critical Power Backup and Secure Connectivity
| Place of Origin | US |
|---|---|
| Brand Name | GE |
| Certification | COO |
| Model Number | DS200SSBAG1A |
| Minimum Order Quantity | 1pc |
| Price | $2000 |
| Packaging Details | New and original factory, individual box packing |
| Delivery Time | 5-7days |
| Payment Terms | T/T |
| Supply Ability | 999pcs |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | GE DS200SSBAG1A Drive Snubber Board | Product ID | DS200SSBAG1A |
|---|---|---|---|
| Series | Turbine Specific Primary Trip Board | Function | Servo Control Board |
| Product Net Depth/Length | 330mm | Product Net Height | 200mm |
| Product Net Width | 100mm | Product Net Weight | 2kg |
| Warranty | 1year | ||
| Highlight | DC300/2000 Drive Specialization Drive Snubber Board,Critical Power Backup Drive Snubber Board,Secure Connectivity Drive Snubber Board |
||
You can tick the products you need and communicate with us in the message board.
Product Description
GE DS200SSBAG1A Drive Snubber Board
Product Details:
The GE DS200SSBAG1A is a specialized Drive Snubber Board designed for GE’s Mark V Series, exclusively optimized for DC300/2000 drives. Its core role is to provide snubber functionality—controlling and managing electrical energy within the drive system—working in tandem with other components to ensure reliable, efficient operation of DC300/2000 setups.

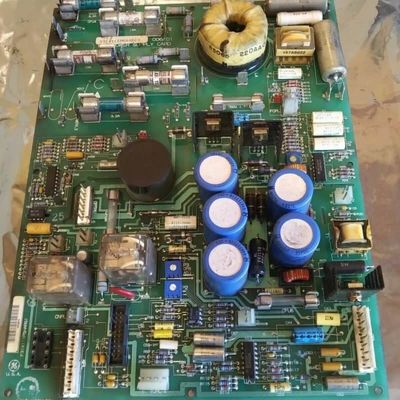

Hardware-wise, it includes two AZ CAP K90017-437 batteries, a 2-pin FCPL connector, three functional capacitors, and four terminal posts three for connecting cables to on-board components, with the fourth requiring terminal ID tagging if used. Installation and replacement follow specific guidelines: cables must be matched to terminals, the 2-pin connector cable should be tagged with the board’s connector ID for easy reattachment.
Key Features:
DC300/2000 Drive Specialization: Exclusively optimized for DC300/2000 drives in the Mark V Series, ensuring seamless integration and targeted snubber functionality to manage electrical energy for drive stability.
Critical Power & Backup: Two 660 VAC AZ CAP K90017-437 batteries provide essential power and backup capabilities, supporting consistent board operation even in fluctuating electrical conditions.
Secure Connectivity: A 2-pin FCPL connector enables stable cable attachment and reliable signal/electrical transfer, reducing connection errors and ensuring uninterrupted drive communication.
Structured Terminal & Cable Management: Four terminal posts with clear guidelines for 3 dedicated posts and 1 tagged post plus ID-based cable labeling for 2-pin connector cables simplify replacement, ensuring correct cable-terminal alignment and faster reinstallation.
Damage-Preventive Handling: Requires hand support during removal to avoid bumps against cabinet openings and placement on a clean, dry surface—protecting delicate components from physical harm or contamination.
Snubber Core Function: Delivers targeted electrical energy control, mitigating voltage spikes or irregularities within DC300/2000 drives to enhance overall system reliability and prevent component damage from electrical stress.
