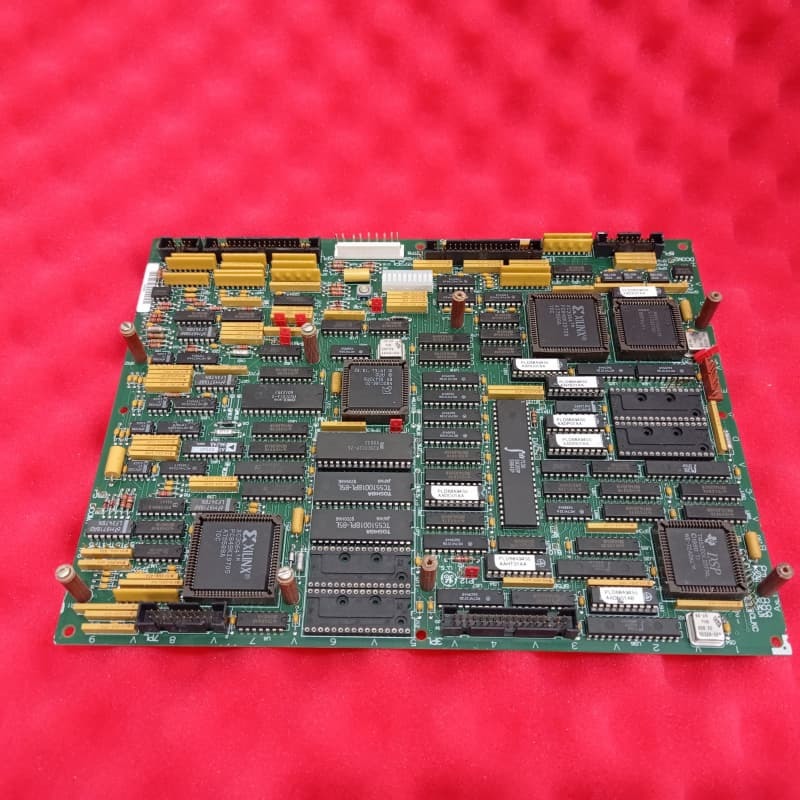

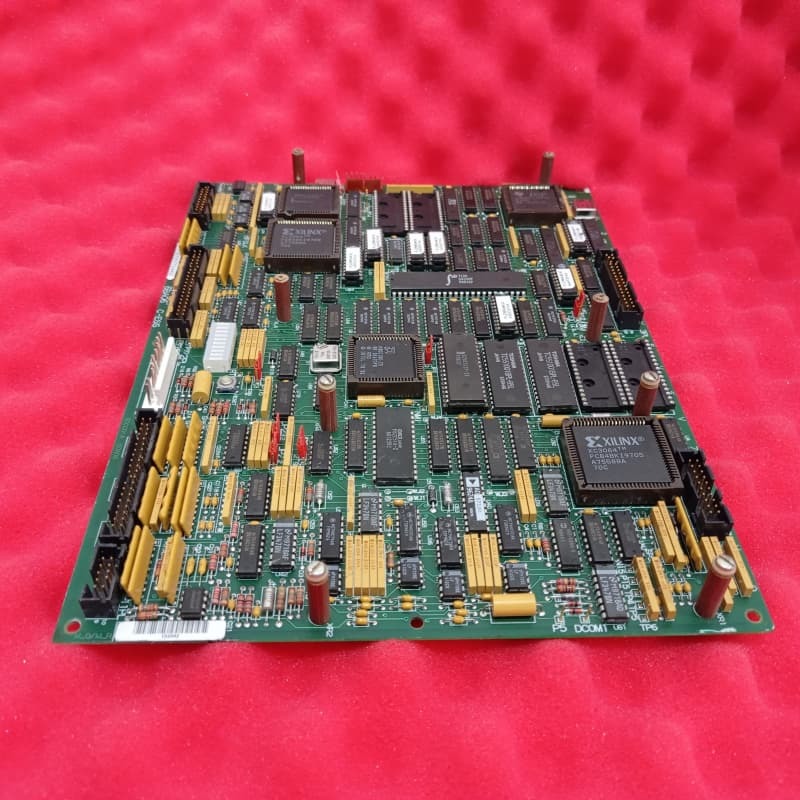

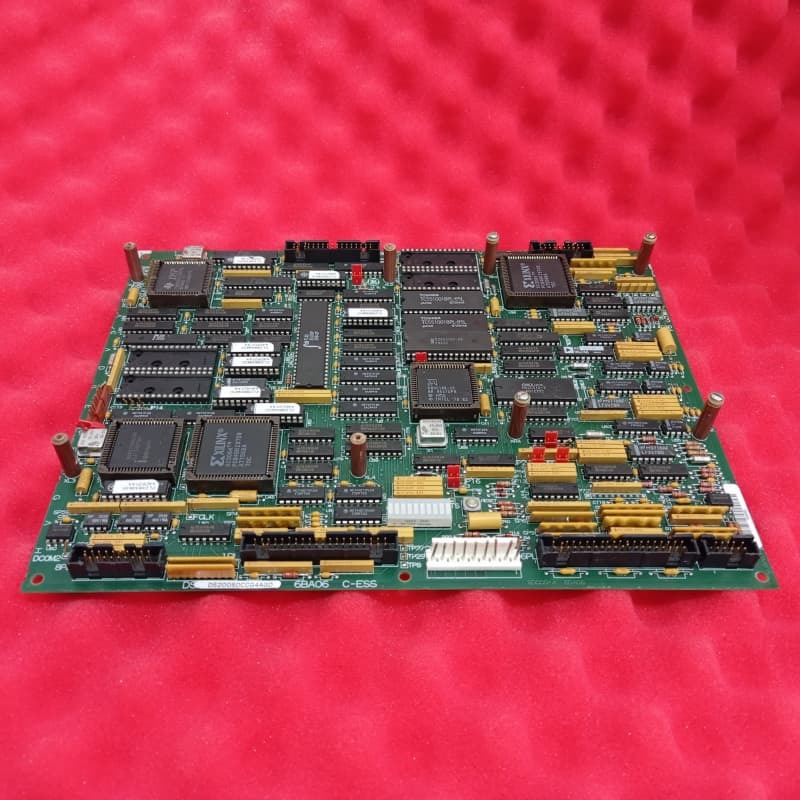

GE DS200SDCCG1AHD Drive Control Board 200mm x 100mm Mark V
| Place of Origin | USA |
|---|---|
| Brand Name | GE |
| Certification | COO |
| Model Number | DS200SDCCG1AHD |
| Minimum Order Quantity | 1 |
| Price | $1000 |
| Delivery Time | 5-7days |
| Payment Terms | T/T |
| Supply Ability | 999 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | GE DS200SDCCG1AHD Drive Control Board | Product ID | DS200SDCCG1AHD |
|---|---|---|---|
| Series | Mark V | Product Net Height | 200mm |
| Product Net Width | 100mm | Product Net Depth/Length | 330mm |
| Warranty | 1 Year | Product Net Weight | 2kg |
| Highlight | GE Drive Control Board 200mm x 100mm,GE Turbine Control Board Mark V,DS200SDCCG1AHD Drive Board with warranty |
||
Product Description
GE DS200SDCCG1AHD Drive Control Board
Product Description:
The GE DS200SDCCG1AHD is a Drive Control Board designed for GE’s Mark V Turbine Control System— a highly sought-after series for wind, steam, and gas turbine drive control, and one of the final GE Mark lines to integrate patented Speedtronic technology.
As the primary drive controller, it features a triple-microprocessor architecture with shared RAM to divide tasks efficiently: one microprocessor handles drive control-related data, while the other two focus on motor control—including one dedicated to math-intensive computations. Its voltage suppression and regulation rely on Mark V-standard components, such as capacitors, resistors, transistors, diodes, and integrated circuits, and it uses a normal Mark V PCB assembly style.
Configuration requires connecting the board to a laptop via a serial cable. Steps include configuring the laptop’s serial port, downloading/installing configuration software, editing the configuration file, and uploading it to the board. Power must be disconnected from the drive before disconnecting the serial cable to avoid high-energy current hazards.
Key Features:
Speedtronic-Powered Turbine Compatibility: Tailored for Mark V systems, supporting reliable control of wind, steam, and gas turbine drives.
Triple-Microprocessor Efficiency: Specialized processors split drive control, motor control, and complex math tasks, ensuring responsive and precise operation.
Mark V-Standard Durability: Uses series-standard voltage-limiting components and coating, aligning with the Mark V’s robust industrial design.
Revision-Coded Performance: The “AHD” suffix reflects two functional and one artwork revision, optimizing functionality and hardware protection.
Configurable for Multi-Board Use: Enables centralized configuration via laptop, with reusable files to streamline setup across multiple drives.
Safety-Focused Handling: Requires drive power-off during serial cable disconnection, mitigating high-energy current risks.
