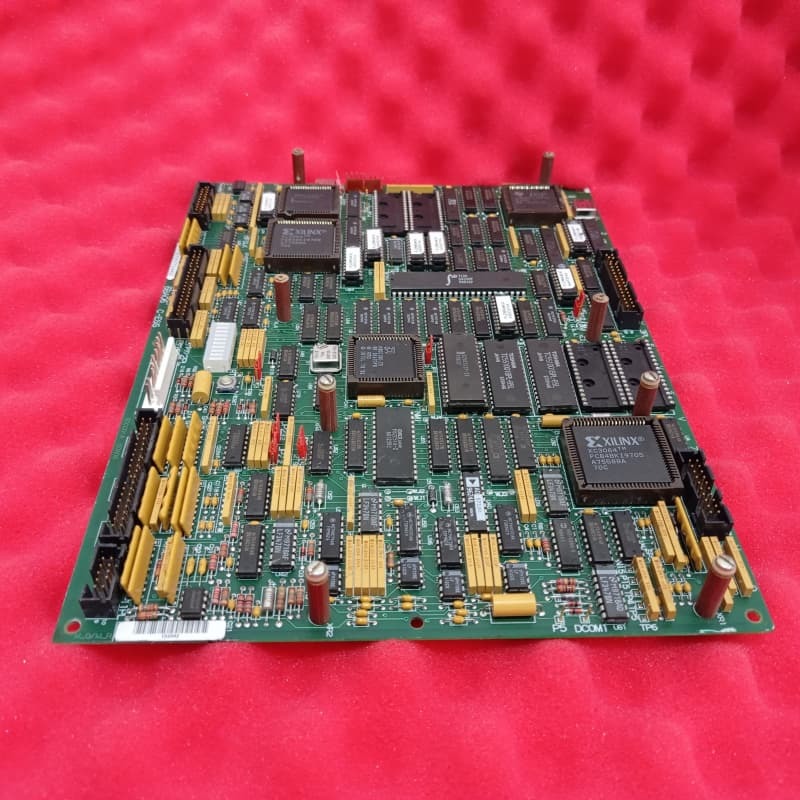

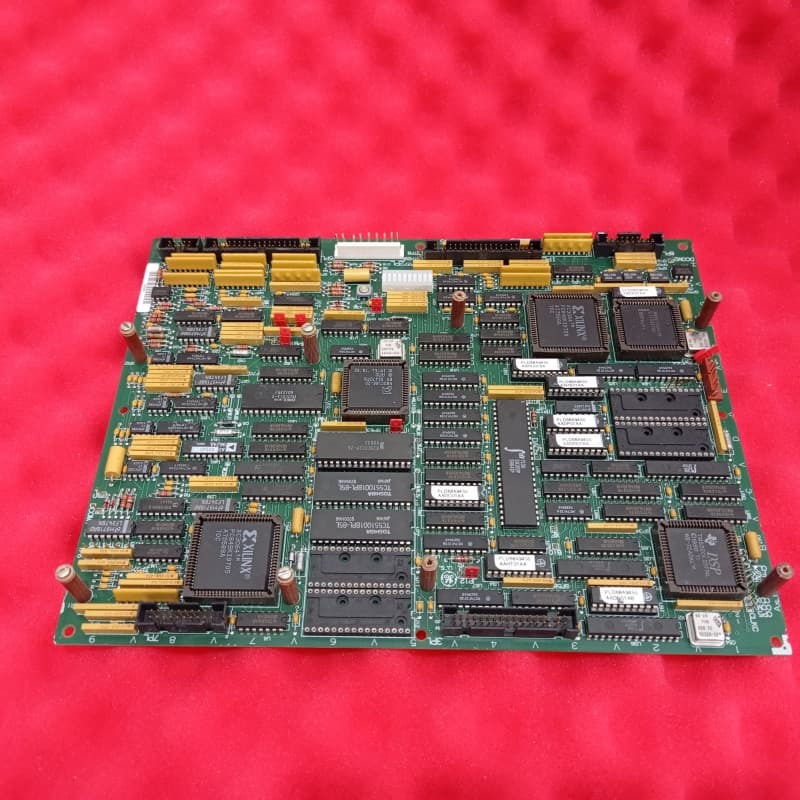

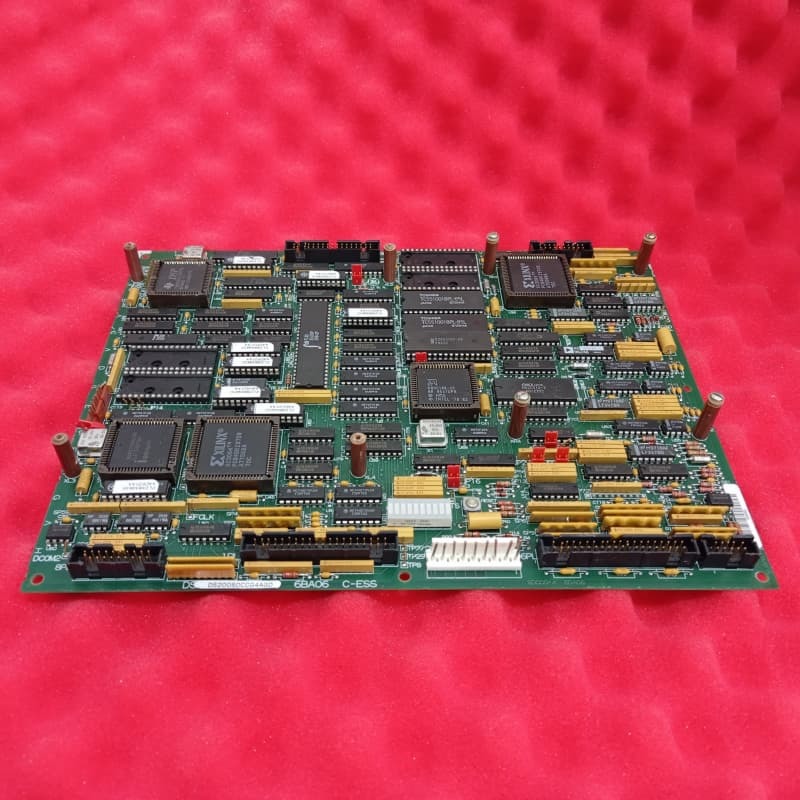

GE DS200SDCCG4AGD Digital Exciter Drive Control Card 330mm x 200mm
| Place of Origin | US |
|---|---|
| Brand Name | GE |
| Model Number | DS200SDCCG4AGD |
| Minimum Order Quantity | 1pc |
| Price | $1000 |
| Packaging Details | New and original factory, individual box packing |
| Delivery Time | 5-7days |
| Payment Terms | T/T |
| Supply Ability | 999pcs |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | GE DS200SDCCG4AGD Digital Exciter Drive Control Card | Product ID | DS200SDCCG4AGD |
|---|---|---|---|
| Series | Mark V | Function | Discrete Output Pack |
| Product Net Depth/Length | 330mm | Product Net Height | 200mm |
| Product Net Width | 100mm | Product Net Weight | 2kg |
| Warranty | 1year | ||
| Highlight | GE exciter drive control card,turbine control card 330mm x 200mm,digital exciter drive card with warranty |
||
Product Description
GE DS200SDCCG4AGD Digital Exciter Drive Control Card
The GE DS200SDCCG4AGD is a Digital Exciter Drive Control Card (SDCC) for GE's EX2000 Series, serving as the main processor board in excitation control systems. It houses three 16-bit microprocessors (80C186, 80C196, TMS320C25) linked via dual-ported RAM, each handling specialized tasks: system operations, motor control loops, and math-intensive algorithms.
Key hardware includes five memory chips — four factory-programmed EPROMs, one field-adjustable EEPROM, and configurable jumpers pre-set at the factory. It supports auxiliary boards like LAN cards and signal processors via dedicated connectors.
Software configuration requires tools like ST2000 or GE Control System Toolbox. As a revised variant of DS200SDCCG5, it enhances excitation system integration, processing, and I/O control for reliable turbine and exciter operation.
Key Features:
- Triple-Processor Architecture: Specialized microprocessors divide tasks for efficient excitation management.
- Flexible Memory: EPROMs store factory configurations; EEPROM allows field adjustments, adapting to system needs.
- Auxiliary Compatibility: Connects to LAN, signal processor cards, expanding communication and processing capabilities.
- Configurable Hardware: Factory-set jumpers ensure optimal performance.
Compatible Components:
| Model Numbers | Model Numbers |
|---|---|
| DS200DTBBG1ABB | DS200TCCAF1BDF |
| DS200SDCIG2AFB | IS200ISBBG1AAB |
| DS200SDCIG2AHB | IS200CABPG1BAA |
| DS200BDAAG1AAA | IS200DSFCG1AEB |
| DS200SIOBH1ABA | IS200DRLYH1BBB |
