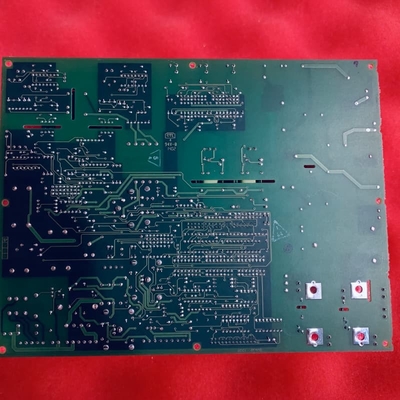

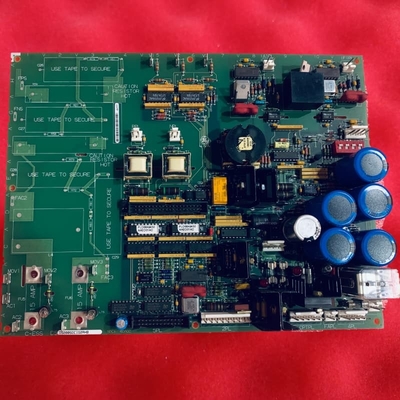

GE DS200SDCIG2AHB Power Supply Board 200mm x 330mm for Mark V Turbine
| Place of Origin | USA |
|---|---|
| Brand Name | GE |
| Certification | COO |
| Model Number | DS200SDCIG2AHB |
| Minimum Order Quantity | 1 |
| Price | $999 |
| Delivery Time | 5-7days |
| Payment Terms | T/T |
| Supply Ability | 999 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | GE DS200SDCIG2AHB Power Supply And Instrumentation Board | Product ID | DS200SDCIG2AHB |
|---|---|---|---|
| Series | Mark V | Product Net Height | 200mm |
| Product Net Depth/Length | 330mm | Product Net Width | 100mm |
| Product Net Weight | 2kg | Warranty | 1 Year |
| Highlight | GE Mark V turbine power supply board,DS200SDCIG2AHB power supply module,200mm x 330mm turbine control board |
||
You can tick the products you need and communicate with us in the message board.
Product Description
GE DS200SDCIG2AHB Power Supply and Instrumentation Board
Product Description:
The GE DS200SDCIG2AHB is a Power Supply and Instrumentation Board designed for GE’s Mark V Turbine Control System—one of the final GE series to integrate the brand’s patented Speedtronic control technology. It is a revised variant of the original DS200SDCIG2 parent board and acts as an interface to DC2000 drives.

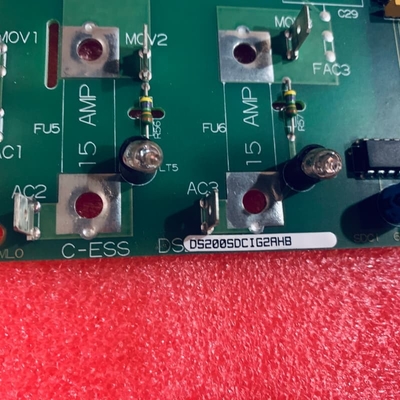

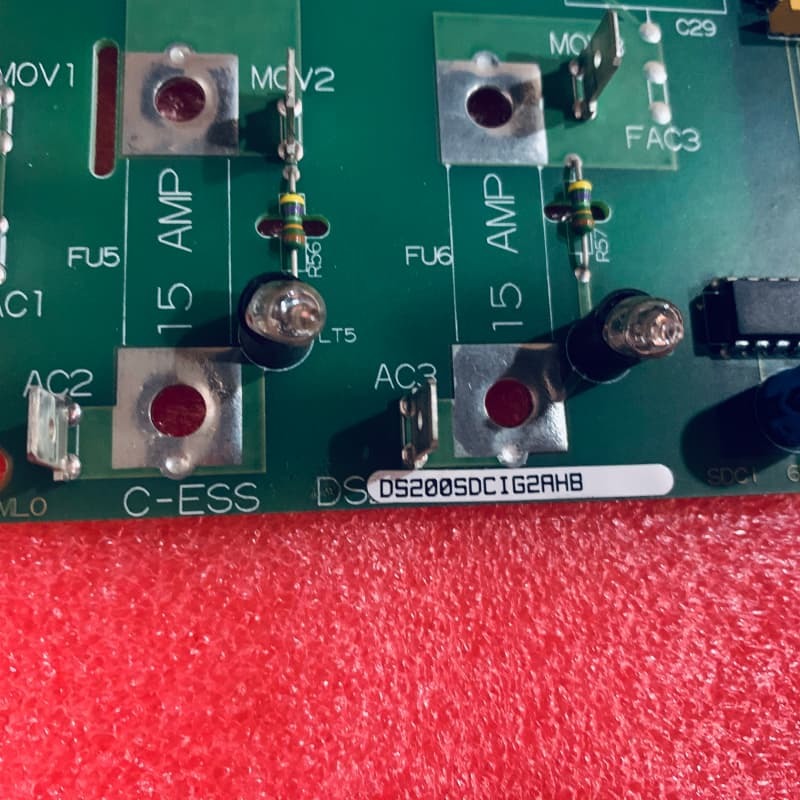

Static-sensitive by nature, it requires strict handling protocols: storage in a static-protective package until installation, touching an unpainted metal surface for 2 seconds pre-installation to discharge static, and handling only by outer edges to avoid damaging components. Key hardware includes three customizable parts:JP1 for MD Control Source, JP2 for MA AC Contactor Drop-Out Time, SW1 for AC Line CT Burden Selection, and fuses FU1-FU3, FU5-FU6 each linked to an indicator light that activates when the fuse blows. Its power supply circuits cover +5 VDC (4A), ±15 VDC (0.4A), ±24 VDC, and 115 VAC (0.4A).
For replacement, power must be fully disconnected from the drive, access gained by tilting the blocking board forward via its locking mechanisms, and all cables disconnected from the board first.
Technical Parameters:
| Product Name: | GE DS200SDCIG2AHB Power Supply and Instrumentation Board |
| Product ID: | DS200SDCIG2AHB |
| Series: | Mark V |
| Product Net Weight: | 2kg |
| Product Net Height: | 200mm |
| Product Net Width: | 100mm |
| Product Net Depth/Length: | 330mm |
| Warranty: | 1 Year |
