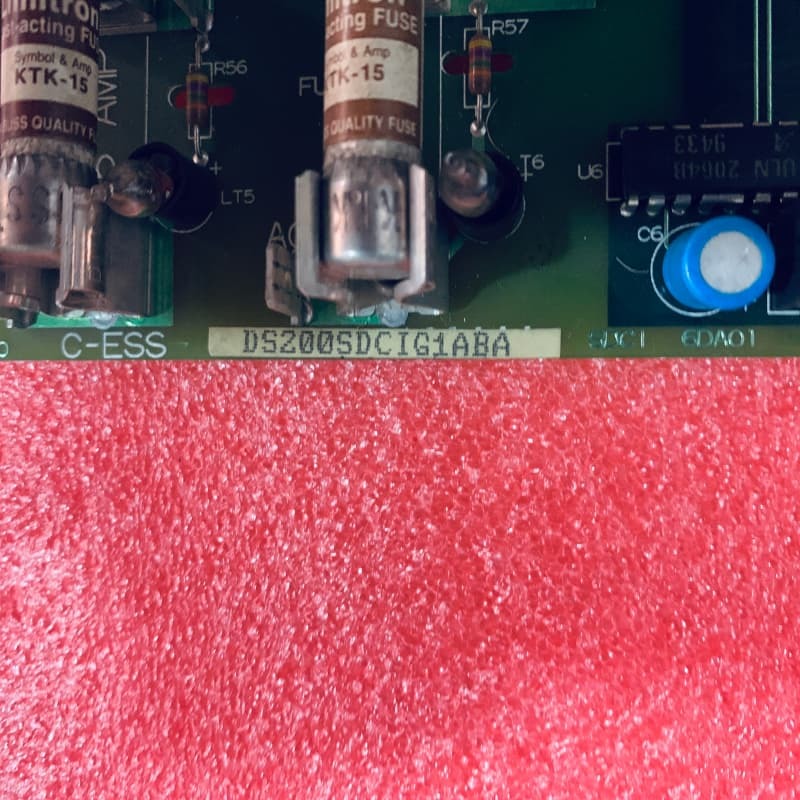

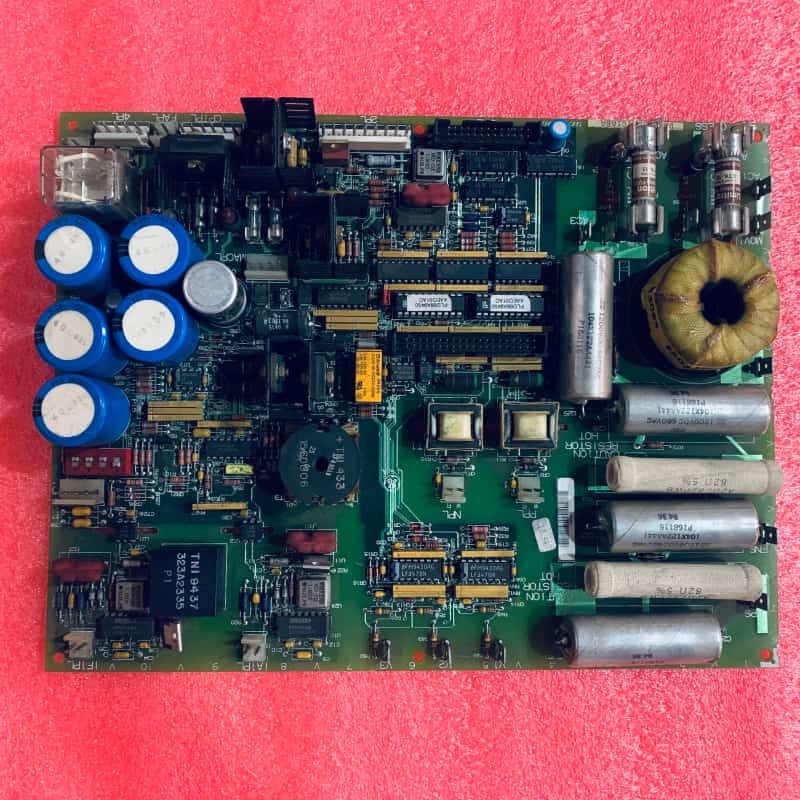

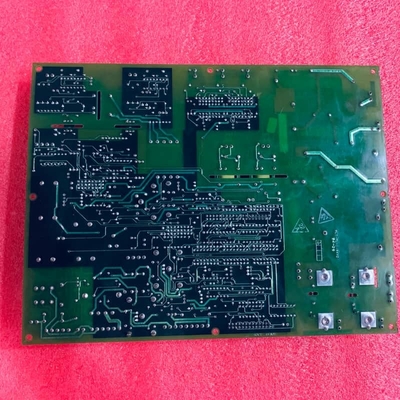

GE Mark V DS200SDCIG1AFB DC Power Supply Board 200mm x 330mm
| Place of Origin | USA |
|---|---|
| Brand Name | GE |
| Certification | COO |
| Model Number | DS200SDCIG1AFB |
| Minimum Order Quantity | 1 |
| Price | $999 |
| Delivery Time | 5-7days |
| Payment Terms | T/T |
| Supply Ability | 999 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | GE Mark V DS200SDCIG1AFB DC POWER SUPPLY AND INSTRUMENTATION BOARD | Product ID | DS200SDCIG1AFB |
|---|---|---|---|
| Series | Mark V | Product Net Height | 200mm |
| Product Net Depth/Length | 330mm | Product Net Width | 100mm |
| Product Net Weight | 2kg | Warranty | 1 Year |
| Highlight | GE Mark V DC power supply board,DS200SDCIG1AFB power supply module,200mm x 330mm turbine control board |
||
Product Description
GE Mark V DS200SDCIG1AFB DC POWER SUPPLY AND INSTRUMENTATION BOARD
Product Description:
The GE DS200SDCIG1AFB is a Power Supply Board for GE’s Mark V Turbine Control System and DC2000 drive control systems. It acts as an interface to DC2000 drives, enabling non-reversing/non-plugging (NRX) motor control for unidirectional motor operation. As a Group 1 Mark V component, it has three revisions: two functional, one artwork and domestic manufacture.
Key hardware includes power circuits ----armature SCR gating, motor field control, fuses---FU1-FU3, FU5-FU6 for 115V AC/signal power, two jumpers, and SW1. It offers two versions: SDCIG1 that internal 10A NRX field control with 15A fused outputs, line reactor, snubbers. And SDCIG2 external field supply management. Power supplies include ±5V/±15V/±24V DC and 115V AC; it uses thyristor-diode bridges for field current regulation.
Features:
NRX Motor Control: Enables single-direction motor operation for DC2000 drives, boosting reliability in consistent, unidirectional applications.
Dual-Version Flexibility: SDCIG1 (integrated 10A field control) suits self-contained setups; SDCIG2 (external field management) offers customization for external systems.
Comprehensive Protection: Fuses with neon blow indicators, AC/DC snubbers, and line reactors guard against voltage spikes, noise, and component damage.
Precise Power Regulation: Thyristor-diode bridges and dedicated power circuits (±5V/±15V/±24V DC, 115V AC) ensure stable field current and system power.
Technical Parameters:
| Product Name: | GE Mark V DS200SDCIG1AFB DC POWER SUPPLY AND INSTRUMENTATION BOARD |
| Product ID: | DS200SDCIG1AFB |
| Series: | Mark V |
| Product Net Weight: | 2kg |
| Product Net Height: | 200mm |
| Product Net Width: | 100mm |
| Product Net Depth/Length: | 330mm |
| Warranty: | 1 Year |
