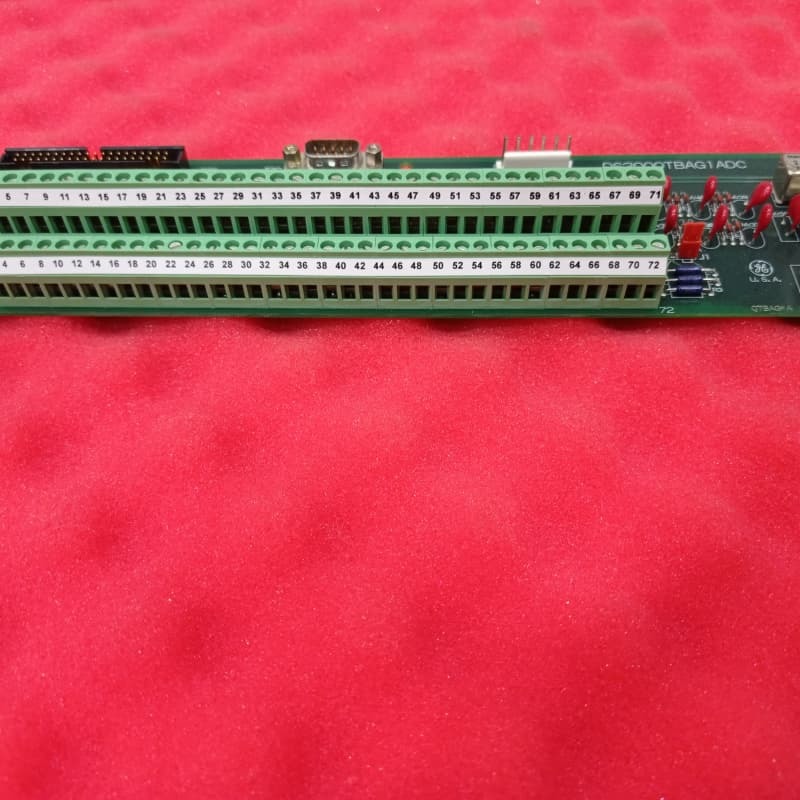

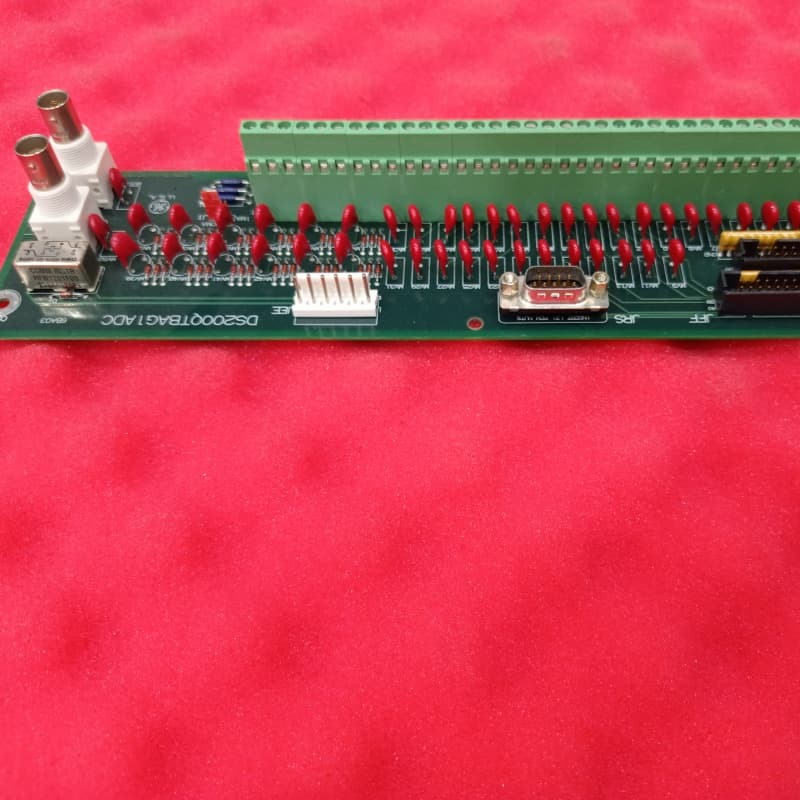

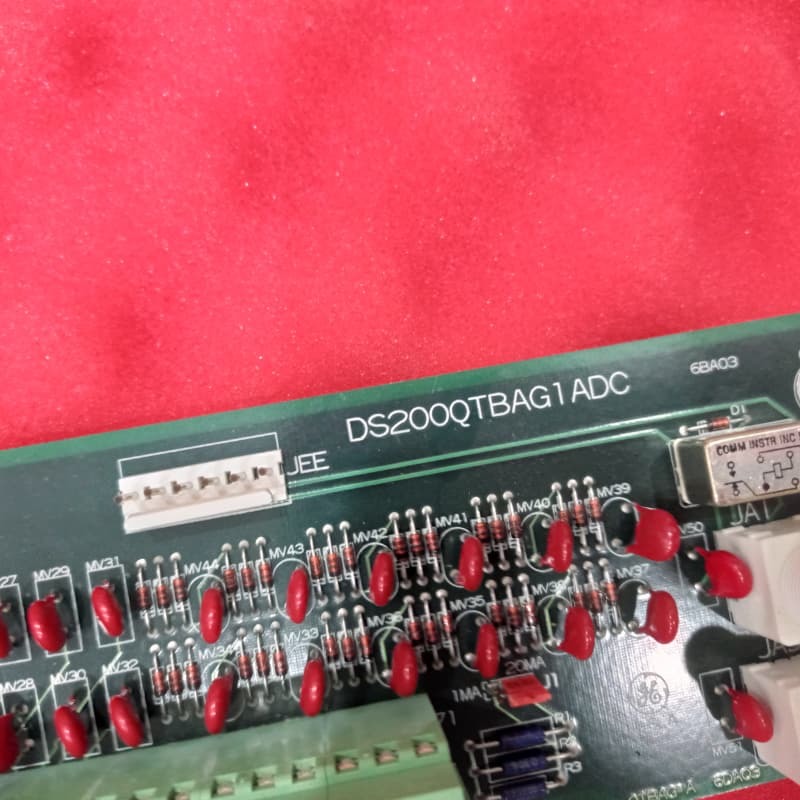

GE DS200QTBAG1ADC QTBA Terminal Board Mark V 330mm x 200mm
| Place of Origin | US |
|---|---|
| Brand Name | GE |
| Model Number | DS200QTBAG1ADC |
| Minimum Order Quantity | 1pc |
| Price | $1000 |
| Packaging Details | New and original factory, individual box packing |
| Delivery Time | 5-7days |
| Payment Terms | T/T |
| Supply Ability | 999pcs |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | GE DS200QTBAG1ADC QTBA Terminal Board Mark V Ge Turbine Control | Product ID | DS200QTBAG1ADC |
|---|---|---|---|
| Series | Mark V | Function | Discrete Output Pack |
| Product Net Depth/Length | 330mm | Product Net Height | 200mm |
| Product Net Width | 100mm | Product Net Weight | 2kg |
| Warranty | 1year | ||
| Highlight | GE Mark V terminal board,QTBA turbine control board,330mm x 200mm terminal board |
||
Product Description
GE DS200QTBAG1ADC QTBA Terminal Board Mark V Ge Turbine Control
Product Details:
The GE DS200QTBAG1ADC is an RST Termination Board designed exclusively for GE’s now-defunct Mark V Speedtronic series—one of the final GE lines to integrate Speedtronic control technology. It is a revised variant of the original DS200QTBAG1 parent board, incorporating three key updates to enhance signal management.
Its core role is routing and connecting signals in Mark V systems: it features two terminal blocks 72 signal wires each, a 40-pin JFF connector, a serial connector, and supports fuel flow signal connections. Key specs include 6 magnetic pulse rate inputs, 8 servo valve outputs, 6 LVDT excitation sources, and a J1 jumper for input signal adjustment.
Notably, its inputs/outputs only use R1/R2/R3 signals (no redundant access if not voting), ensuring targeted signal transmission for reliable turbine control.
