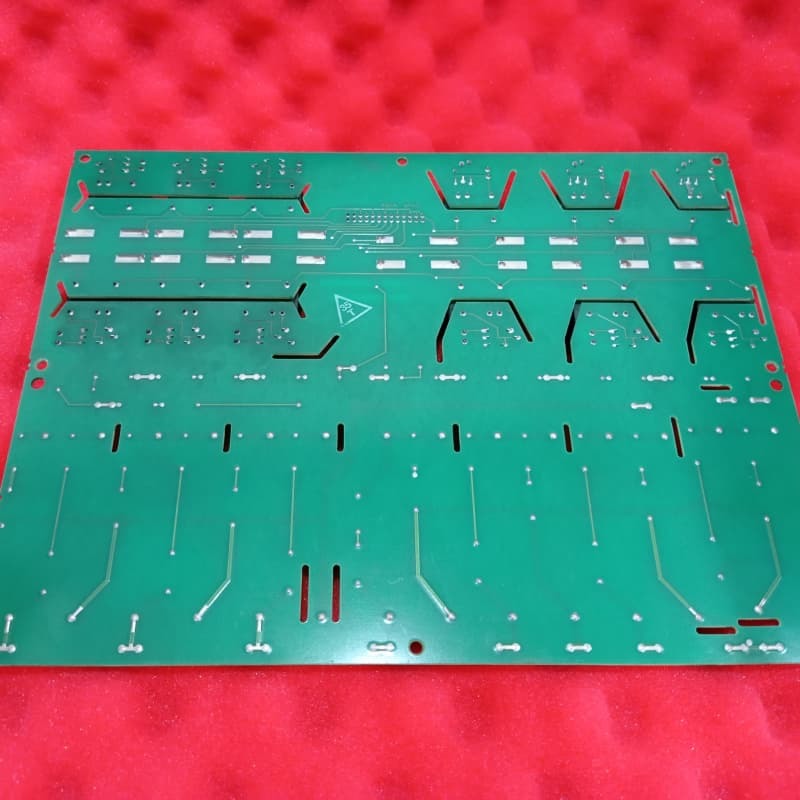

GE DS200PCCAG1ACB DC Power Connect Board 330mm x 200mm

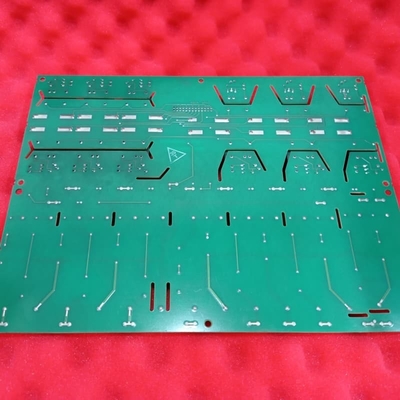

GE DS200PCCAG1ACB DC Power Connect Board

Product Details:

The GE DS200PCCAG1ACB is a DC Power Connect Card (PCCA) belonging to GE’s Industrial Control Systems DC2000 series and Mark V series. It acts as a critical interface between DC200 drives and SCR power bridges, enabling stable power transfer and control. Notably, it is non-repairable and requires full replacement if malfunctioning. Classified as Group 1—it features AC/DC snubbers, compatibility with C/G-style frames and SDCI power supply boards, <600 V rms AC voltage tolerance, line fuses/reactors, and support for separate/common bus transformers.

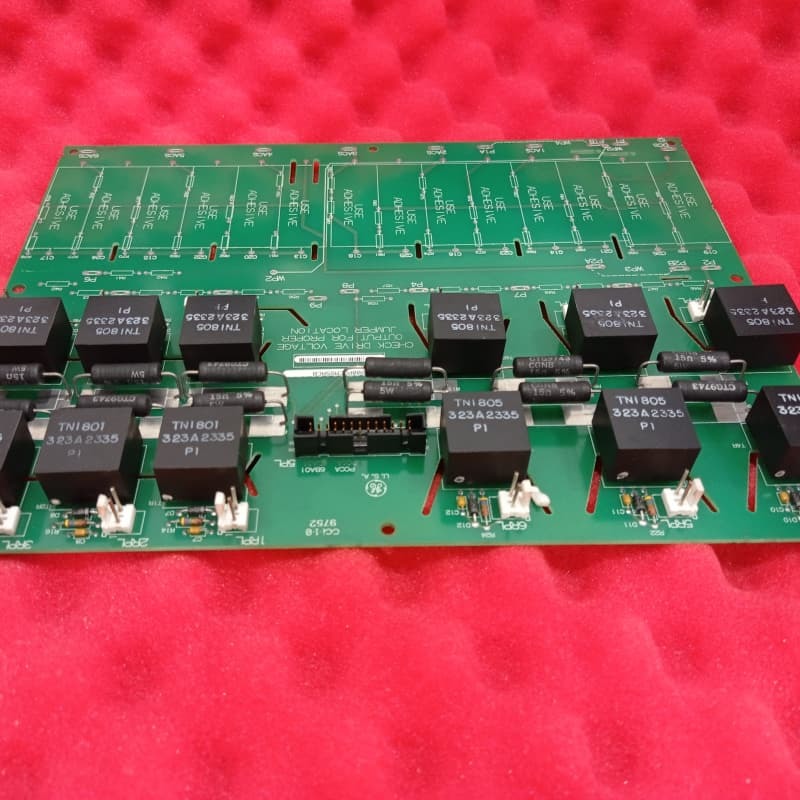

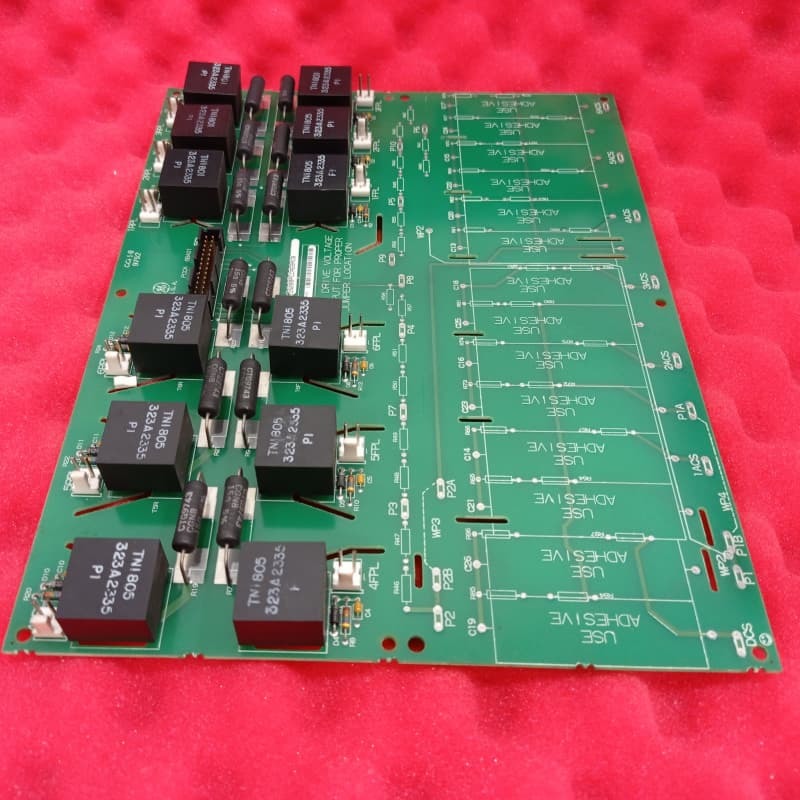

Physically, it includes four adjustable labeled jumpers for customization, plus snubber circuits and pulse transformers for voltage protection. Installation requires drive power-off; downtime is recommended for maintenance per GE guidelines.

Key Features:
Dual-Series Compatibility: Works with DC2000 series drives and Mark V systems, serving as a dedicated interface between DC200 drives and SCR power bridges.

Non-Repairable Design: Lacks serviceable parts; full replacement is required for malfunctions, simplifying maintenance decisions.

Customizable Jumpers: Four labeled jumpers enable configuration for different terminal connections, adapting to system requirements.

Voltage Protection: Integrates snubber circuits and pulse transformers to safeguard against voltage fluctuations, enhancing SCR bridge and drive reliability.

Maintenance-Aligned Installation: Power-off installation allows concurrent drive maintenance, optimizing downtime and extending drive service life.
