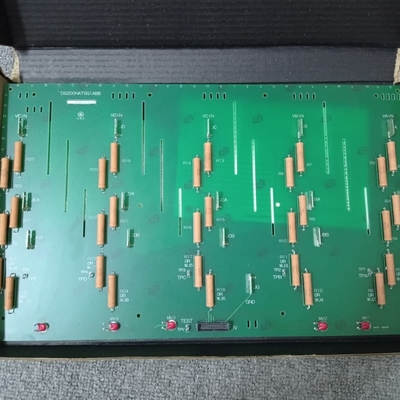

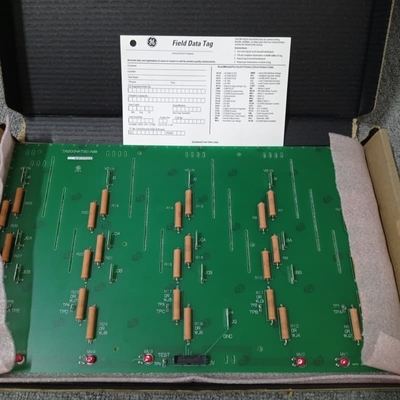

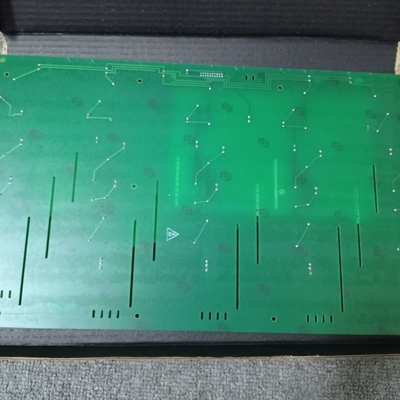

GE DS200NATOG1ABB Voltage Feedback Scaling Board 330mm x 200mm
| Place of Origin | US |
|---|---|
| Brand Name | GE |
| Model Number | DS200NATOG1ABB |
| Minimum Order Quantity | 1pc |
| Price | $1500 |
| Packaging Details | New and original factory, individual box packing |
| Delivery Time | 5-7days |
| Payment Terms | T/T |
| Supply Ability | 999pcs |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | GE DS200NATOG1ABB Voltage Feedback Scaling Board | Product ID | DS200NATOG1ABB |
|---|---|---|---|
| Series | Mark V | Function | Discrete Output Pack |
| Product Net Depth/Length | 330mm | Product Net Height | 200mm |
| Product Net Width | 100mm | Product Net Weight | 2kg |
| Warranty | 1year | ||
| Highlight | GE DS200NATOG1ABB voltage feedback board,GE turbine control scaling board,voltage feedback board with warranty |
||
Product Description
GE DS200NATOG1ABB Voltage Feedback Scaling Board
Product Details:
The GE DS200NATOG1ABB is a Voltage Feedback Scaling Board developed for GE’s LCI Innovation Series, designed to operate on VME platforms. Its core function is critical for SCR (Silicon-Controlled Rectifier) bridge systems: it reduces both DC and AC voltages from the bridge, ensuring accurate acquisition of feedback voltages—essential for maintaining stable control of the bridge’s operation.
Physically, the board features five identical series-connected resistor strings. Among these, one string includes an extra component dedicated to handling the negative and positive DC bus voltages, while the remaining strings correspond to each of the three AC phases. These resistor strings serve as the board’s input channels. Notably, while the input configuration follows a consistent design, the board’s output channels exhibit specific variances, tailored to meet the feedback signal requirements of the broader LCI system and VME platform integration.
