GE DS200ITXDG1AAA Turbine Control I/O Terminal Board 330mm x 100mm
| Place of Origin | USA |
|---|---|
| Brand Name | GE |
| Certification | COO |
| Model Number | DS200ITXDG1A |
| Minimum Order Quantity | 1 |
| Price | $1500 |
| Delivery Time | 5-7days |
| Payment Terms | T/T |
| Supply Ability | 999 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | GE DS200ITXDG1AAA Turbine Control I/O Terminal Board | Product ID | DS200ITXDG1AAA |
|---|---|---|---|
| Series | Mark V | Product Net Depth/Length | 330mm |
| Product Net Width | 100mm | Product Net Height | 200mm |
| Product Net Weight | 2kg | Warranty | 1 Year |
| Highlight | GE Turbine Control I/O board,Turbine Control terminal board with warranty,GE DS200ITXDG1AAA I/O board 330mm |
||
Product Description
GE DS200ITXDG1AAA Turbine Control I/O Terminal Board
Product Description:
The GE DS200ITXDG1AAA is a dual-functional board: primarily an IGBT Snubber Board for GE’s Speedtronic Mark V Turbine Control System and secondarily a Turbine Control I/O Terminal Board for the EX200 Series Speedtronic systems.It supports Mark V’s fault-tolerant design—including TMR with 2-out-of-3 voting for critical controls, and simplex setup for simpler systems.

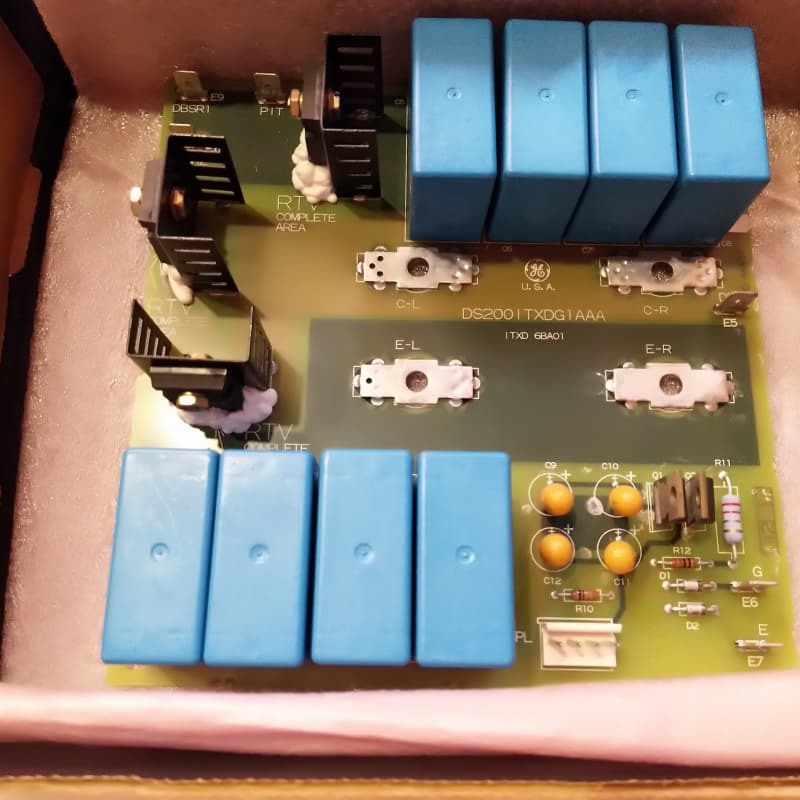

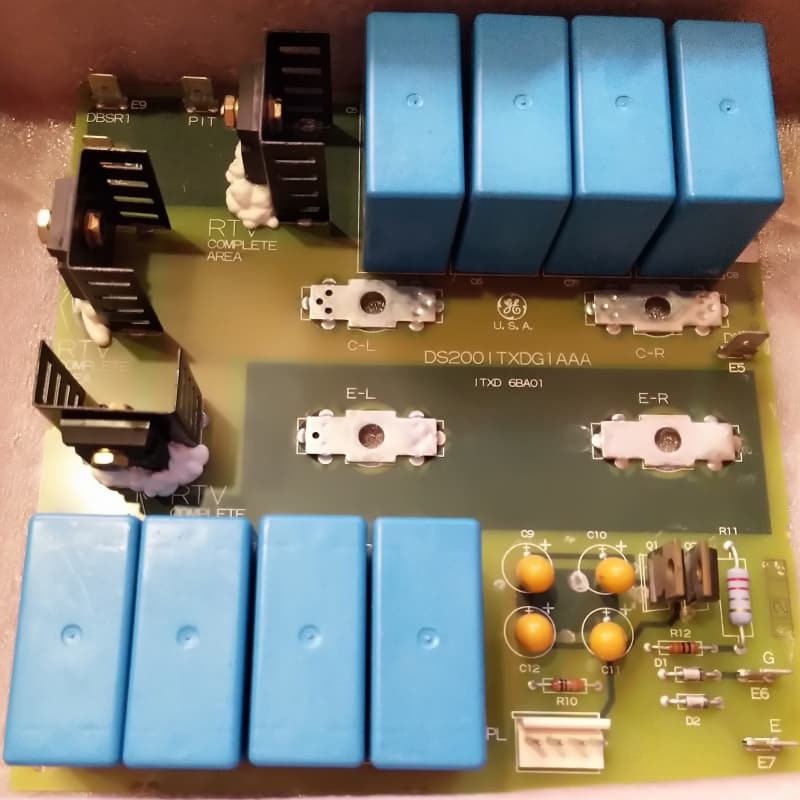

As an IGBT Snubber Board, its core role is suppressing voltage spikes from switch operations via energy-absorbing circuits, protecting IGBTs. It is a small auxiliary board that connects to a Mark V motherboard, featuring corner drill holes, edge indents, heat sinks and components like stab-on connectors, ceramic capacitors, diodes, vertical pin headers, and eight Wima FKP 1 polypropylene capacitors. As an I/O Terminal Board, it interfaces the control system with external devices, transmitting analog/digital signals and supporting fault detection.
Key Features:
IGBT Protection: Acts as a snubber to suppress voltage spikes and absorb switching energy, safeguarding IGBTs and enhancing system reliability.
Fault-Tolerant Support: Aligns with Mark V’s TMR/simplex architectures, enabling uninterrupted turbine operation even during component maintenance.
Specialized Componentry: Eight Wima FKP 1 capacitors (optimized for pulses) and heat sinks ensure stable performance in industrial conditions, with efficient thermal and energy management.
Dual I/O Functionality: As an I/O terminal board, it handles analog/digital signals, connects to field devices, and supports fault detection—critical for real-time turbine monitoring and predictive maintenance.
Modular & Compact Design: Small form factor with mounting holes for easy installation; modularity allows replacement/upgrades without disrupting the entire control system.
Technical Parameters
| Product ID | DS200ITXDG1AAA |
| Name | GE DS200ITXDG1AAA Turbine Control I/O Terminal Board |
| Series | Mark V |
| Product Net Height | 200mm |
| Product Net Width | 100mm |
| Product Net Depth/Length | 330mm |
| Product Net Weight | 2kg |
| Warranty | 1 Year |
