GE Mark V DS200IQXDG1AAA Inverter Snubber Card 330mm x 100mm
| Place of Origin | USA |
|---|---|
| Brand Name | GE |
| Certification | COO |
| Model Number | DS200IQXDG1AAA |
| Minimum Order Quantity | 1 |
| Price | $1500 |
| Delivery Time | 5-7days |
| Payment Terms | T/T |
| Supply Ability | 999 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | GE Mark V DS200IQXDG1AAA INVERTER SNUBBER CARD | Product ID | DS200IQXDG1AAA |
|---|---|---|---|
| Series | Mark V | Product Net Depth/Length | 330mm |
| Product Net Width | 100mm | Product Net Height | 200mm |
| Product Net Weight | 2kg | Warranty | 1 Year |
| Highlight | GE Mark V inverter snubber card,DS200IQXDG1AAA snubber card 330mm,GE turbine control snubber card |
||
Product Description
GE Mark V DS200IQXDG1AAA Inverter Snubber Card 330mm x 100mm
GE Mark V DS200IQXDG1AAA Inverter Snubber Card for Turbine Control Systems
The GE DS200IQXDG1AAA is an Inverter Snubber Card part of GE's Mark V Speedtronic Control Systems—used for medium-to-large gas/steam turbines and the EX2000 subset of Mark V. As a revised variant of its base model, its core role is mitigating switching transients in inverters: it uses passive components to suppress voltage spikes, absorb excess switching energy, and reduce EMI, protecting power semiconductors and ensuring stable inverter operation.

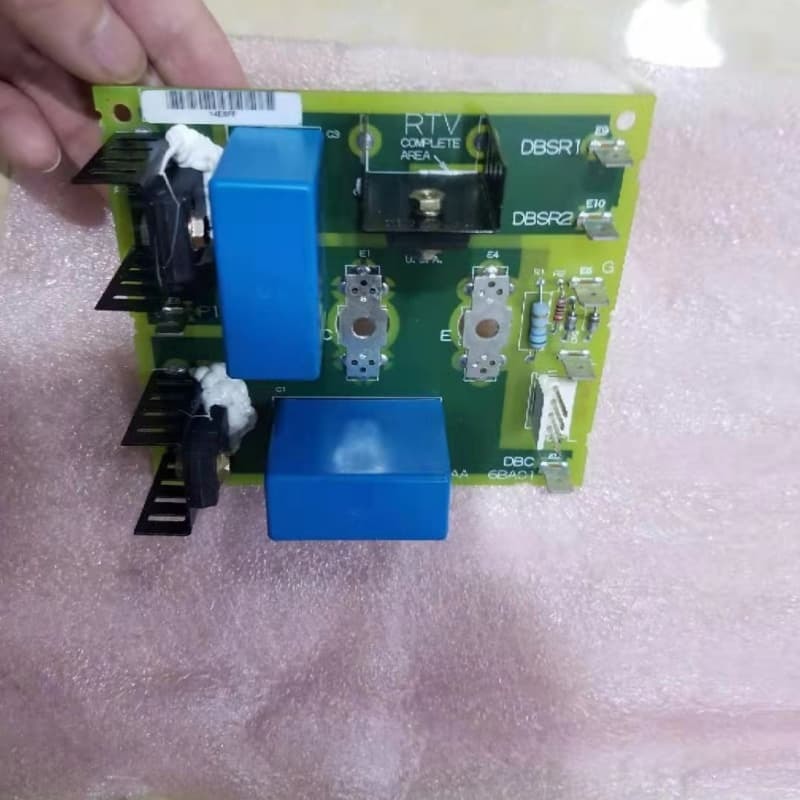

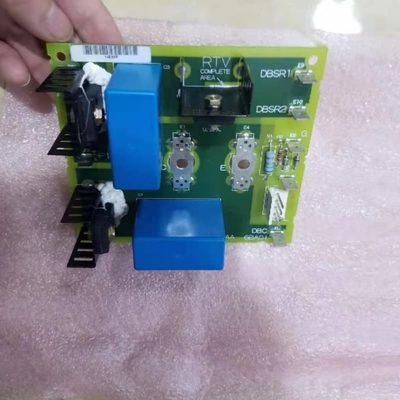

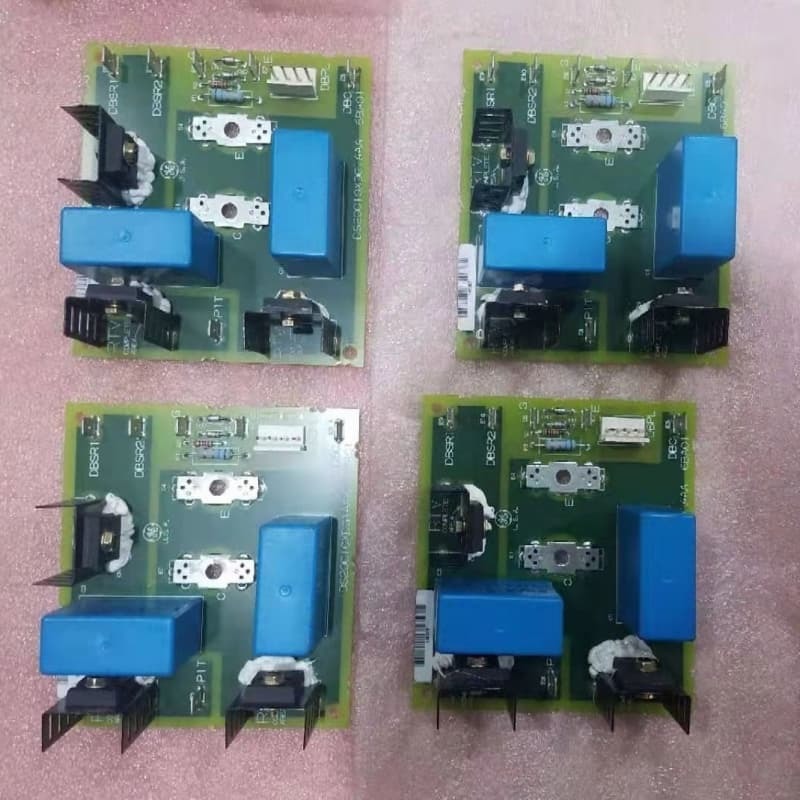

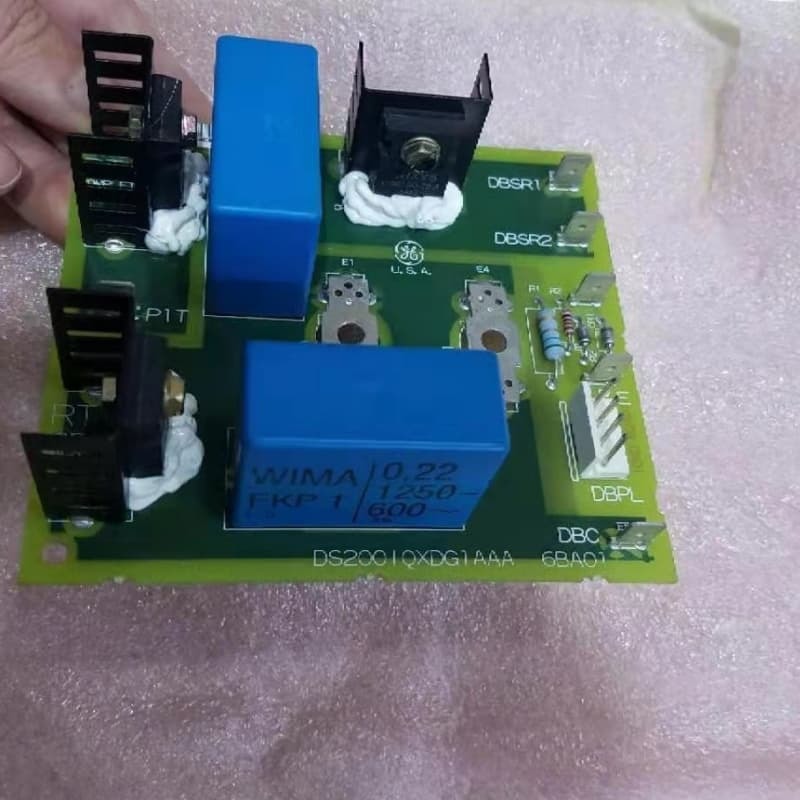

Physically, it is a small board with corner mounting holes, featuring four connection terminals, two vertical pin headers, five stab-on connectors, three heat sinks with transistors, and two WIMA FKP 1 polypropylene capacitors. The Mark V's triple redundancy lets it operate without turbine shutdown during component repair.
Key Features
- Inverter Protection Core: Suppresses voltage spikes, absorbs switching energy, and reduces EMI/transients, safeguarding IGBTs/MOSFETs and stabilizing inverter performance.
- Specialized Componentry: Two WIMA FKP 1 capacitors and heat sinks optimize pulse handling and thermal management for industrial conditions.
- Compact, Mountable Design: Small form factor with corner holes for easy installation; diverse connectors enable seamless system linking.
- Redundancy Support: Aligns with Mark V's triple redundant architecture, allowing repairs without turbine shutdown—critical for industrial uptime.
Technical Parameters
| Product ID | DS200IQXDG1AAA |
| Name | GE Mark V DS200IQXDG1AAA INVERTER SNUBBER CARD |
| Series | Mark V |
| Product Net Height | 200mm |
| Product Net Width | 100mm |
| Product Net Depth/Length | 330mm |
| Product Net Weight | 2kg |
| Warranty | 1 Year |
