GE DS200IIBDG1ADA IGBT Gate Driver Board 330mm x 200mm Mark V
| Place of Origin | US |
|---|---|
| Brand Name | GE |
| Model Number | DS200IIBDG1ADA |
| Minimum Order Quantity | 1pc |
| Price | $1500 |
| Packaging Details | New and original factory, individual box packing |
| Delivery Time | 5-7days |
| Payment Terms | T/T |
| Supply Ability | 999pcs |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | GE DS200IIBDG1ADA PCB IGBT Gate Driver Board | Product ID | DS200IIBDG1ADA |
|---|---|---|---|
| Series | Mark V | Function | Discrete Output Pack |
| Product Net Depth/Length | 330mm | Product Net Height | 200mm |
| Product Net Width | 100mm | Product Net Weight | 2kg |
| Warranty | 1year | ||
| Highlight | GE IGBT Gate Driver Board,Mark V Turbine Control Board,330mm x 200mm Gate Driver |
||
Product Description
GE DS200IIBDG1AEDA IGBT Gate Driver Board 330mm x 200mm
Product Description

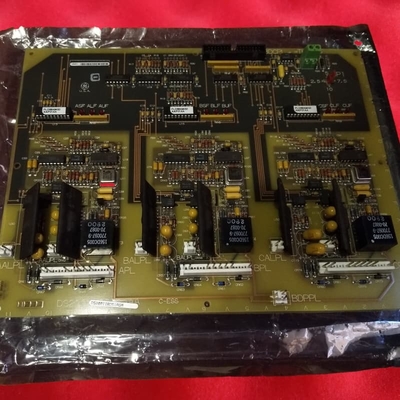

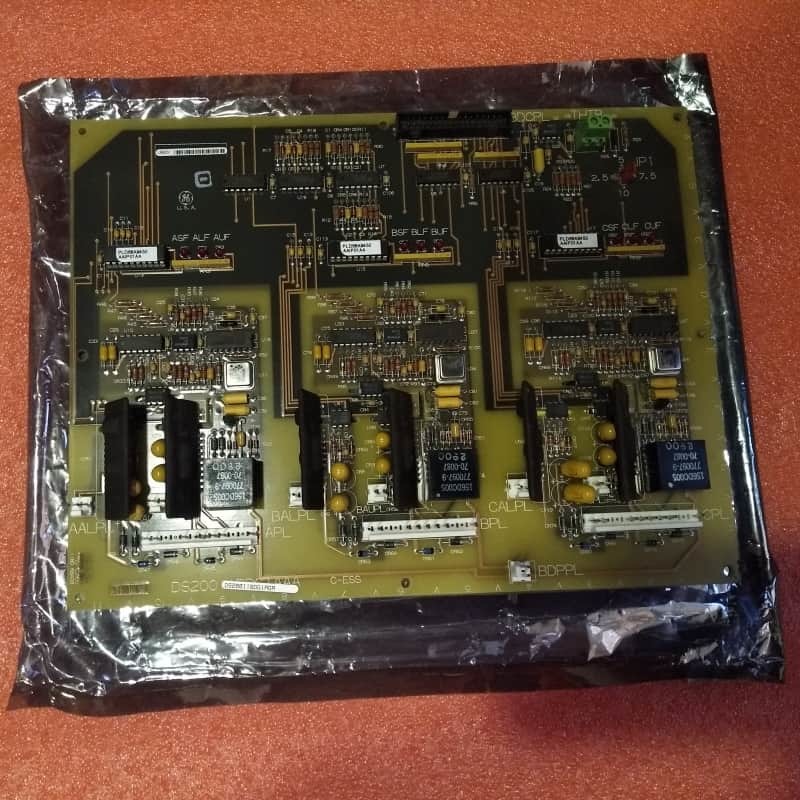

The GE DS200IIBDG1ADA is an IGBT (Insulated Gate Bipolar Transistor) Driver Board designed for drive control systems, specifically GE's Mark V Series. This revised version of the parent DS200IIBDG1 board features three significant product updates.
Core Functionality
The board delivers precise control signals to IGBT gate terminals, synchronizing with system needs to regulate switching frequency and duty cycle. It also monitors key parameters including temperature, voltage, and current for safe, efficient IGBT operation.
Physical Specifications
- Dimensions: 330mm x 200mm
- 34-pin connector for ribbon cable connection

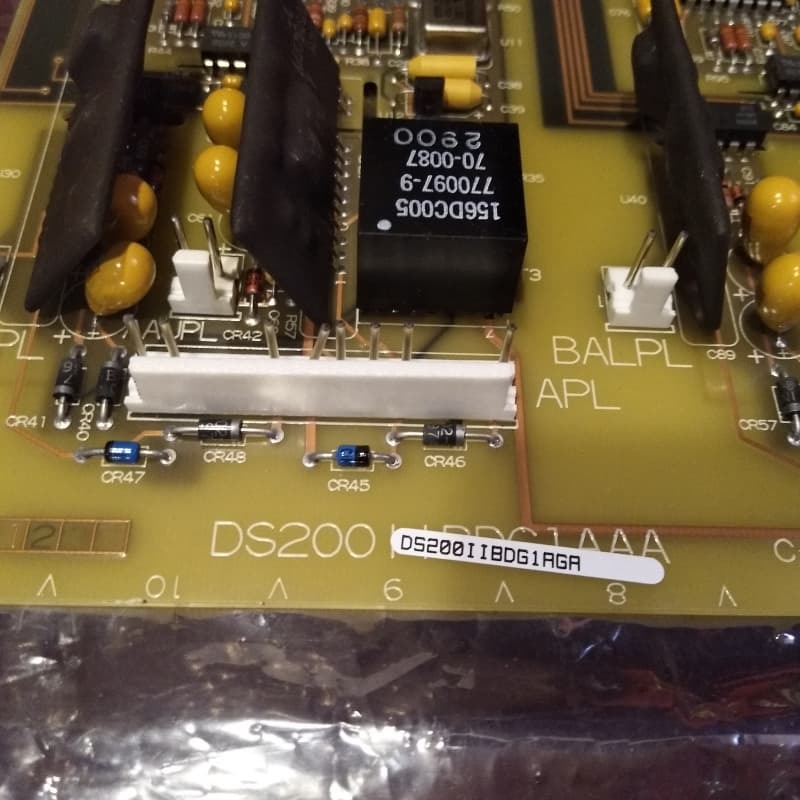

- Three 8-pin connectors labeled APL, BPL, CPL for system communication
- Nine red indicator LEDs for status monitoring
- Thick standard PCB coating for hardware protection
Key Features
- Precise IGBT Control: Generates PWM signals to regulate IGBT switching, optimizing efficiency
- Parameter Monitoring: Tracks temperature, voltage, and current to prevent IGBT damage
- Structured Connectivity: Multiple connectors enable secure system integration
- Visual Status Indicators: Red LEDs provide clear operational feedback
- Protective Design: Thick PCB coating enhances durability in industrial environments
Safety Notes
Ribbon cables must be gripped by connectors to avoid damage. The board is high-voltage - no contact with cabinet components is allowed during operation.
Compatible Models
| DS200DTBBG1ABB | DS200TCCAF1BDF |
| DS200SDCIG2AFB | IS200ISBBG1AAB |
| DS200SDCIG2AHB | IS200CABPG1BAA |
| DS200BDAAG1AAA | IS200DSFCG1AEB |
| DS200SIOBH1ABA | IS200DRLYH1BBB |
