GE Mark V DS200DTBDG1A Termination Module 330mm x 100mm x 200mm
| Place of Origin | USA |
|---|---|
| Brand Name | GE |
| Certification | COO |
| Model Number | DS200DTBDG1A |
| Minimum Order Quantity | 1 |
| Price | $2000 |
| Delivery Time | 5-7days |
| Payment Terms | T/T |
| Supply Ability | 999 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | GE MARK V DS200DTBDG1A Contact Output Expansion Termination Module | Product ID | DS200DTBDG1A |
|---|---|---|---|
| Series | Mark V | Product Net Depth/Length | 330mm |
| Product Net Width | 100mm | Product Net Height | 200mm |
| Product Net Weight | 2kg | Warranty | 1 Year |
| Highlight | GE Mark V termination module,DS200DTBDG1A turbine control module,GE turbine termination module with warranty |
||
Product Description

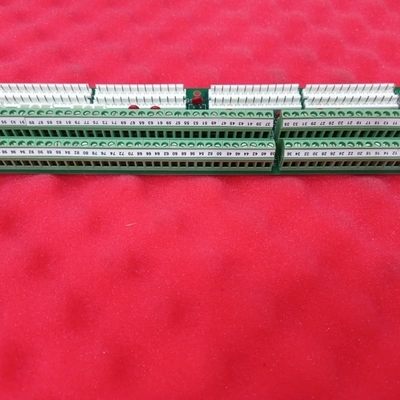

GE MARK V DS200DTBDG1A Contact Output Expansion Termination Module
Product Description:
The GE DS200DTBDG1A is a Contact Output Expansion Termination Module part of GE’s Mark V/Mark V LM Series, designed for turbine control systems. As a revised version of the original DS200DTBDG1, it is installed at locations Q11, Q21, and Q51, connecting to 30 relays on the TCRA board.
Its core role is expanding contact output capabilities: 16 of 30 outputs can be configured as solenoids via hardware jumpers, and two additional outputs support ignition converters when J19/J20 are linked.

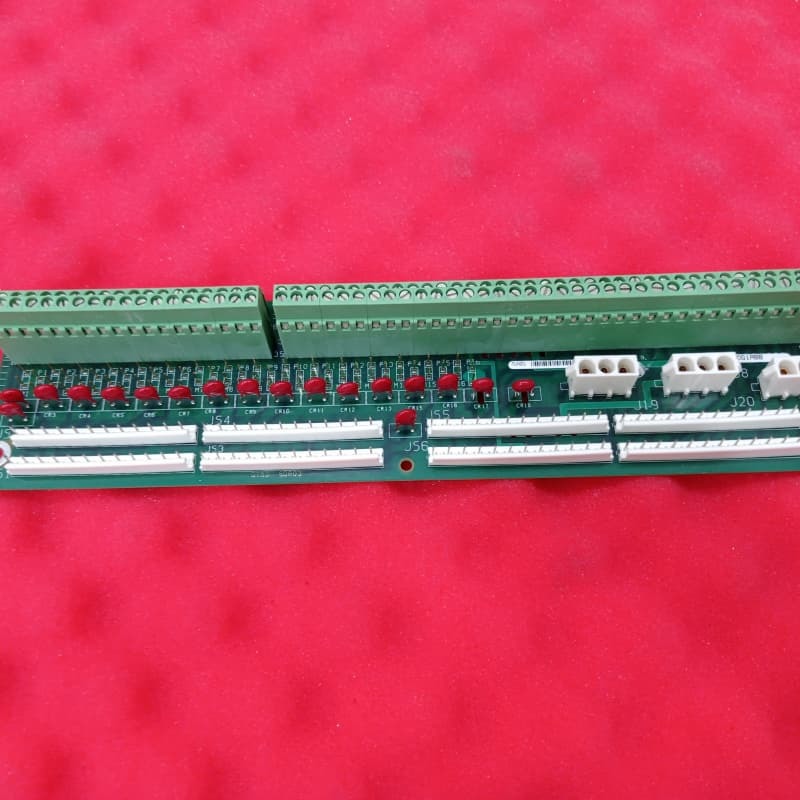

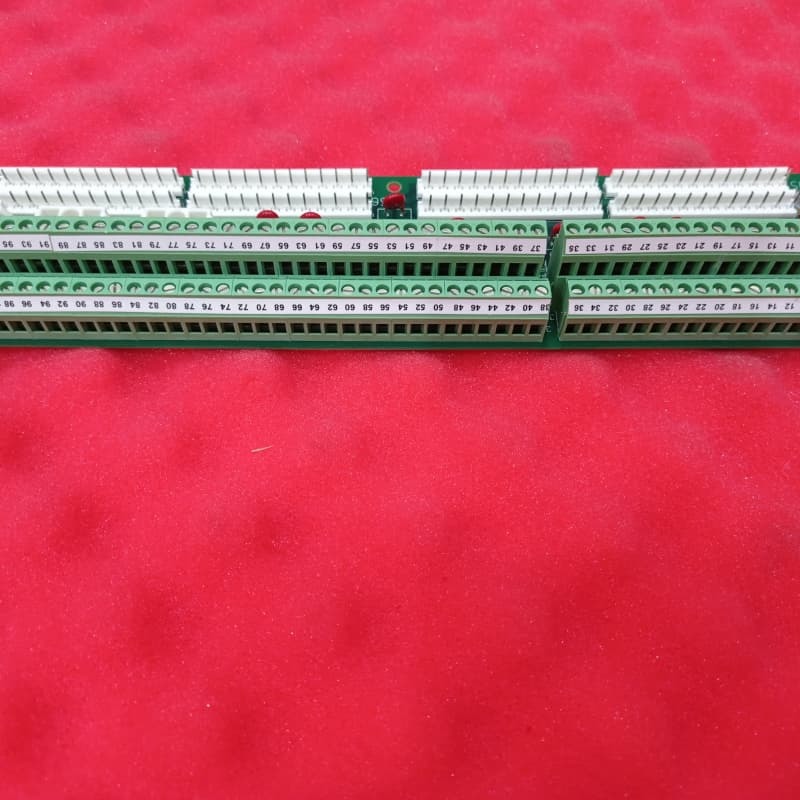

Physically, it features two terminal blocks, multiple test points, 2 jumpers, 3 34-pin connectors, and 8 connectors for TCRA relay signals. Testing requires trained personnel with calibrated equipment, static-free surfaces, and reference to factory manuals using TP IDs for circuit diagnostics.
Key Features:
Mark V Series Integration: Tailored for Mark V/Mark V LM turbine controls, enabling seamless connection to TCRA relays and expanding output capacity in Q11/Q21/Q51 locations.
Configurable Outputs: 16 outputs configurable as solenoids via jumpers; two additional outputs for ignition converters, enhancing flexibility for turbine-specific needs.

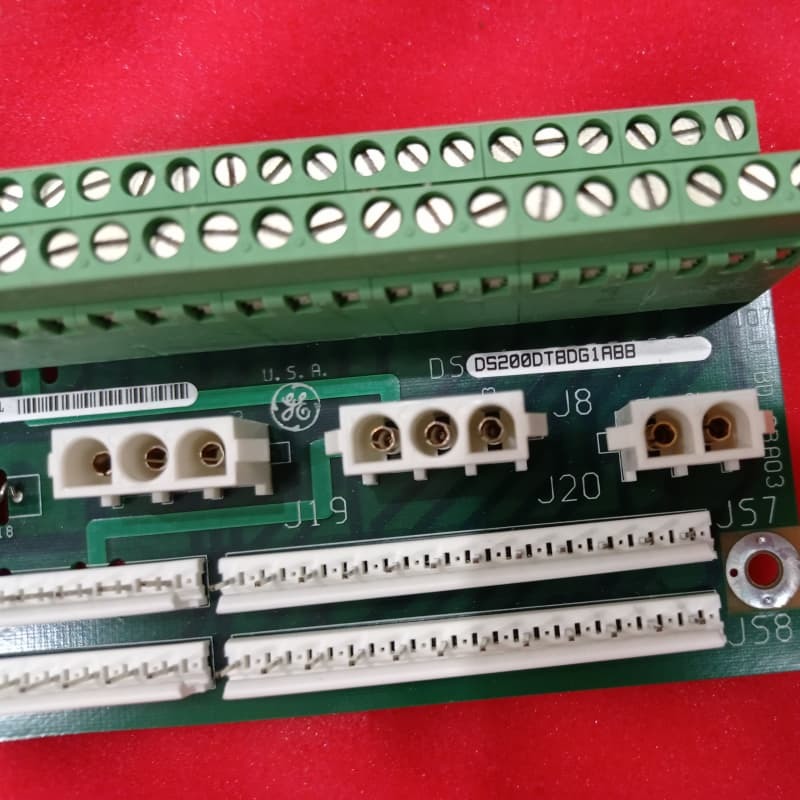

Dedicated Connectivity: Includes JS1–JS8,solenoid powe J8, and J19/J20, ensuring precise signal/power routing within the control system.
Diagnostic Capabilities: Test points (TP-labeled) with factory-documented functions enable targeted troubleshooting, restricted to trained servicers with proper equipment.
High-Density Termination: Two terminal blocks support extensive signal wiring, centralizing output management for complex turbine control setups.
Revision-Enhanced Design: Builds on the original DS200DTBDG1 with a functional update, improving reliability for contact output expansion in turbine operations.
Technical Parameters:
| Product Name: | GE MARK V DS200DTBDG1A Contact Output Expansion Termination Module |
| Product ID: | DS200DTBDG1A |
| Product Series: | Mark V |
| Product Net Weight: | 2kg |
| Product Net Width: | 100mm |
| Product Net Height: | 200mm |
| Product Net Depth/Length: | 330mm |
| Warranty: | 1 Year |
Applications:
The GE MARK V DS200DTBDG1A CONTACT OUTPUT EXPANSION TERMINATION MODULE is one of the advanced models of the GE Turbine Control Unit series. This model provides high-speed digital processing and communication capabilities, which allow for accurate and rapid control of the gas turbine. This product is made in the USA and is certified with COO, which ensures its quality and reliability.
