GE DS200CTBAG1ACC Termination Board 330mm x 100mm for Mark V
| Place of Origin | USA |
|---|---|
| Brand Name | GE |
| Certification | COO |
| Model Number | DS200CTBAG1ACC |
| Minimum Order Quantity | 1 |
| Price | $1000 |
| Delivery Time | 5-7days |
| Payment Terms | T/T |
| Supply Ability | 999 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | GE DS200CTBAG1ACC Termination Board | Product ID | DS200CTBAG1ACC |
|---|---|---|---|
| Series | Mark V | Product Net Depth/Length | 330mm |
| Product Net Width | 100mm | Product Net Height | 200mm |
| Product Net Weight | 2kg | Warranty | 1 Year |
| Highlight | GE Mark V termination board,DS200CTBAG1ACC termination board,GE turbine control board 330mm |
||
Product Description

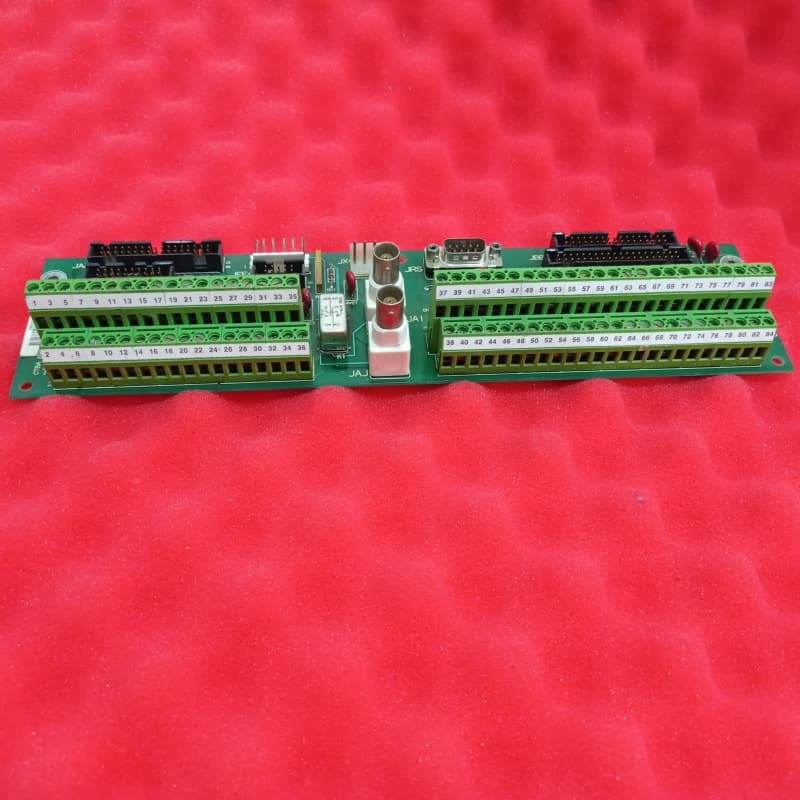

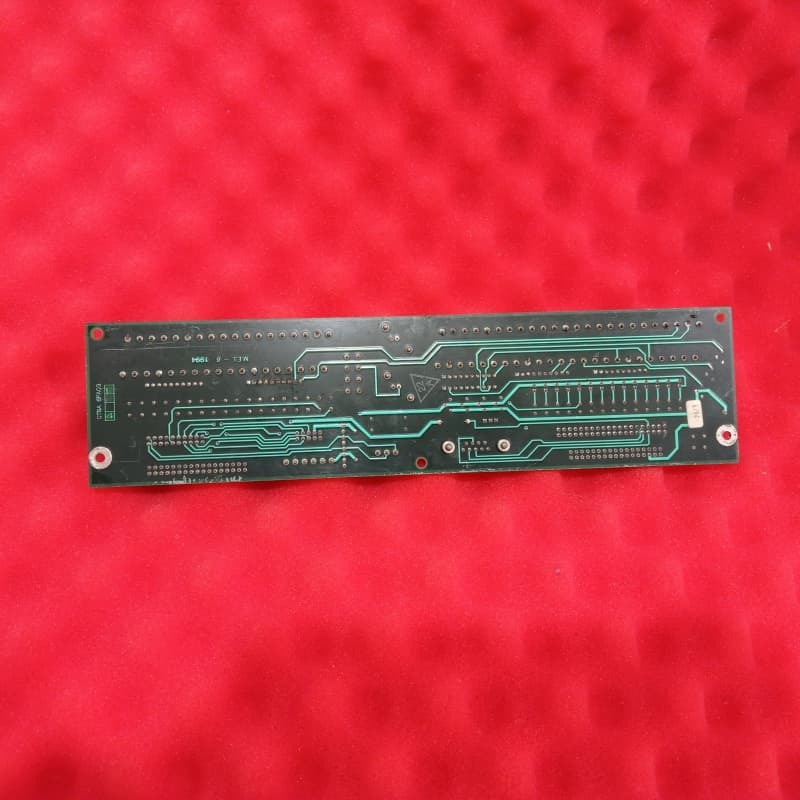

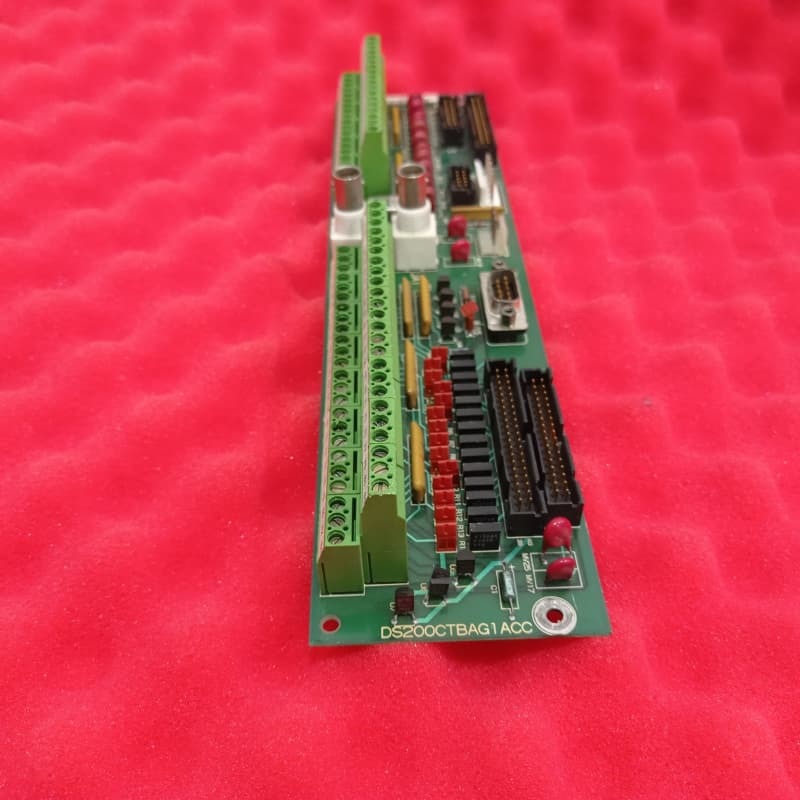

GE DS200CTBAG1ACC Termination Board
The GE DS200CTBAG1ACC is an Analog Termination Board (CTBA) exclusively designed for SPEEDTRONIC Mark V LM Turbine Control systems. It's used to manage wind, steam, and gas turbine automated drives, and part of GE's final Mark series leveraging its patented Speedtronic technology.
As a termination board for the system's common data processor, it resides in the Mark V's C/R5 core, facilitating critical signal transmission and power monitoring.
Key Functions
- Handles 4-20 mA inputs/outputs, IONET/ARCNET communication links, and shaft voltage/current signals
- Features an RS-232 9-pin D-shell port for TIMN diagnostics
- Includes 23 red varistors for voltage suppression, 7 diodes, and resistors/capacitors for residual voltage limitation
- Two factory-drilled holes per short end for secure mounting
- 15 hardware jumpers for customization with single A-rated functional revision
- Bypass relay ensures COREBUS communication if power is lost
Product Features
- Comprehensive Signal Management: Handles 4-20 mA I/O, IONET/ARCNET communication, and shaft voltage/current signals, serving as a central termination hub
- Diagnostic & Protective Components: Includes RS-232 port for TIMN diagnostics, varistors/diodes/resistors for voltage suppression/limitation, and bypass relay for COREBUS communication redundancy
- Configurable Jumpers: 15 jumpers enable custom signal routing, adapting to specific turbine control needs
- Mark V Connector Ecosystem: Features dedicated connectors for interfacing with other Mark V boards
- Secure Mounting: Factory-drilled holes ensure stable installation in the system's core
Technical Specifications
| Name | GE DS200CTBAG1ACC Termination Board |
| Product ID | DS200CTBAG1ACC |
| Series | Mark V |
| Product Net Height | 200mm |
| Product Net Depth/Length | 330mm |
| Product Net Width | 100mm |
| Product Net Weight | 2kg |
| Warranty | 1 Year |
