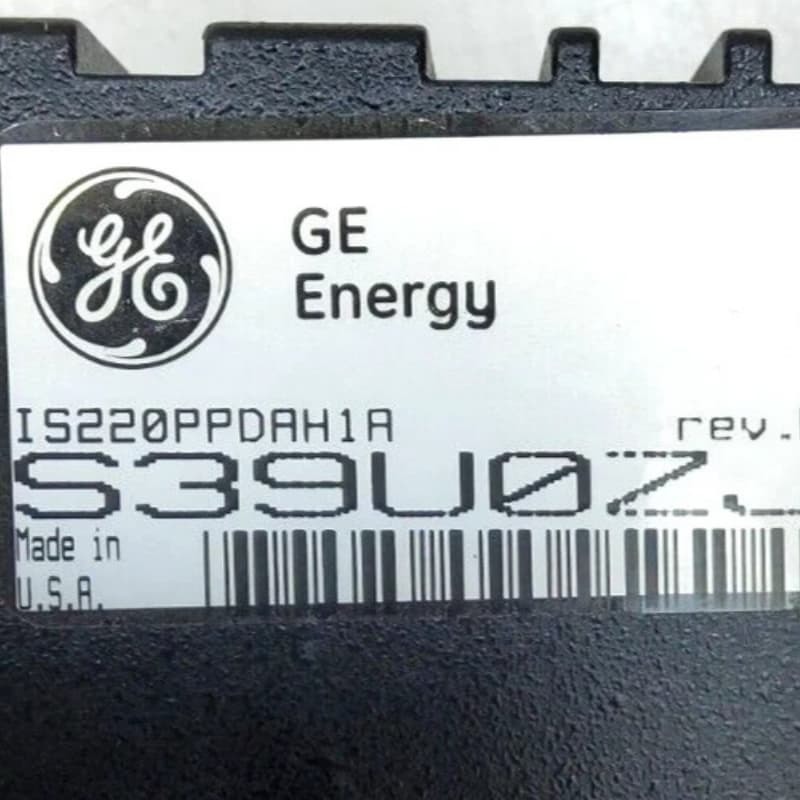

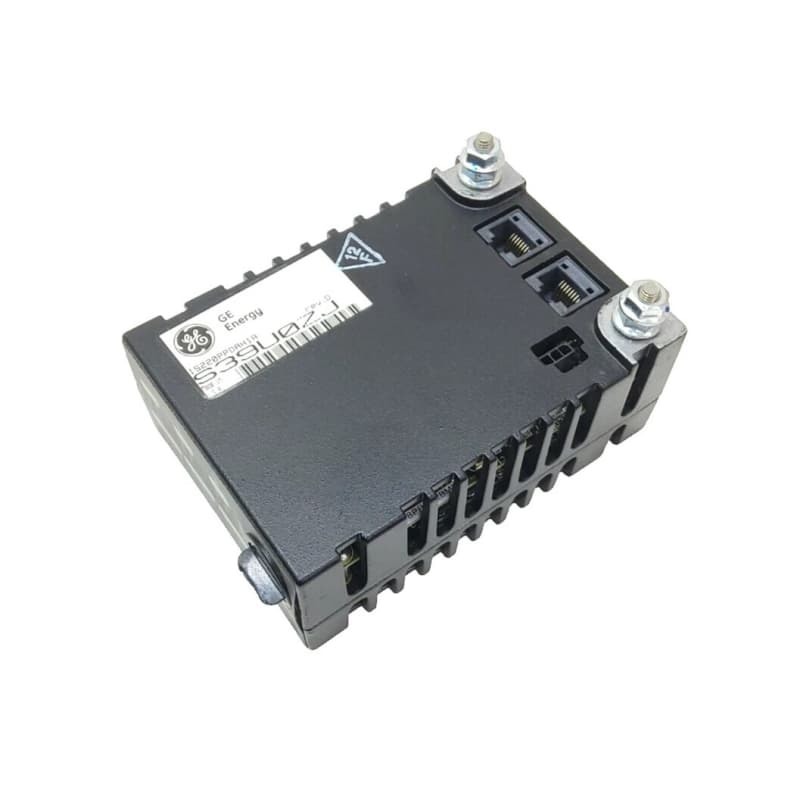

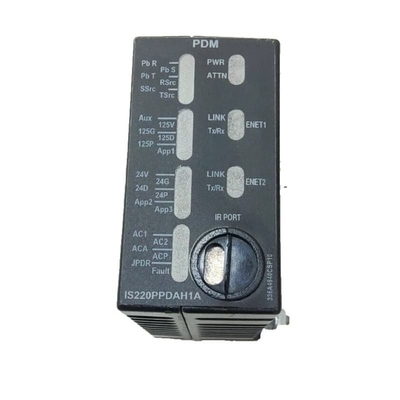

GE IS220PPDAH1A Mark VI Input Terminal Board 330mm x 200mm
| Place of Origin | US |
|---|---|
| Brand Name | GE |
| Model Number | IS220PPDAH1A |
| Minimum Order Quantity | 1pc |
| Price | $7000 |
| Packaging Details | New and original factory, individual box packing |
| Delivery Time | 5-7days |
| Payment Terms | T/T |
| Supply Ability | 999pcs |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | GE IS220PPDAH1A Power Distribution System Feedback | Product ID | IS220PPDAH1A |
|---|---|---|---|
| Series | Mark VI | Function | Input Terminal Board |
| Product Net Depth/Length | 330mm | Product Net Height | 200mm |
| Product Net Width | 100mm | Product Net Weight | 2kg |
| Warranty | 1year | ||
| Highlight | GE Mark VI input terminal board,turbine control terminal board 330mm,GE IS220PPDAH1A terminal board |
||
Product Description
GE IS220PPDAH1A Power Distribution System Feedback
Product Specifications
| Attribute | Value |
|---|---|
| Name | GE IS220PPDAH1A Power Distribution System Feedback |
| Product ID | IS220PPDAH1A |
| Series | Mark VI |
| Function | Input Terminal Board |
| Product Net Depth/Length | 330mm |
| Product Net Height | 200mm |
| Product Net Width | 100mm |
| Product Net Weight | 2kg |
| Warranty | 1 year |
Product Overview
The GE IS220PPDAH1A is an I/O Pack under the Mark VIe Series, designed for GE's distributed control systems. Manufactured in the U.S., this component serves as a feedback hub, receiving inputs from up to 6 power distribution boards or feedback signal sets.
Key Features
- Feedback & Redundancy: Receives data from 6 power boards with redundant Ethernet for controllers
- Comprehensive Monitoring: Tracks ground faults, power supply health, bus voltages, and branch circuits
- Plug-and-Play Identification: Uses electronic IDs to auto-recognize connected power boards
- Advanced Diagnostics: Reports faults to controllers and prevents AC/DC cross-connection
- Industrial Design: Rugged construction for harsh environments in wind, gas, and steam turbines
Technical Details
Mounted on 28V DC power distribution boards via DC-62 pin connectors, the IS220PPDAH1A supports 1-2 Ethernet connections and features soft-start to limit power inrush. Configurable via ToolboxST software, it requires compatible versions for BPPB/BPPC processor boards and uses 50-pin ribbon cables for inter-board connections.
Compatible Components
DS200DTBBG1ABB
DS200TCCAF1BDF
DS200SDCIG2AFB
IS200ISBBG1AAB
DS200SDCIG2AHB
IS200CABPG1BAA
DS200BDAAG1AAA
IS200DSFCG1AEB
DS200SIOBH1ABA
IS200DRLYH1BBB
