GE IS220PPROS1B Emergency Turbine Protection I/O Pack Mark VIe
| Place of Origin | USA |
|---|---|
| Brand Name | GE |
| Certification | COO |
| Model Number | IS220PPROS1B |
| Minimum Order Quantity | 1 |
| Price | $5000 |
| Delivery Time | 5-7days |
| Payment Terms | T/T |
| Supply Ability | 999 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | GE IS220PPROS1B Emergency Turbine Protection I/O Pack | Product ID | IS220PPROS1B |
|---|---|---|---|
| Series | Mark VIe | Product Net Weight | 2kg |
| Warranty | 1 Year | Product Net Depth/Length | 330mm |
| Product Net Width | 100mm | Product Net Height | 200mm |
| Highlight | GE Mark VIe turbine protection module,emergency turbine I/O pack,GE turbine control system |
||
Product Description

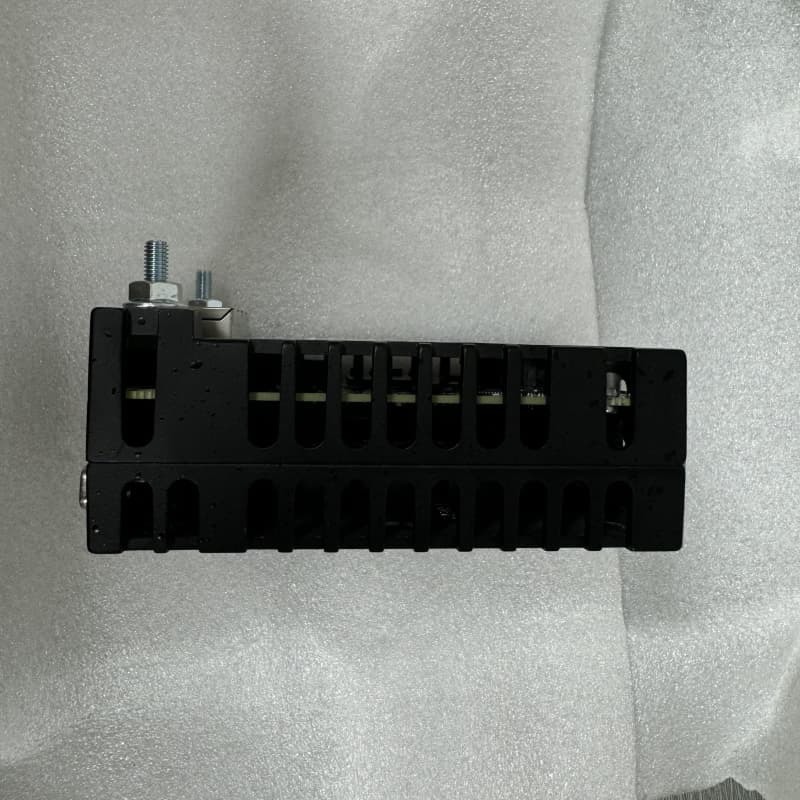

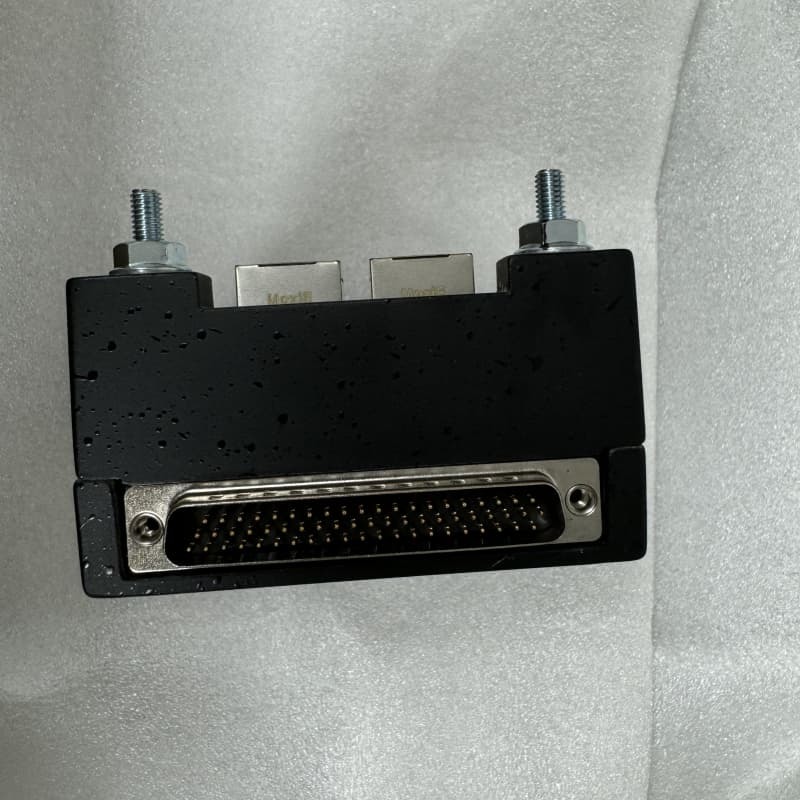

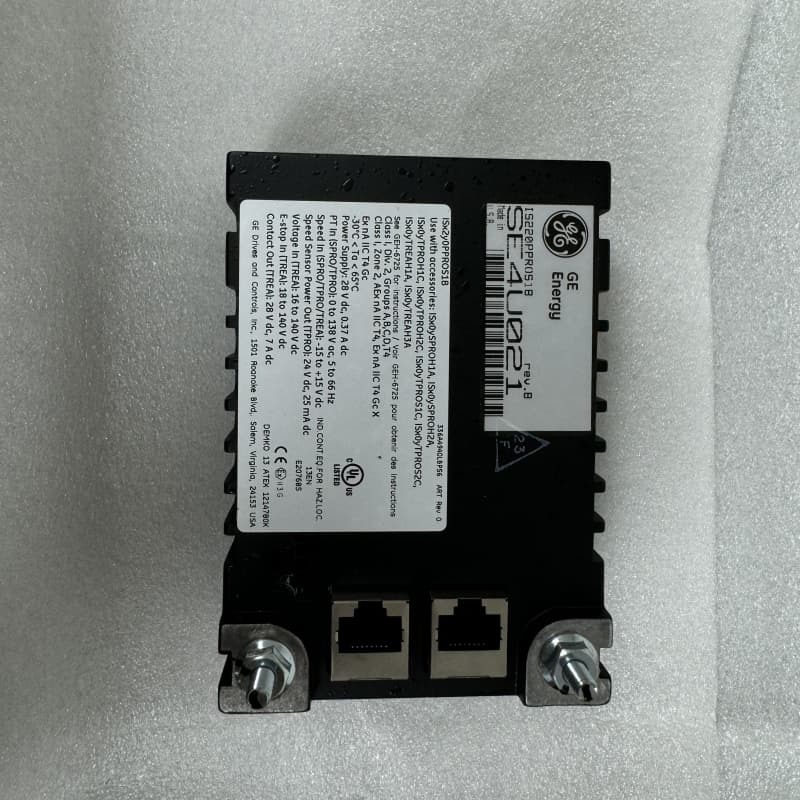

GE IS220PPROS1B Emergency Turbine Protection I/O Pack
Product Specifications
| Attribute | Value |
|---|---|
| Name | GE IS220PPROS1B Emergency Turbine Protection I/O Pack |
| Product ID | IS220PPROS1B |
| Series | Mark VIe |
| Product Net Weight | 2kg |
| Warranty | 1 Year |
| Dimensions (L x W x H) | 330mm x 100mm x 200mm |
Product Overview
The GE IS220PPROS1B is an Emergency Turbine Protection I/O Pack from the Mark VIe Series, designed for GE Distributed Control Systems. This critical component provides backup overspeed protection, generator synchronization verification, and independent monitoring of primary controls to ensure maximum turbine safety.
Key Features
- Core Protection Functions: Delivers backup overspeed protection, generator synchronization verification, and independent oversight of primary controls
- Redundancy & Compatibility: Supports TMR and simplex configurations; mounts directly on SPRO/TREA terminal boards with cable compatibility for TREG, TREL, TRES, and TREA
- Installation Flexibility: Threaded post mounting with bracket adjustment to prevent connector stress; connects to Ethernet and power with soft-start current limiting
- Reliable Operation: Integrated soft-start circuits, self-tests, and application code matching; dual 10/100 Ethernet ports with fault indication
- Robust Hardware: High-speed CPU, watchdog timer, temperature sensor, status LEDs, and electronic ID reading; local power supplies with monitoring for harsh environments
