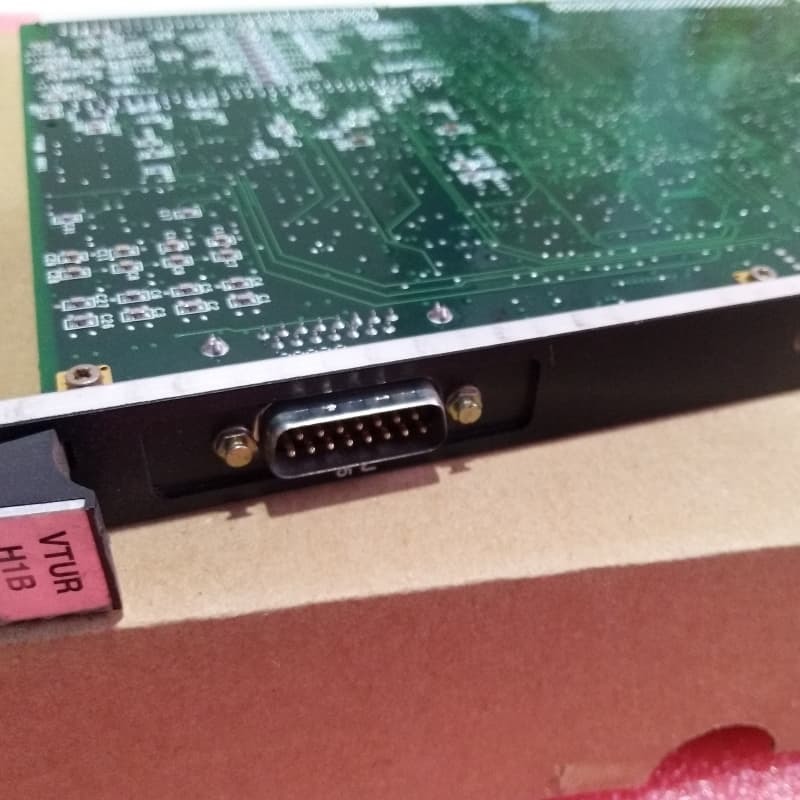

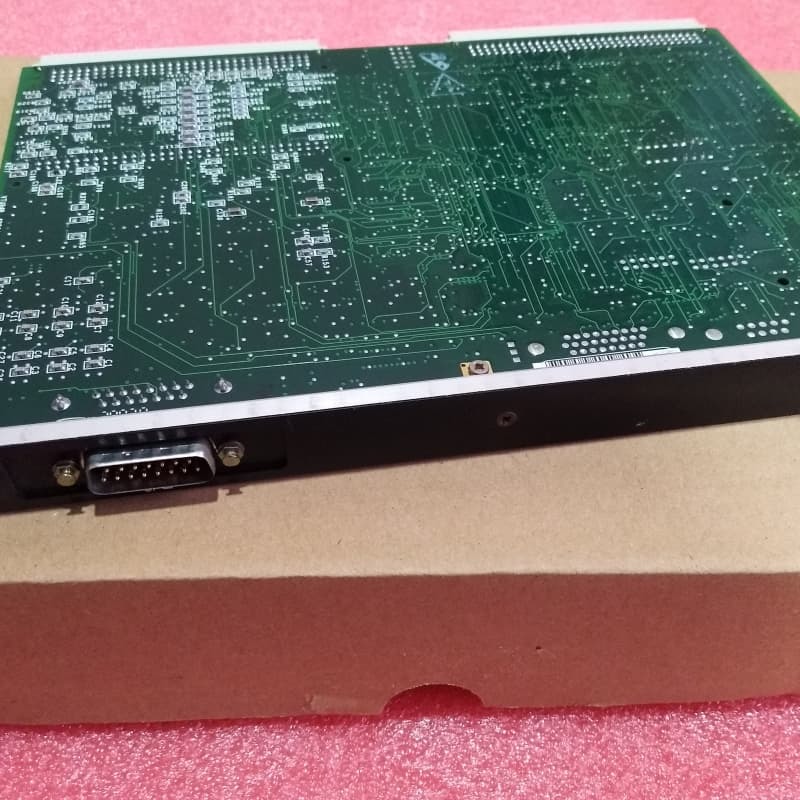

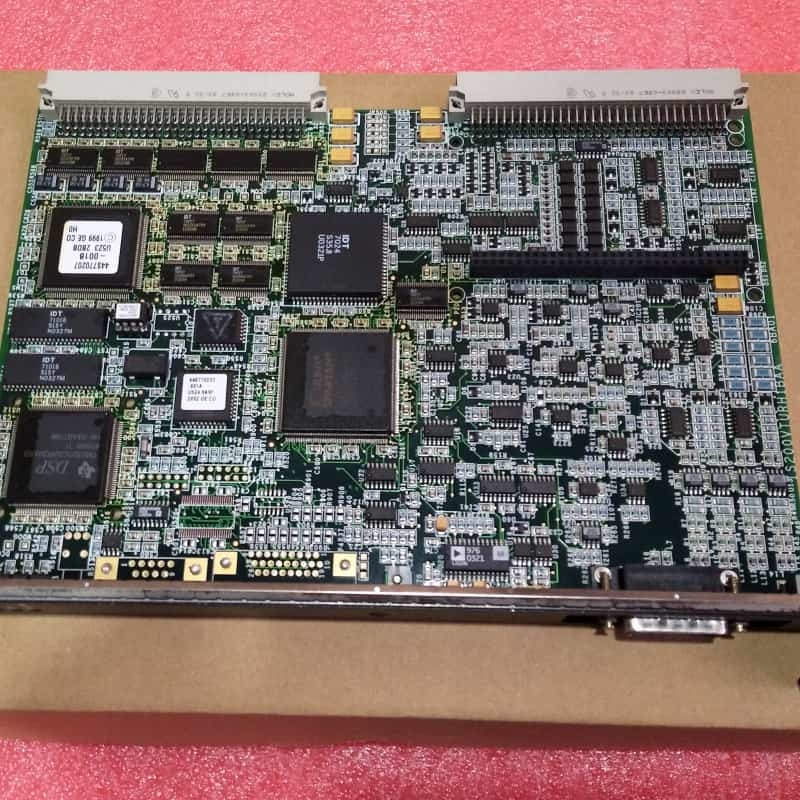

GE IS200VTURH1BAA Mark VI Primary Trip Board

  • GE IS200VTURH1BAA Mark VI Primary Trip Board
  • GE IS200VTURH1BAA Mark VI Primary Trip Board
  • GE IS200VTURH1BAA Mark VI Primary Trip Board
Place of Origin US
Brand Name GE
Model Number IS200VTURH1BAA
Minimum Order Quantity 1pc
Price $3800
Packaging Details New and original factory, individual box packing
Delivery Time 5-7days
Payment Terms T/T
Supply Ability 999pcs

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name GE IS200VTURH1BAA Turbine Specific Primary Trip Board Product ID IS200VTURH1BAA
Series Mark VI Function Primary Trip Board
Product Net Depth/Length 330mm Product Net Height 200mm
Product Net Width 100mm Product Net Weight 2kg
Warranty 1year
Highlight

GE Mark VI trip board

,

turbine control primary board

,

VTURH1BAA trip module
Leave a Message
Product Description
GE IS200VTURH1BAA Turbine Specific Primary Trip Board
Product Specifications
Attribute Value
Name GE IS200VTURH1BAA Turbine Specific Primary Trip Board
Product ID IS200VTURH1BAA
Series Mark VI
Function Primary Trip Board
Product Net Depth/Length 330mm
Product Net Height 200mm
Product Net Width 100mm
Product Net Weight 2kg
Warranty 1 year
Product Description

The GE IS200VTURH1BAA is a turbine-specific primary trip board in the Mark VI Speedtronic system, critical for gas, steam, and wind turbine safety and control.

Key Functions
  • Oversees turbine speed measurement with primary overspeed protection
  • Manages automatic generator synchronization
  • Controls main breaker operation
  • Monitors shaft voltage and current
  • In gas turbines, manages 8 Geiger Mueller flame detectors linked to TRPG
Technical Features
  • Safety & Protection: Measures speed for overspeed trips, controls 3 trip relays, and monitors flame detectors/shaft parameters to prevent hazards
  • Synchronization: Enables auto/manual generator synchronization with voltage and speed checks, using relays for safe breaker closure
  • Redundancy Support: Works in TMR and simplex setups, ensuring reliability via redundant trip mechanisms
  • Versatile Monitoring: Integrates voltage sensors and flame detectors for gas turbine-specific safety
  • Easy Installation: Mounts in VME racks with lever-seated connectors and captive screws; front-panel LEDs aid diagnostics
System Integration

Compatible with simplex and TMR systems, it controls 3 primary overspeed trip relays on TRPG, triggering emergency solenoids. It integrates generator/bus voltage sensors with 1,500V isolation, supporting 1,000ft wiring. Synchronization modes ensure safe breaker operation, with relays K25/K25A/K25P coordinating checks.

GE IS200VTURH1BAA Mark VI Primary Trip Board 0 GE IS200VTURH1BAA Mark VI Primary Trip Board 1
Compatible Components
DS200DTBBG1ABB
DS200TCCAF1BDF
DS200SDCIG2AFB
IS200ISBBG1AAB
DS200SDCIG2AHB
IS200CABPG1BAA
DS200BDAAG1AAA
IS200DSFCG1AEB
DS200SIOBH1ABA
IS200DRLYH1BBB
