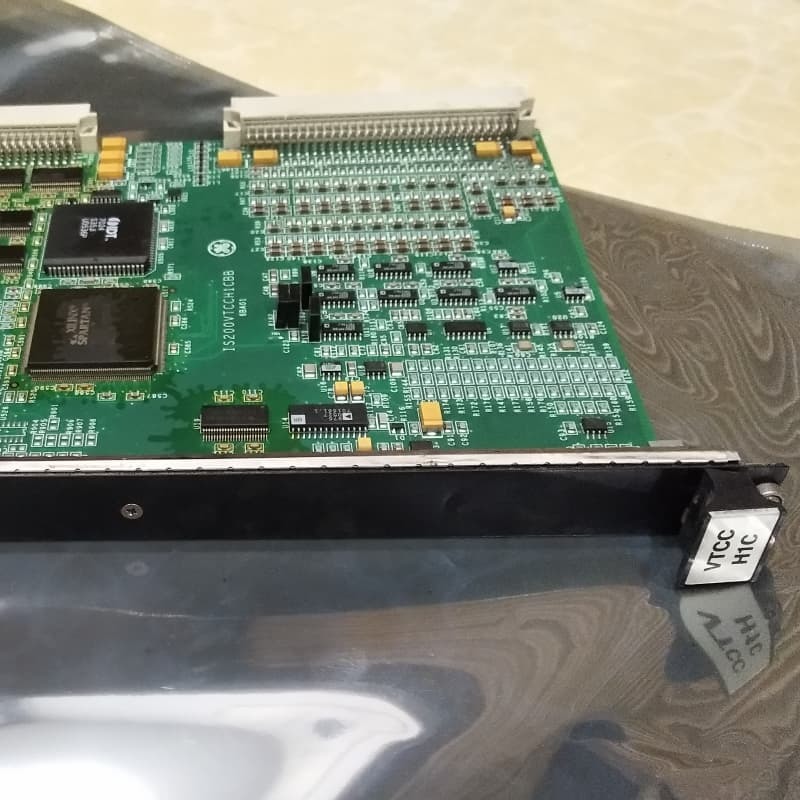

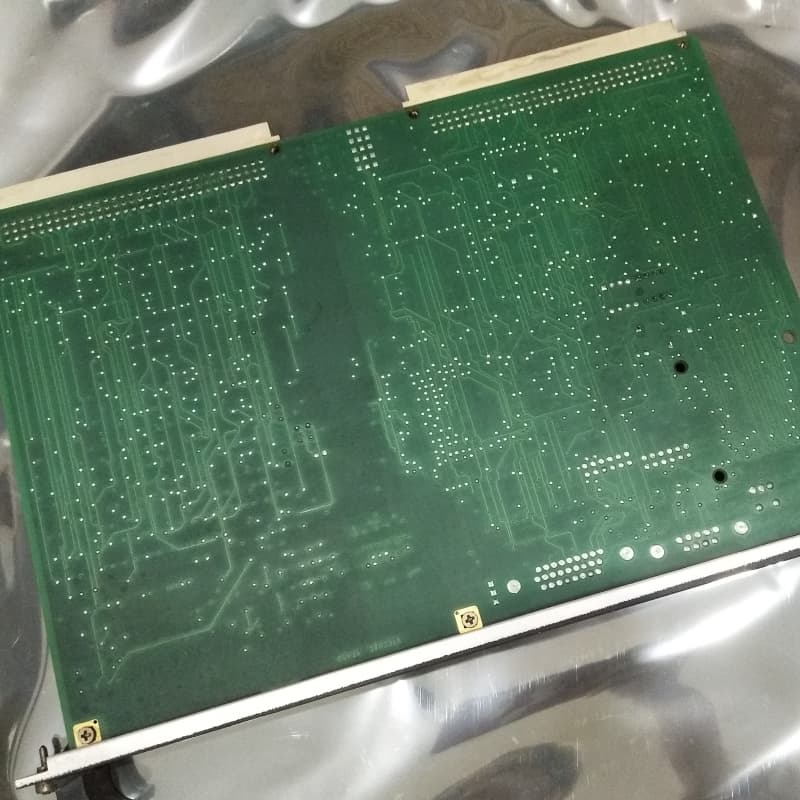

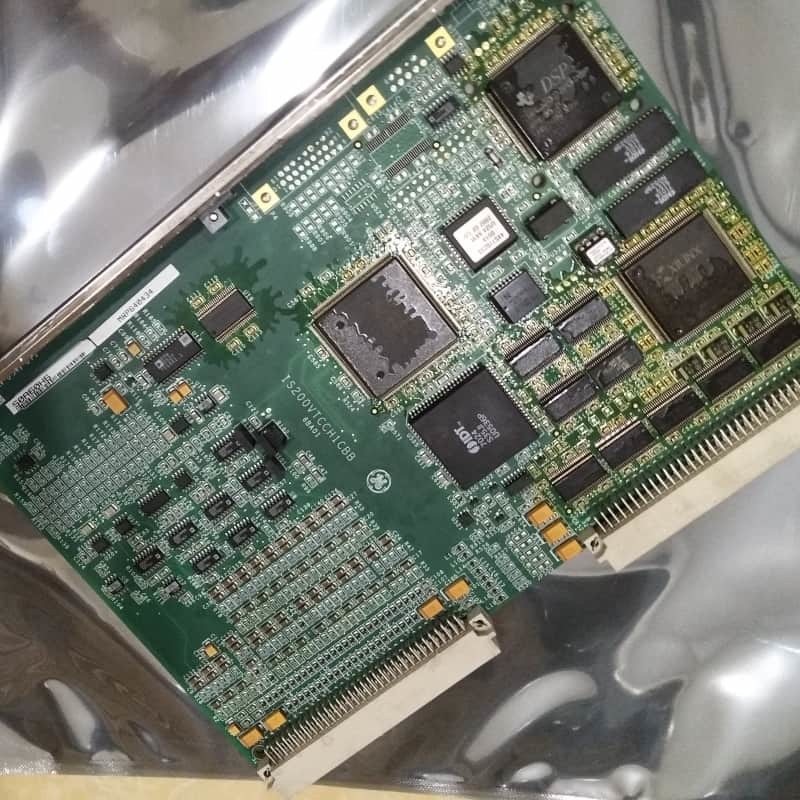

GE IS200VTCCH1CBB Mark VI Turbine Control PCB
| Place of Origin | US |
|---|---|
| Brand Name | GE |
| Model Number | IS200VTCCH1CBB |
| Minimum Order Quantity | 1pc |
| Price | $3900 |
| Packaging Details | New and original factory, individual box packing |
| Delivery Time | 5-7days |
| Payment Terms | T/T |
| Supply Ability | 999pcs |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | GE IS200VTCCH1CBB Printed Circuit Board | Product ID | IS200VTCCH1CBB |
|---|---|---|---|
| Series | Mark VI | Function | Discrete Output Pack |
| Product Net Depth/Length | 330mm | Product Net Height | 200mm |
| Product Net Width | 100mm | Product Net Weight | 2kg |
| Warranty | 1year | ||
| Highlight | GE Mark VI turbine control PCB,turbine control PCB with warranty,GE IS200VTCCH1CBB circuit board |
||
Product Description
GE IS200VTCCH1CBB Printed Circuit Board
Product Specifications
| Attribute | Value |
|---|---|
| Name | GE IS200VTCCH1CBB Printed Circuit Board |
| Product ID | IS200VTCCH1CBB |
| Series | Mark VI |
| Function | Discrete Output pack |
| Product Net Depth/Length | 330mm |
| Product Net Height | 200mm |
| Product Net Width | 100mm |
| Product Net Weight | 2kg |
| Warranty | 1 year |
Product Description
The GE IS200VTCCH1CBB is a Thermocouple Terminal Board in the Mark VI Turbine Control System, designed for gas, steam, and wind turbine control. It accepts up to 24 thermocouple inputs and mV signals, interfacing with DTTC or TBTC terminal boards. Compatible with simplex and TMR setups, it supports grounded/ungrounded thermocouples up to 984 feet from the control cabinet.
Part of the Mark VI series, it features cold junctions and noise suppression for signal integrity. In TMR systems, it flags faults if signals deviate beyond a set limit from the median value, enhancing reliability. Its part number encodes details like Mark VI compatibility, conformal coating, and revision history.
Key Features
- Input Capacity: Handles 24 thermocouple/mV inputs, supporting multiple thermocouple types and a -8 to +45 mV range.
- Flexible Integration: Works with simplex/TMR configurations via TBTC terminal boards; compatible with distant sensors.
- Signal Integrity: Includes cold junctions and high-frequency noise suppression for accurate measurements.
- TMR Fault Detection: Identifies signal deviations from the median value, triggering faults to ensure system reliability.
- Mark VI Compatibility: Integrates with advanced turbine control systems, extending beyond Mark V's limited applications.
Compatible Components
DS200DTBBG1ABB
DS200TCCAF1BDF
DS200SDCIG2AFB
IS200ISBBG1AAB
DS200SDCIG2AHB
IS200CABPG1BAA
DS200BDAAG1AAA
IS200DSFCG1AEB
DS200SIOBH1ABA
IS200DRLYH1BBB
