GE IS210TREGH1B Turbine Emergency Trip Terminal Board Mark VI
| Place of Origin | US |
|---|---|
| Brand Name | GE |
| Model Number | IS210TREGH1B |
| Minimum Order Quantity | 1pc |
| Price | $6000 |
| Packaging Details | New and original factory, individual box packing |
| Delivery Time | 5-7days |
| Payment Terms | T/T |
| Supply Ability | 999pcs |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | GE IS210TREGH1B Turbine Emergency Trip Terminal Board | Product ID | IS210TREGH1B |
|---|---|---|---|
| Series | Mark VI | Function | Turbine Emergency Trip Terminal Board |
| Product Net Depth/Length | 330mm | Product Net Height | 200mm |
| Product Net Width | 100mm | Product Net Weight | 2kg |
| Warranty | 1year | ||
| Highlight | GE Turbine Emergency Trip Board,Mark VI Terminal Board,Turbine Control Terminal Board |
||
Product Description

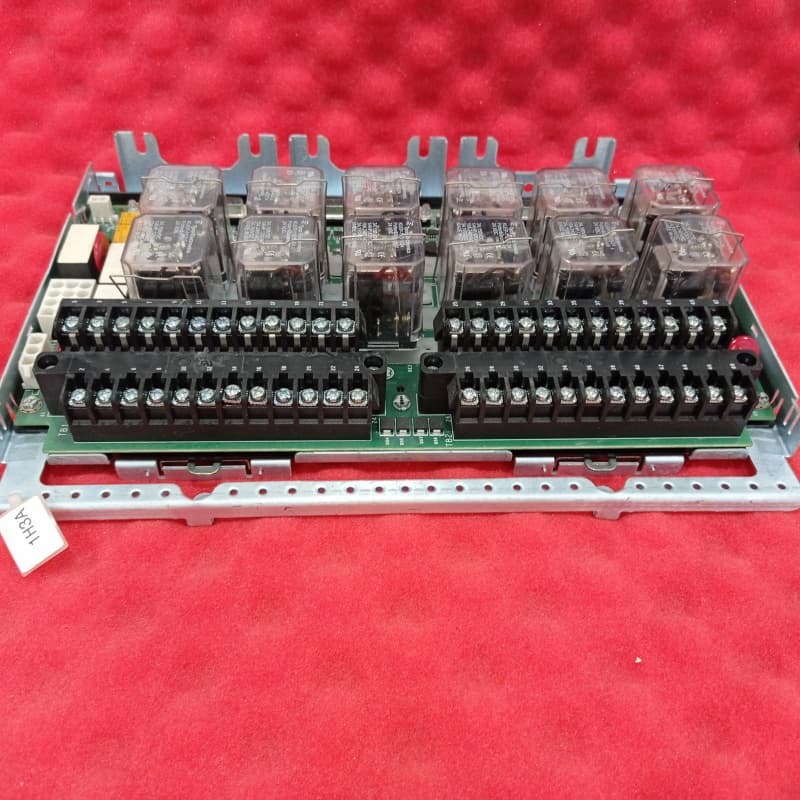

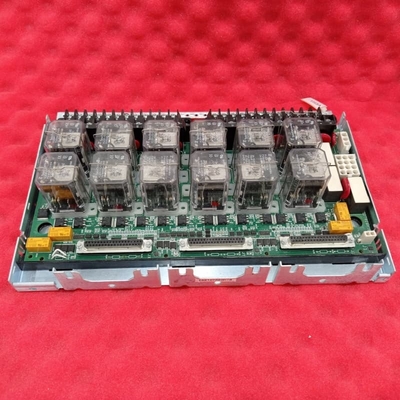

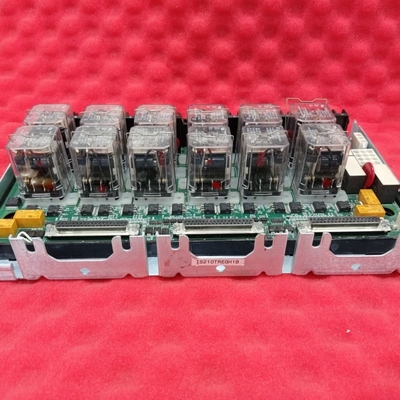

GE IS210TREGH1B Turbine Emergency Trip Terminal Board
Product Details:
The GE IS210TREGH1B is an Emergency Trip Terminal Board in the VI Series, critical for turbine safety. It powers up to three emergency trip solenoids, working with the TRPG board and controlled by I/O packs or the IS215VPRO board. Designed for 125V DC, it features 12 relays (9 in three voting groups) to control solenoids, ensuring reliable emergency trips.
It connects via JX1, JY1, JZ1 (redundant power) and J2 power cable, with J1 linking to the TSVO board for servo clamping in simplex systems. Continuous diagnostics monitor relays, solenoid voltages, and drivers, triggering alerts and safety protocols if faults occur. Solenoid tests verify functionality, enhancing operational reliability.
Features:
Emergency Trip Control: Powers 3 solenoids via 9 voting relays, ensuring redundant, reliable trip activation for overspeed or emergencies.
Power Redundancy: Diode-combined power from JX1/JY1/JZ1 safeguards status circuits and economizer relays, with separated trip relay power.
Seamless Integration: Works with TRPG and I/O packs, supporting simplex systems with TSVO servo clamp links.
Comprehensive Diagnostics: Monitors relays, solenoid voltages, drivers, and power sources, logging faults and activating safety protocols.
Test Capabilities: Enables online/offline solenoid testsmanual activation, overspeed simulations with feedback confirmation for validation.
