GE IS200TDBTH2ACD Discrete Simplex Terminal Board for Turbine Control
| Place of Origin | US |
|---|---|
| Brand Name | GE |
| Certification | COO |
| Model Number | IS200TDBTH2ACD |
| Minimum Order Quantity | 1pc |
| Price | $2300 |
| Packaging Details | New and original factory, individual box packing |
| Delivery Time | 5-7days |
| Payment Terms | T/T |
| Supply Ability | 999pcs |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | GE IS200TDBTH2ACD T DISCRTE SIMPLEX | Product ID | IS200TDBTH2ACD |
|---|---|---|---|
| Series | Turbine Specific Primary Trip Board | Function | T DISCRTE SIMPLEX |
| Product Net Depth/Length | 330mm | Product Net Height | 200mm |
| Product Net Width | 100mm | Product Net Weight | 2kg |
| Warranty | 1year | ||
| Highlight | GE turbine control terminal board,discrete simplex terminal board,IS200TDBSH2AAA terminal board |
||
Product Description
GE IS200TDBTH2ACD T DISCRTE SIMPLEX
Product Specifications
| Attribute | Value |
|---|---|
| Name | GE IS200TDBTH2ACD T DISCRTE SIMPLEX |
| Product ID | IS200TDBTH2ACD |
| Series | Turbine Specific Primary Trip Board |
| Function | T DISCRTE SIMPLEX |
| Dimensions (L x W x H) | 330mm x 100mm x 200mm |
| Weight | 2kg |
| Warranty | 1 year |
Product Overview
GE IS200TDBTH2ACD designed for simplex industrial control systems. It handles discrete signals with 24 contact inputs and 12 Form-C relay outputs, suitable for non-redundant setups.
Accepting 24, 48, or 125 V DC wetting voltage from external sources, its inputs feature noise suppression to resist surges and high-frequency interference. Compatible with PDIO I/O packs, it connects via D-type connectors for Ethernet communication with controllers.
Installed on DIN rails or in cabinets via sheet metal carriers, it uses #18 AWG wires wired to 48 terminal blocks (TB1 for relays, TB2 for inputs). Shields terminate separately. With no hardware jumpers, it simplifies setup, ideal for manufacturing and power sectors needing reliable simplex discrete signal management.
Applications
This terminal board enhances operational efficiency in manufacturing and power generation sectors by providing reliable discrete signal handling. Its robust design makes it particularly suitable for:
- Industrial control systems
- Power generation equipment
- Manufacturing automation
- Process control applications

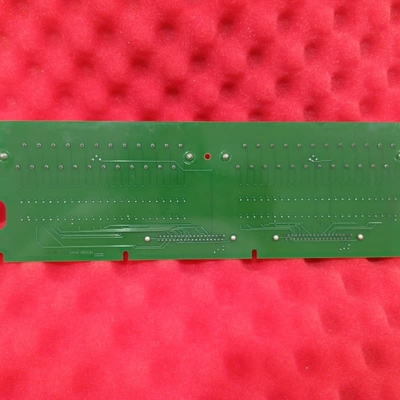

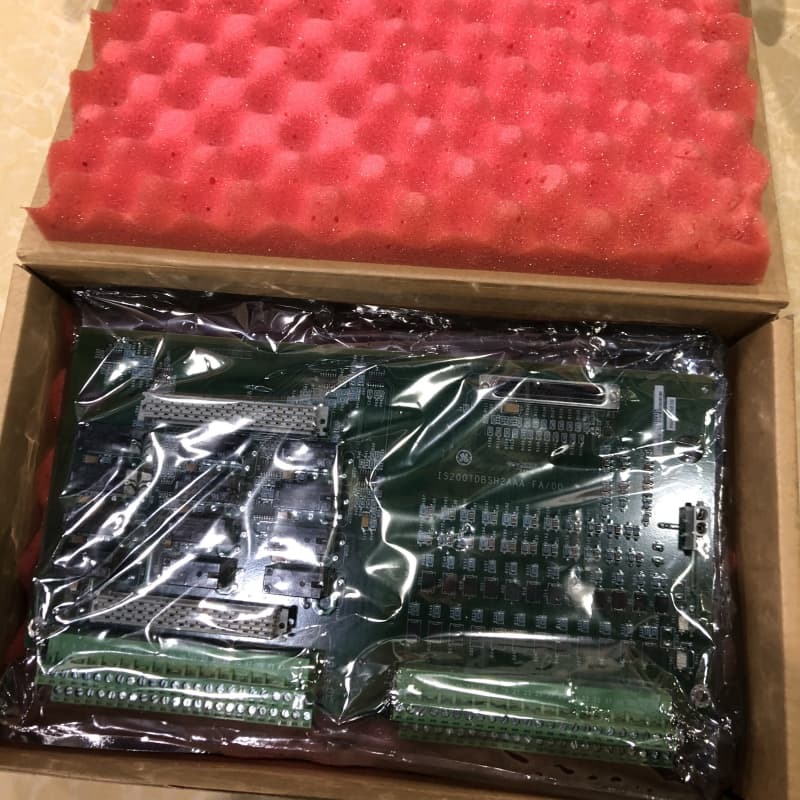

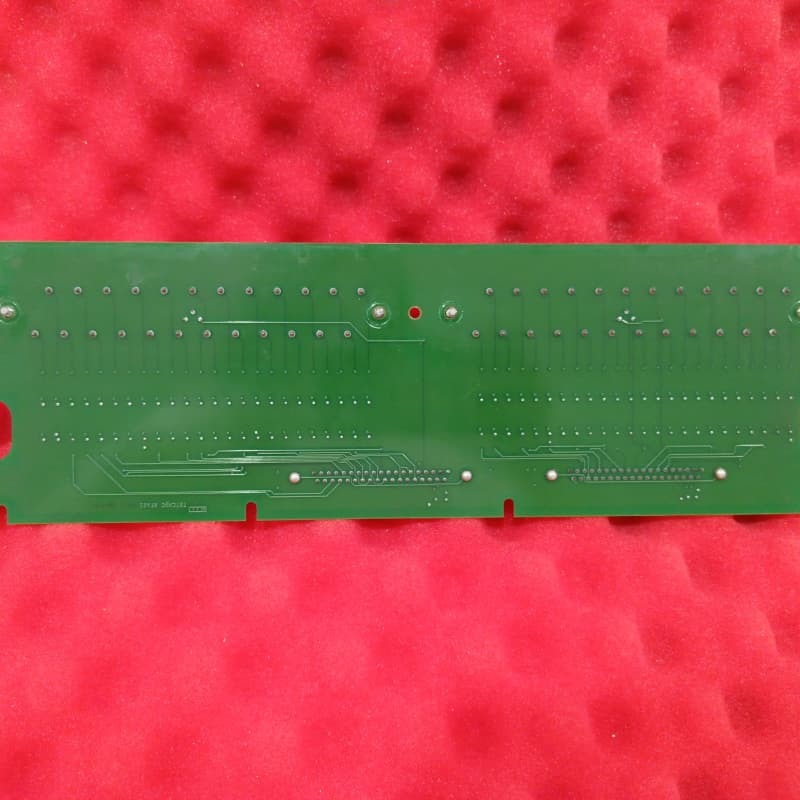

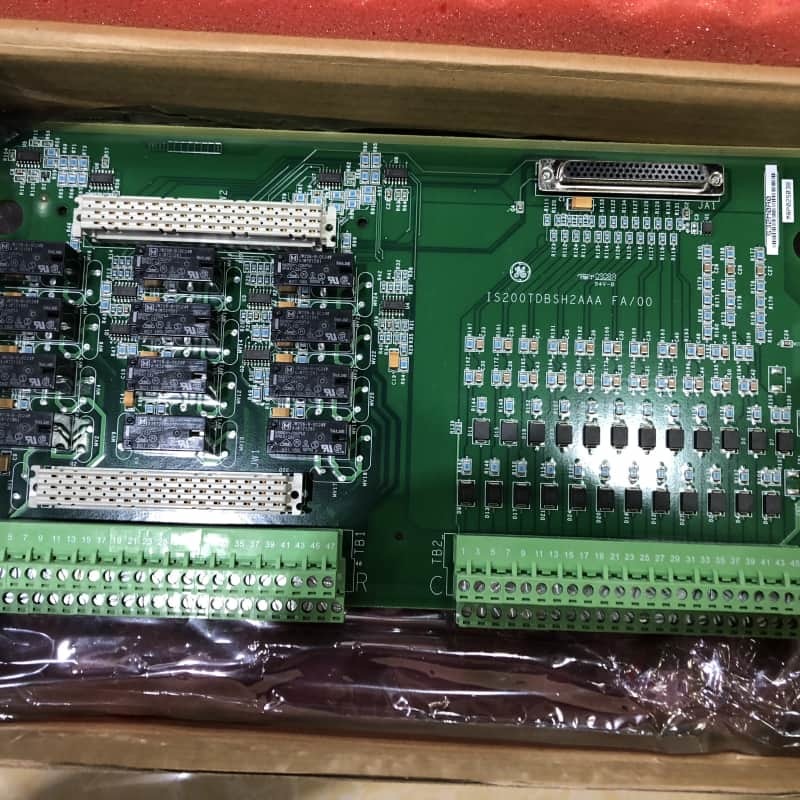

Product Images
