GE IS200SSCAH2AGD Serial Communication I/O Terminal Board
| Place of Origin | US |
|---|---|
| Brand Name | GE |
| Model Number | IS200SSCAH2AGD |
| Minimum Order Quantity | 1pc |
| Price | $1500 |
| Packaging Details | New and original factory, individual box packing |
| Delivery Time | 5-7days |
| Payment Terms | T/T |
| Supply Ability | 999pcs |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | GE IS200SSCAH2AGD Serial Communication I/O Terminal Board | Product ID | IS200SSCAH2AGD |
|---|---|---|---|
| Series | Mark VI | Function | Serial Communication I/O Terminal Board |
| Product Net Depth/Length | 330mm | Product Net Height | 200mm |
| Product Net Width | 100mm | Product Net Weight | 2kg |
| Warranty | 1year |
Product Description

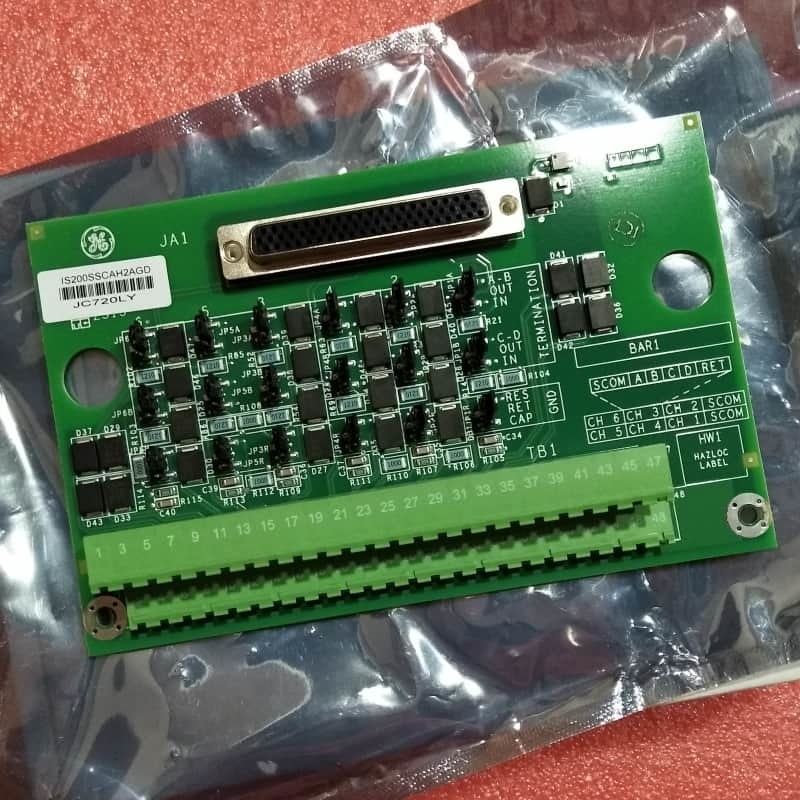

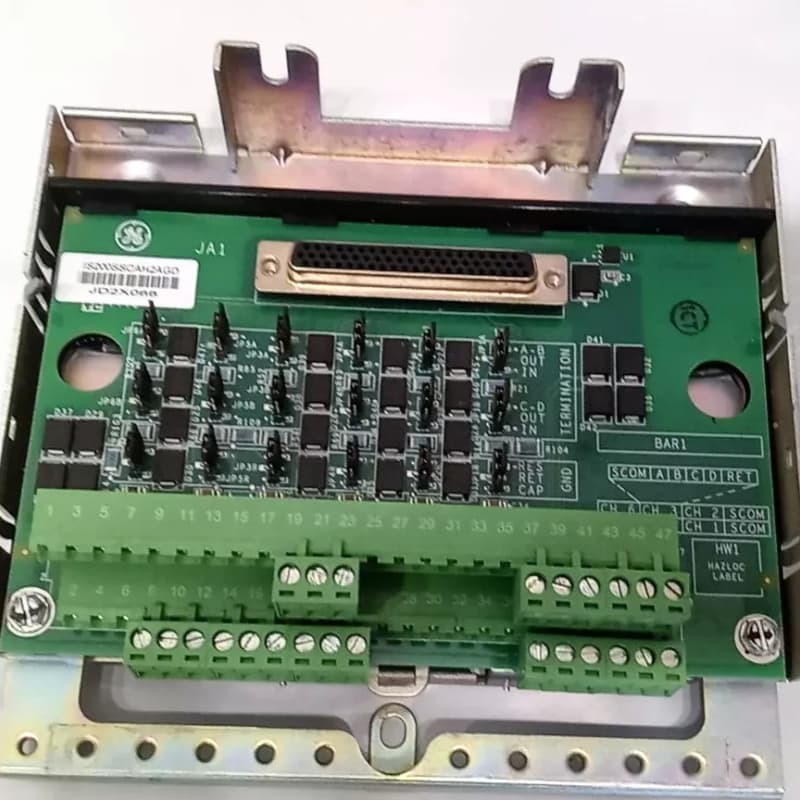

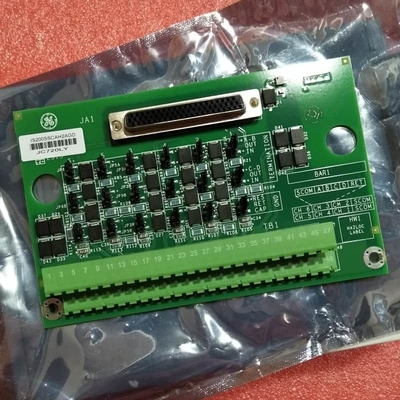

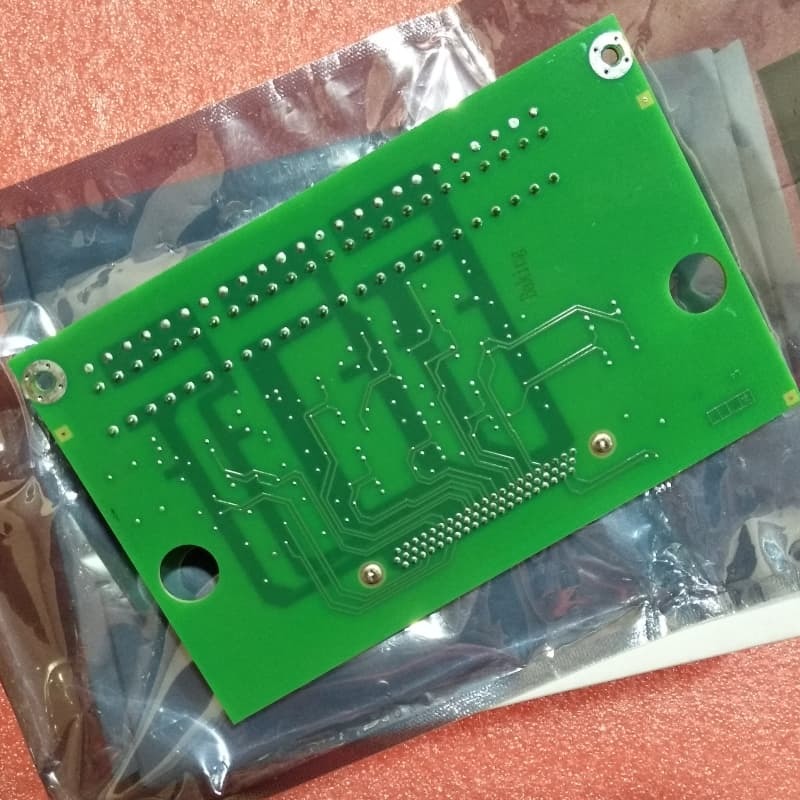

GE IS200SSCAH2AGD Serial Communication I/O Terminal Board
Product Specifications
| Attribute | Value |
|---|---|
| Name | GE IS200SSCAH2AGD Serial Communication I/O Terminal Board |
| Product ID | IS200SSCAH2AGD |
| Series | Mark VI |
| Function | Serial Communication I/O Terminal Board |
| Dimensions (L×W×H) | 330mm × 100mm × 200mm |
| Weight | 2kg |
| Warranty | 1 year |
Product Overview
The GE IS200SSCAH2AGD is a serial communication I/O termination board for the Mark VI series, designed to provide robust serial communication capabilities for industrial control systems.
Key Features
- Advanced Communication: 6 channels supporting RS-232C, RS-485, or RS-422 signals (RS-422/RS-485 systems support up to 8 taps)
- Flexible Configuration: Terminal resistors selected via jumpers (JP1A-JP6A, JP1B-JP6B) with JP1R-JP6R determining return type relationship to SCOM
- Compact Design: Surface mount technology with dimensions of 15.9cm × 10.2cm
- Robust Operation: Operating temperature range of -30°C to 65°C
- Diagnostic Capability: Read-only ID chip stores board serial number and type for hardware compatibility verification
- Optimized Connectivity: Features 37-pin female cable connector and 48-bit terminal block with conductive holes and circular cutouts for easy installation
Installation & Compatibility
This terminal board offers flexible mounting options including DIN rail mounting with metal bracket and plastic insulator or direct cabinet bolting. It utilizes 18 AWG shielded twisted pair wiring and connects via DC-37 pin connector, compatible with PSCA I/O components that interface with the controller through Ethernet.
