GE IS200RCSBG1BAA RC Snubber Card 100mm Net Width

The GE IS200RCSBG1BAA is a 620 Frame RC Snubber Card engineered to safeguard diodes and Silicon-Controlled Rectifiers (SCRs) from overvoltage damage. As a critical component in power electronics systems, it ensures stable operation by providing essential snubber circuitry, with one card required per bridge configuration.

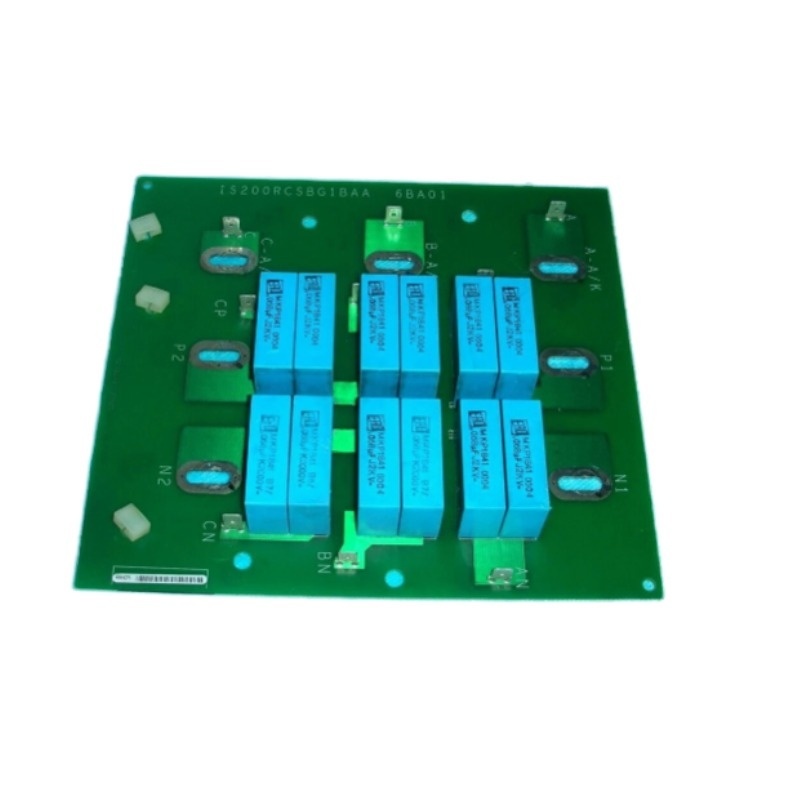

Featuring twelve surface-mounted capacitors arranged in six pairs, each capacitor offers a capacitance range of 0.095–0.150 µF and a clamping current of 8.5 Apk. This configuration allows precise control of voltage spikes and transient currents. Each capacitor pair aligns with a dedicated stab-on connector, streamlining installation and maintenance. The board also includes seven conductive-ringed terminal connections labeled N1, N2, P1, P2, A-A/K, B-A/K, and C-A/K, facilitating secure electrical connections.

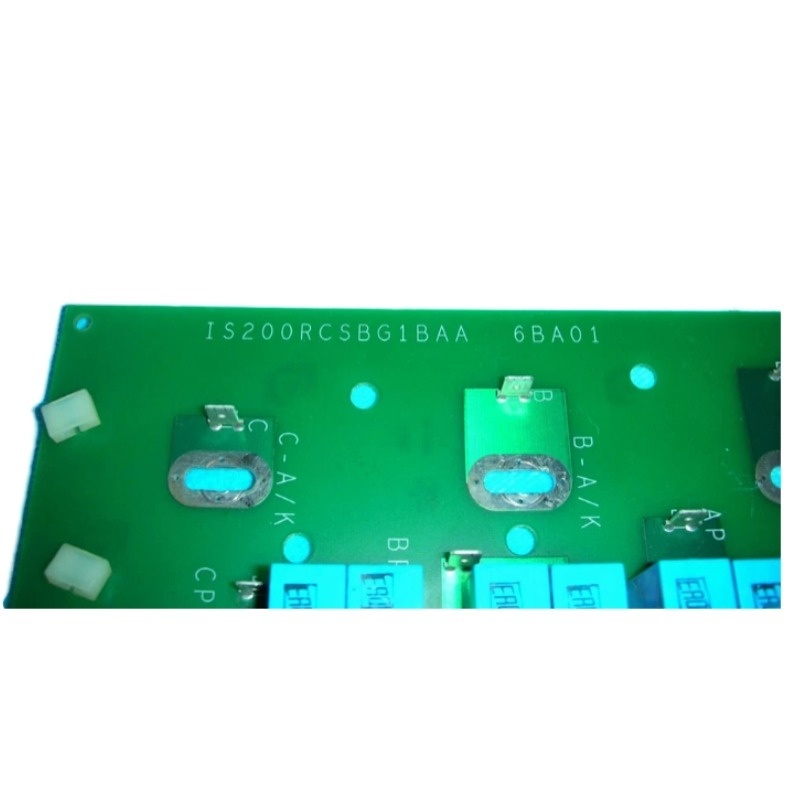

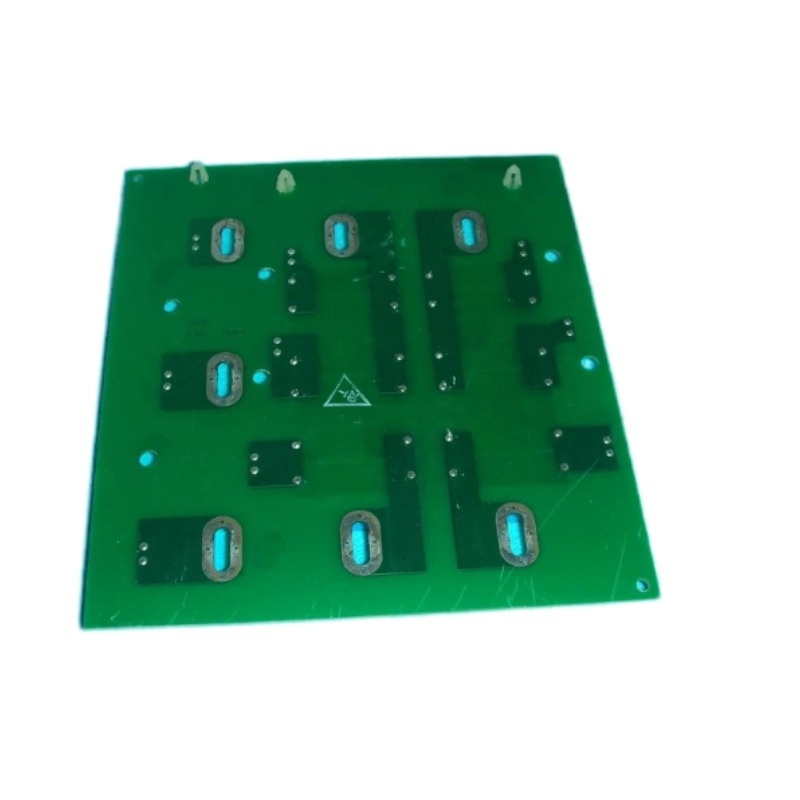

Marked with the General Electric logo and product codes like 6BA01, the card features factory-drilled holes in two corners for easy mounting. For comprehensive details on its function, application requirements, handling precautions, and replacement procedures, users should consult GE’s official documentation, to ensure safe and effective operation.
