GE IS200JPDHG1AAA High Density Power Distribution Board

  • GE IS200JPDHG1AAA High Density Power Distribution Board
  • GE IS200JPDHG1AAA High Density Power Distribution Board
  • GE IS200JPDHG1AAA High Density Power Distribution Board
Place of Origin US
Brand Name GE
Model Number IS200JPDHG1AAA
Minimum Order Quantity 1pc
Price $2500
Packaging Details New and original factory, individual box packing
Delivery Time 5-7days
Payment Terms T/T
Supply Ability 999pcs

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name GE IS200JPDHG1AAA High Density Power Distribution Board Product ID IS200JPDHG1AAA
Series Mark VI Function Discrete Output Pack
Product Net Depth/Length 330mm Product Net Height 200mm
Product Net Width 100mm Product Net Weight 2kg
Warranty 1year
Highlight

Power Distribution Board

,

IS200JPDHG1AAA High Density Board

,

JPDHG1AAA Power Distribution Board
Leave a Message
Product Description

GE IS200JPDHG1AAA High Density Power Distribution Board


Product Details:

The GE IS200JPDHG1AAA is a High-Density Power Distribution Card, part of the Mark VI Turbine Control System used in wind, gas, and steam turbine control. It distributes 28V DC power, supplying up to 24 Mark VIe I/O packs and 3 Ethernet switches. Multiple units can connect in a daisy-chain for expanded power.


Compatible with products like IS210SAMBH1A, it works in hazardous and non-hazardous locations, complying with UL 508A, CSA 22.2 No. 14, and EN 61010-1. It features 29 female pin connectors, with inputs via a 6-pin Mate-N-Lok and outputs for switches and I/O packs.


Features:
1.Power Distribution: Delivers 28V DC to 24 I/O packs and 3 Ethernet switches; expandable via daisy-chained multiple units.


2.Circuit Protection: Each I/O pack connector has a PTC fuse to limit overcurrent, safeguarding connected devices.


3.Installation: Mounts on vertical surfaces with #6 screws; uses Mate-N-Lok connectors as specified.


4.Connector Ratings: 6-pin and larger 2-pin connectors handle 600V/13A; smaller 2-pin ones (I/O packs) handle 600V/0.8A.


5.Safety Compliance: Meets UL 508A, CSA 22.2 No. 14, and EN 61010-1 standards for industrial safety.


6.Compatibility: Works with Mark VI series products like IS210SAMBH1A, IS42yPDASH1A, and IS42yYDASS1A.

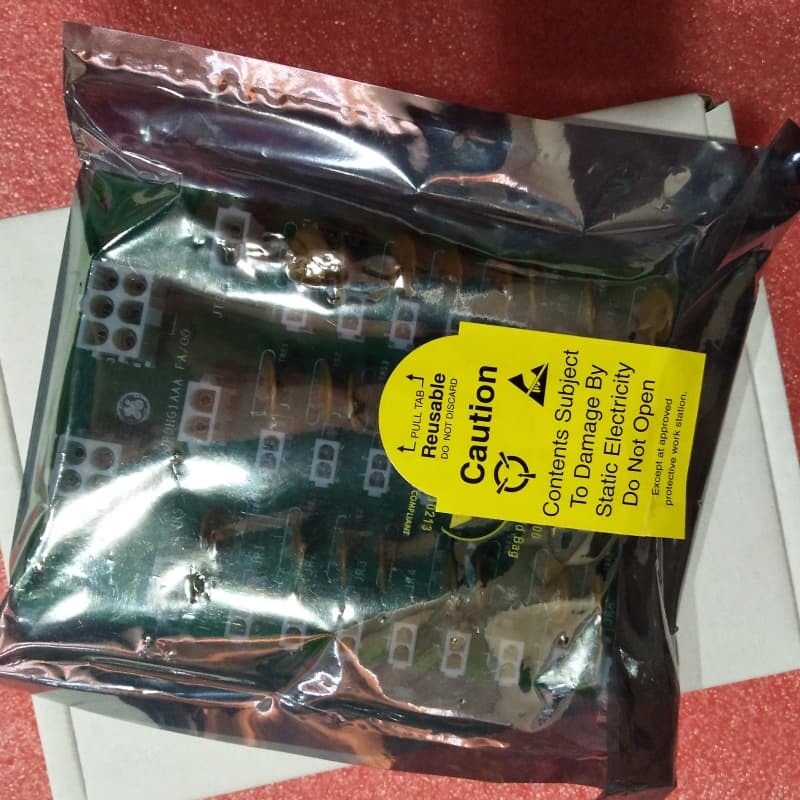

GE IS200JPDHG1AAA High Density Power Distribution Board 0

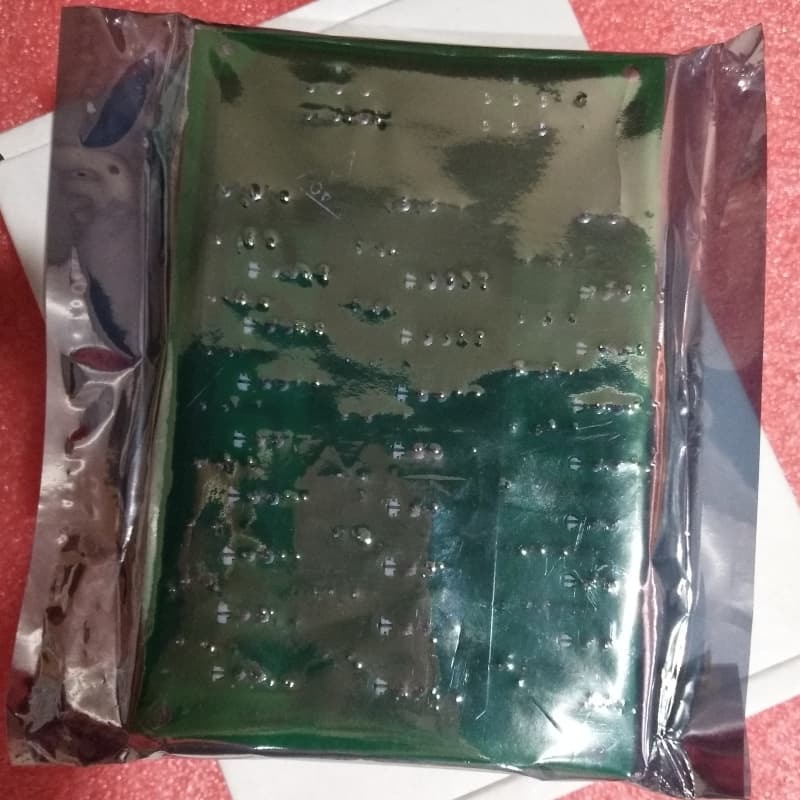

GE IS200JPDHG1AAA High Density Power Distribution Board 1



DS200DTBBG1ABB DS200TCCAF1BDF
DS200SDCIG2AFB IS200ISBBG1AAB
DS200SDCIG2AHB IS200CABPG1BAA
DS200BDAAG1AAA IS200DSFCG1AEB
DS200SIOBH1ABA IS200DRLYH1BBB
