GE IS200ISBEH2ABC ISBus Extender Board Net Height 200mm

The GE IS200ISBEH2ABC is an ISBus Extender Board, a key component of the EX2100 excitation system and the ISBus High-Speed Synchronous Communication System. It enhances communication and control capabilities, specifically compatible with GE’s Mark VI Speedtronic drive components, which are vital for controlling, protecting, and monitoring industrial gas and steam turbines.

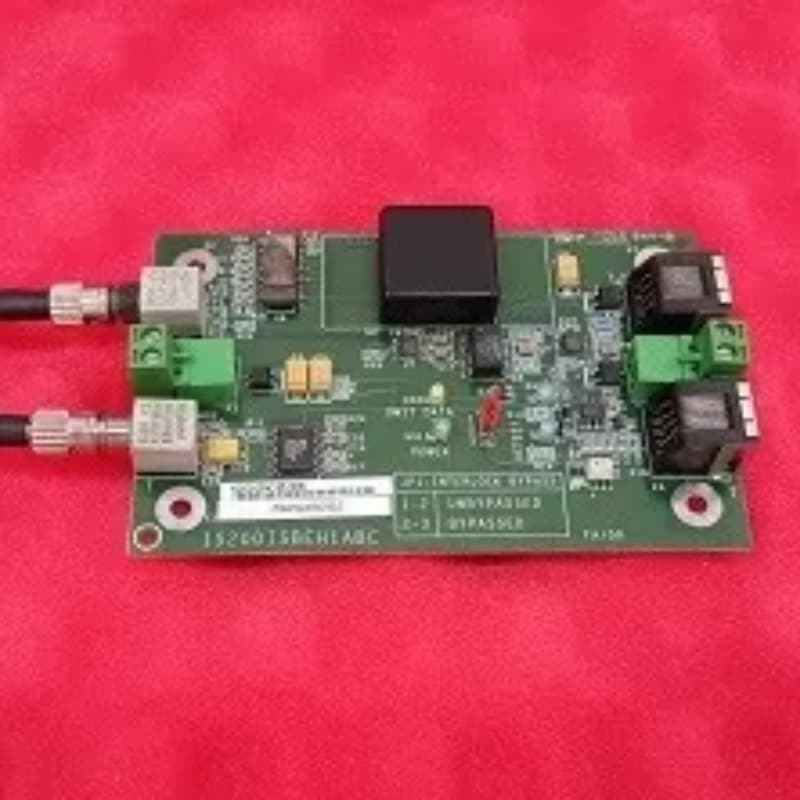

Equipped with a PC-based HMI operator interface running on a Microsoft Windows platform with preloaded GE CIMPLICITY software, it allows reinitialization or replacement without disrupting other processes. It connects to the J11A interface on the CAPB Control Assembly Backplane and can mate with J12A, featuring six inputs/outputs on opposite edges, small terminal strips, two plug connectors, and two fiber-optic connectors.

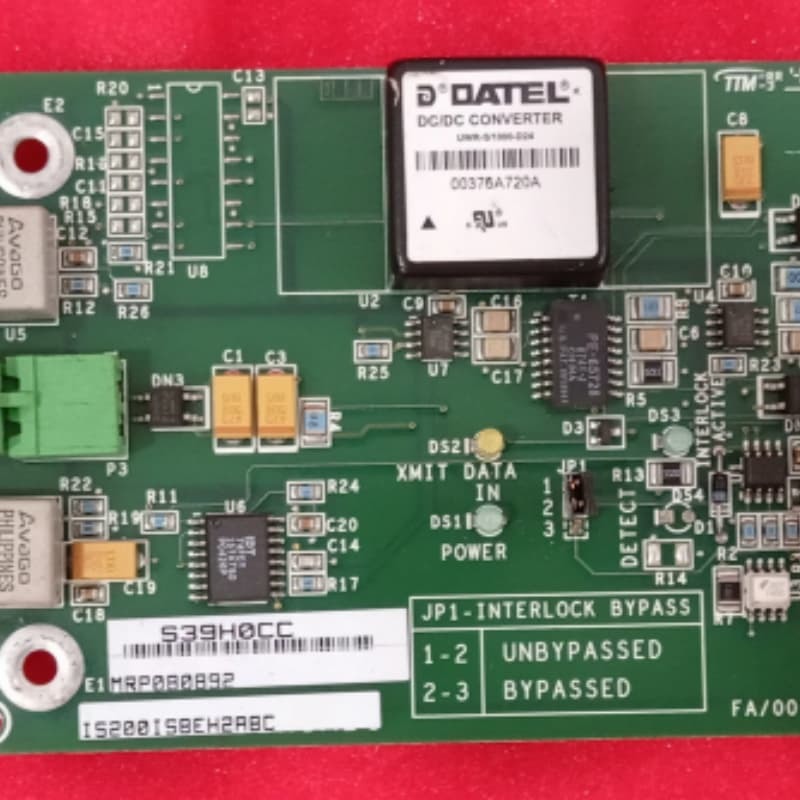

Designed for DIN rail mounting, it ensures stable installation. Compatible with ST-type HCS or glass fiber connectors, it processes signals by converting optical input to electrical signals and reconfiguring them into optical output. Protected by conformal coating, it has four LEDs indicating power, transmit data input, active interlock, and optical reception, operating reliably without fuses or test points except for a customizable jumper.
