GE IS200ISBBG1AAB Insync Bus Bypass Card

  • GE IS200ISBBG1AAB Insync Bus Bypass Card
  • GE IS200ISBBG1AAB Insync Bus Bypass Card
  • GE IS200ISBBG1AAB Insync Bus Bypass Card
Place of Origin US
Brand Name GE
Model Number IS200ISBBG1AAB
Minimum Order Quantity 1pc
Price $1850
Packaging Details New and original factory, individual box packing
Delivery Time 5-7days
Payment Terms T/T
Supply Ability 999pcs

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name GE IS200ISBBG1AAB Insync Bus Bypass Card Product ID IS200ISBBG1AAB
Series Mark VI Function Exciter Backplane Board
Product Net Depth/Length 330mm Product Net Height 200mm
Product Net Width 100mm Product Net Weight 2kg
Warranty 1year
Highlight

Insync Bus Bypass Card

,

IS200ISBBG1AAB Bus Bypass Card
Leave a Message
Product Description

GE IS200ISBBG1AAB Insync Bus Bypass Card


Product Details:

The GE IS200ISBBG1AAB is an Insync bus bypass card, a key component of the EX2100 excitation system and part of the Mark VI turbine control system.
Designed for industrial control environments, it enables temporary overriding of interlock systems via the JP1 Interlock Bypass feature, facilitating specific operations under certain interlock conditions. As a compact PCB, it integrates seamlessly into control setups, supporting the efficient and flexible operation of gas, steam, and wind turbine drive assemblies.


Features:

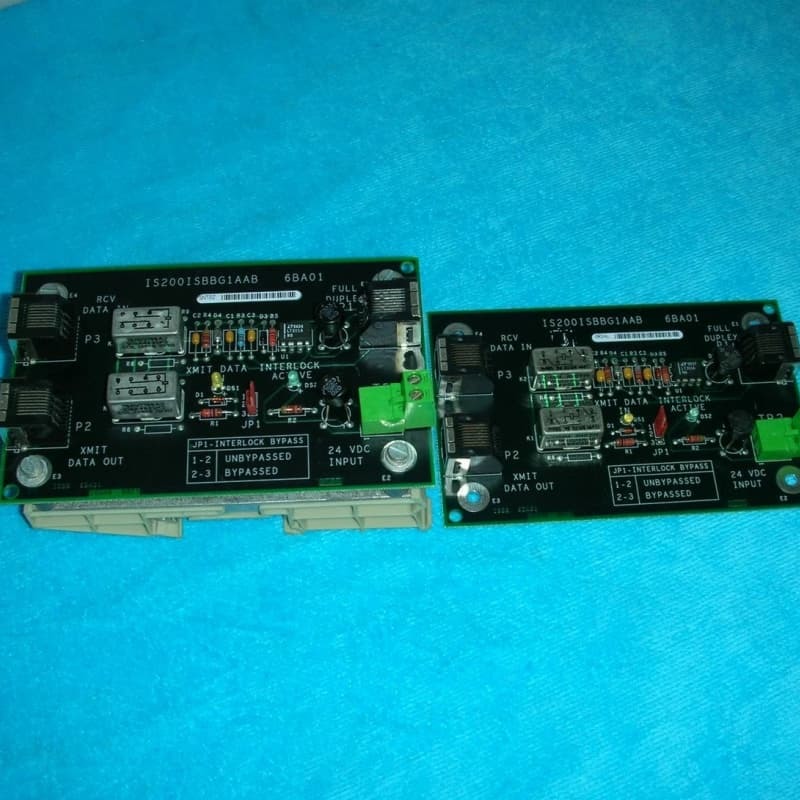

1.Compact & DIN Rail-Mountable: Small form factor with DIN rail mounting (secured via screws), suitable for space-constrained environments; conductive material around holes ensures grounding.

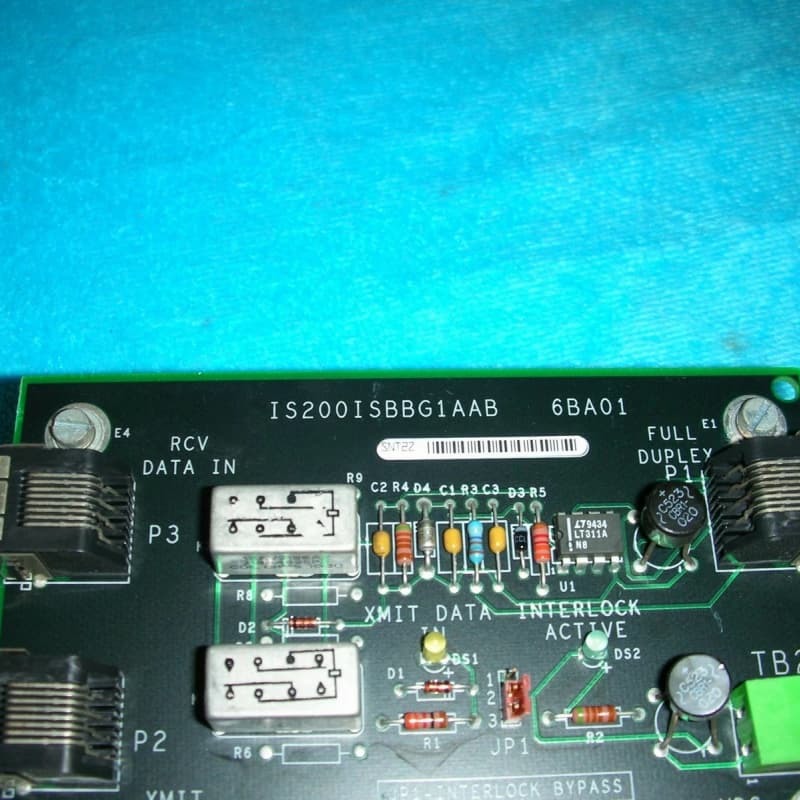

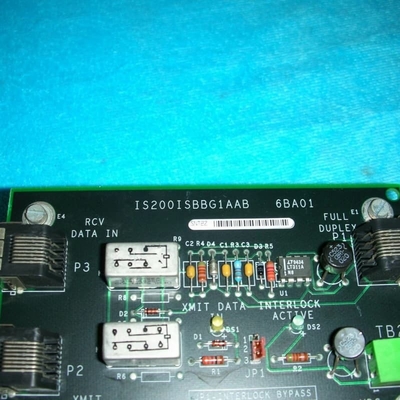

2.Connector Configuration: 4 connectors including 3 plugs, of which P1 is full duplex, P2 is XMIT data output, P3 belongs to the RCV data input, and 1 terminal block P4/24 VDC input for data exchange and power supply.


3.Jumper & Indicators: Clear on-board jumper position labeling; 2 LEDs for monitoring, which yellow for XMIT data, green for interlock status.


4.Integrated Components: Includes a 200ns response time voltage comparator, relays, resistors, capacitors, and diodes for stable performance.


5.Secure Connections: P4 terminal strip with screw connections ensures reliable external wiring links.

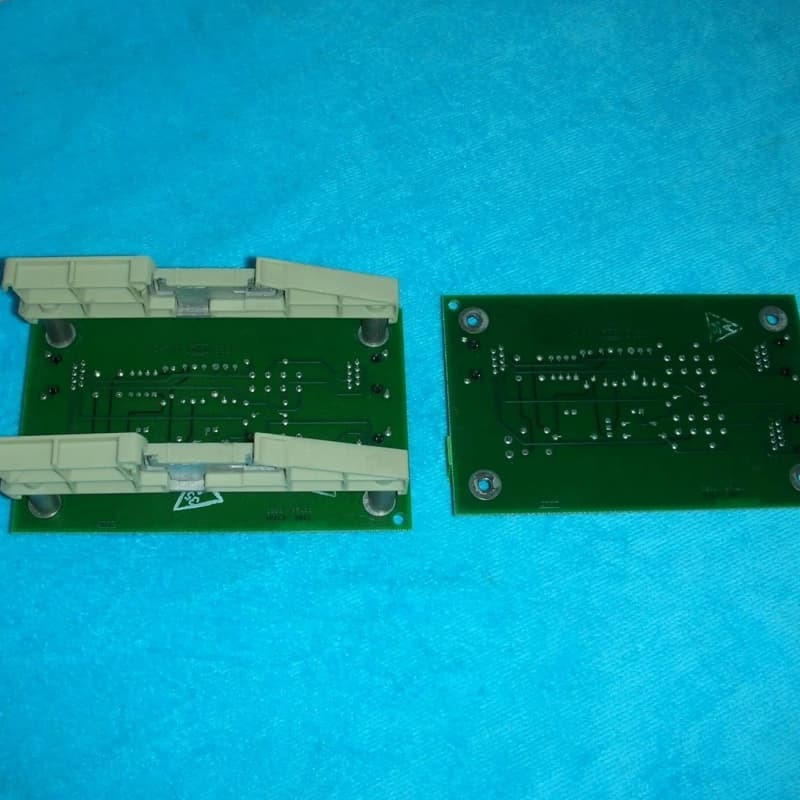

GE IS200ISBBG1AAB Insync Bus Bypass Card 0


GE IS200ISBBG1AAB Insync Bus Bypass Card 1
