GE IS200GGXDG1ABB Expander Diode Source Board
| Place of Origin | US |
|---|---|
| Brand Name | GE |
| Model Number | IS200GGXDG1ABB |
| Minimum Order Quantity | 1pc |
| Price | $3000 |
| Packaging Details | New and original factory, individual box packing |
| Delivery Time | 5-7days |
| Payment Terms | T/T |
| Supply Ability | 999pcs |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | GE IS200GGXDG1ABB Expander Diode Source Board | Product ID | IS200GGXDG1ABB |
|---|---|---|---|
| Series | Mark VI | Function | Exciter Backplane Board |
| Product Net Depth/Length | 330mm | Product Net Height | 200mm |
| Product Net Width | 100mm | Product Net Weight | 2kg |
| Warranty | 1year | ||
| Highlight | IS200GGXDG1ABB Expander Diode Source Board,ABB Expander Diode Source Board |
||
Product Description
GE IS200GGXDG1ABB Expander Diode Source Board
Product Specifications
| Attribute | Value |
|---|---|
| Name | GE IS200GGXDG1ABB Expander Diode Source Board |
| Product ID | IS200GGXDG1ABB |
| Series | Mark VI |
| Function | Exciter Backplane Board |
| Dimensions (L×W×H) | 330mm × 100mm × 200mm |
| Weight | 2kg |
| Warranty | 1 year |
Product Overview
The IS200GGXDG1ABB is an Expander Diode Source Board designed for GE's Mark VI Turbine Control System, part of the Speedtronic series. This advanced component represents a significant upgrade from the Mark V system, supporting gas, steam, and wind turbines through patented Speedtronic technology.
Key Features
- RS-422 transceivers for gating command interfacing with the BICI
- High-frequency voltage input handling from the Gate Driver Power Assembly board
- Seven stab-on connectors for secure grounding
- Three LED indicators (DS1 for P5 OK, DS2 for GDPA OK, DS4 for 115V OK) for efficient fault diagnosis
- Four duplex connectors for status feedback and firing commands
- Multiple pin connectors including:
- J1 (20-pin to NATO board)
- J2 (6-pin to GDPA)
- J3 (2-pin for 115VAC power)
- PRSC (50-pin I/O to BICI)
This board enhances system reliability with comprehensive diagnostic capabilities and supports diverse power generation environments. As a revision of the IS200GGXDG1A model, it offers customizable settings through Berg and wire jumpers.

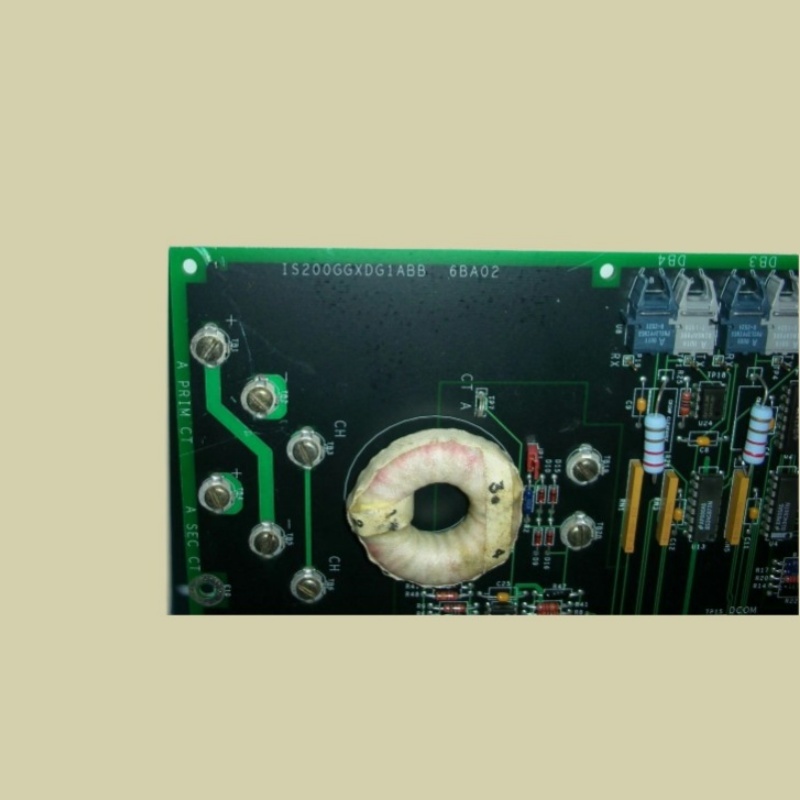

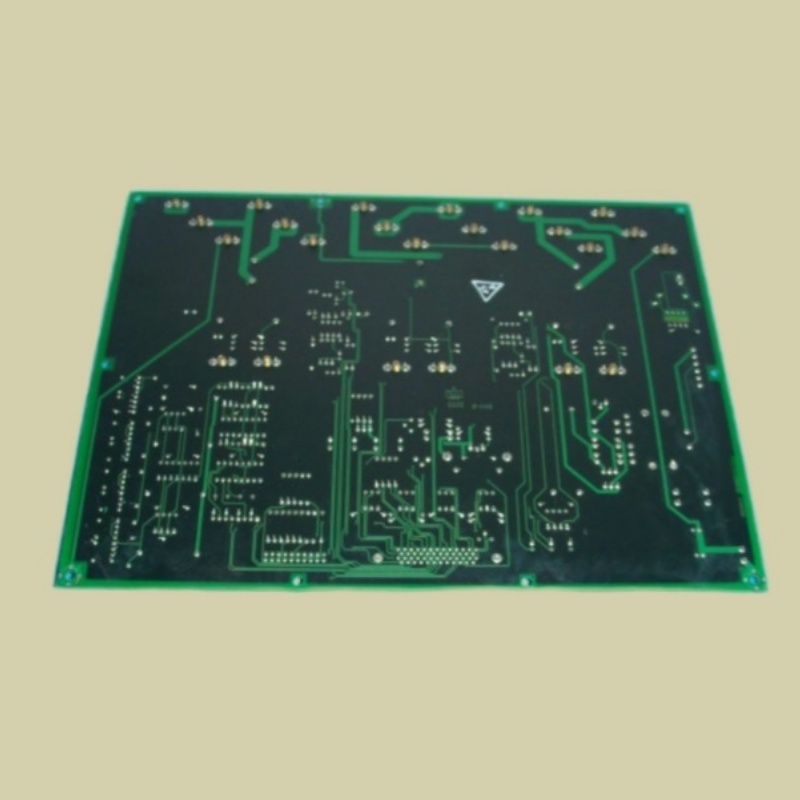

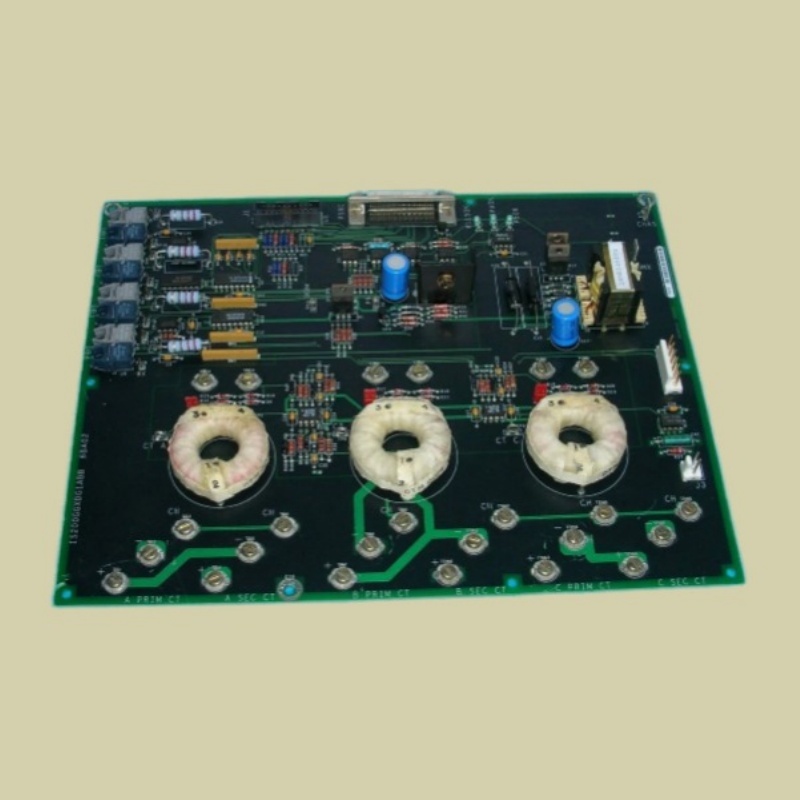

Product Images
