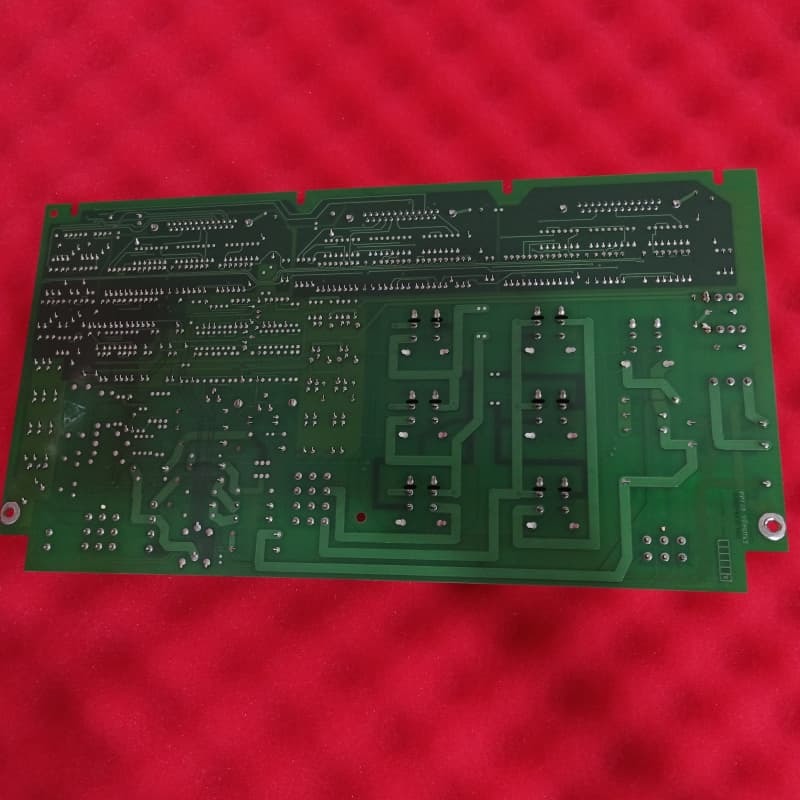

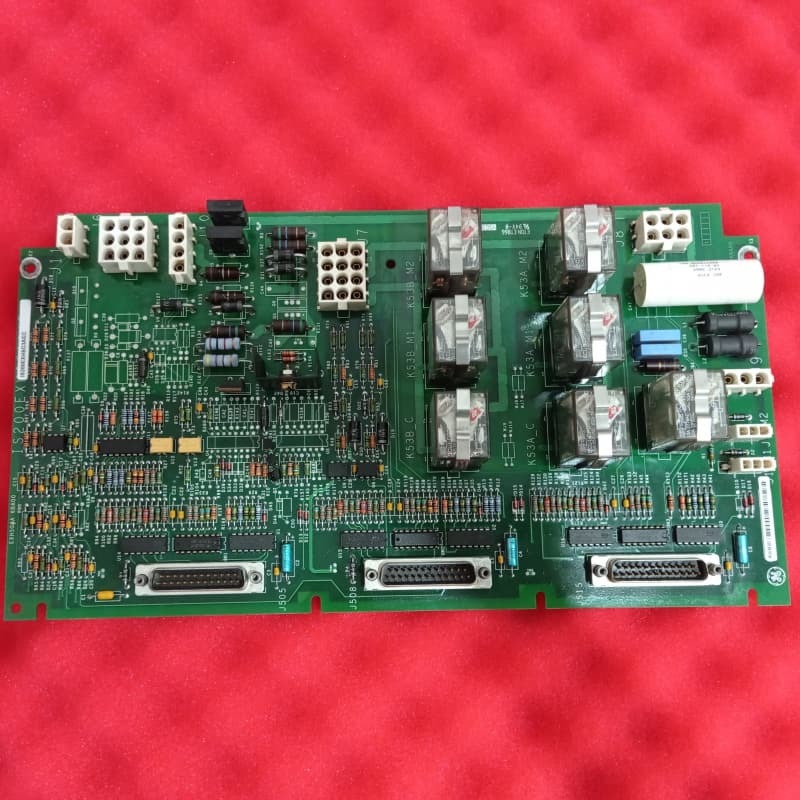

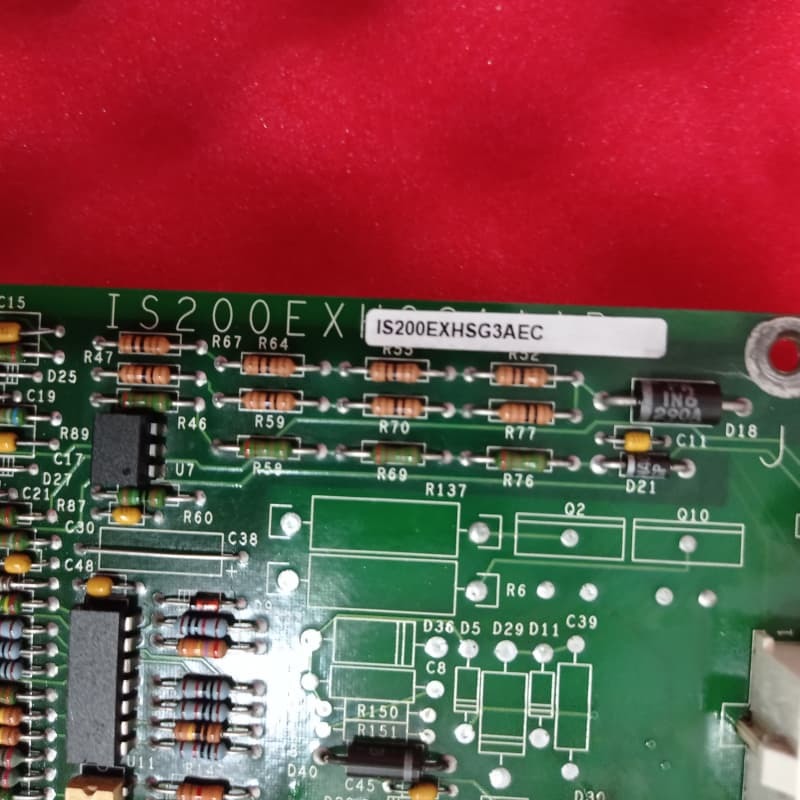

GE IS200EXHSG3AEC Exciter HS Relay Driver Board 330mm Net Depth
| Place of Origin | US |
|---|---|
| Brand Name | GE |
| Model Number | IS200EXHSG3AEC |
| Minimum Order Quantity | 1pc |
| Price | $5000 |
| Packaging Details | New and original factory, individual box packing |
| Delivery Time | 5-7days |
| Payment Terms | T/T |
| Supply Ability | 999pcs |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | GE IS200EXHSG3AEC Exciter HS Relay Driver Board | Product ID | IS200EXHSG3AEC |
|---|---|---|---|
| Series | Mark VI | Function | Exciter Backplane Board |
| Product Net Depth/Length | 330mm | Product Net Height | 200mm |
| Product Net Width | 100mm | Product Net Weight | 2kg |
| Warranty | 1year | ||
| Highlight | Exciter HS Relay Driver Board,IS200EXHSG3AEC Exciter HS Relay Driver Board |
||
Product Description
GE IS200EXHSG3AEC Exciter HS Relay Driver Board
Product Details:
The IS200EXHSG3AEC is a printed circuit board by GE Industrial Systems, part of the EX2100 Excitation Control series—a TMR system for turbine generators. As a Static Exciter High-Speed Terminal board, it integrates with the Mark VI Turbine Control System, leveraging GE's Speedtronic technology. It is crucial for excitation control, supporting de-excitation, field flashing, and signal transmission.
Core Functions: Drives DC contactors and pilot relays for de-excitation and field flashing. Includes pilot relays for flashing relays 53A/53B and de-excitation relay KDEP.
Signal Handling: Conditions de-excitation status signals and crowbar status signals, transmitting them to the EMIO system for monitoring.
Power Specifications:
Relay coil power: 125 V DC from J9.
Relay contact power: 24 V DC from the exciter cabinet.
Relay Performance:
Resistive load: Up to 2 A at 28 V DC.
Inductive load: 1 A at 28 V DC for 0.007 seconds (L/R).
Suppression: External suppression for the relay coil to mitigate voltage spikes.
Hardware: Features solid-state relay drivers, heat sinks, 7 relays, capacitors, resistors, connectors (3 d-shell, 8 plugs), and mounting-friendly drillings/notches. Protected by standard PCB coating.
