GE IS200EPDMG1BAA Exciter Power Distribution Module
| Place of Origin | US |
|---|---|
| Brand Name | GE |
| Model Number | IS200EPDMG1BAA |
| Minimum Order Quantity | 1pc |
| Price | $6000 |
| Packaging Details | New and original factory, individual box packing |
| Delivery Time | 5-7days |
| Payment Terms | T/T |
| Supply Ability | 999pcs |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | GE IS200EPDMG1BAA Exciter Power Distribution Module | Product ID | IS200EPDMG1BAA |
|---|---|---|---|
| Series | Mark VI | Function | Discrete Output Pack |
| Product Net Depth/Length | 330mm | Product Net Height | 200mm |
| Product Net Width | 100mm | Product Net Weight | 2kg |
| Warranty | 1year | ||
| Highlight | IS200EPDMG1BAA,Power Distribution Module |
||
Product Description
GE IS200EPDMG1BAA Exciter Power Distribution Module
| Name | GE IS200EPDMG1BAA Exciter Power Distribution Module |
|---|---|
| Product ID | IS200EPDMG1BAA |
| Series | Mark VI |
| Function | Discrete Output pack |
| Product Net Depth/Length | 330mm |
| Product Net Height | 200mm |
| Product Net Width | 100mm |
| Product Net Weight | 2kg |
| Warranty | 1 year |
Product Description

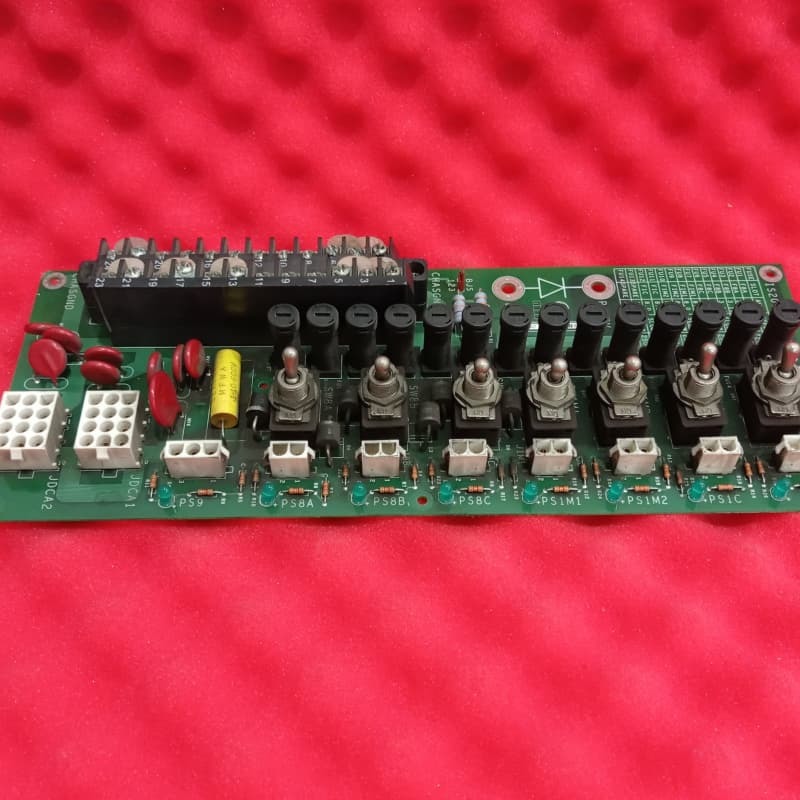

The GE IS200EPDMG1BAA is a rectangular board component for General Electric's Mark VI gas/steam turbine control system. As part of the EX2100 excitation system, it supports simplex or triple-mode redundant control architectures and has Ethernet capabilities. It has two terminal blocks at the bottom corners, equipped with multiple female plug connectors, toggle switches, fuses, metal oxide varistors, capacitors and resistors, and 8 green LED indicators on the long edge are used to show whether the module is powered.
Key Features
- Power distribution and conversion: The external AC to DC converter rectifies the AC to 125V DC, and the diode coupling is achieved through an external diode, so that the nominal voltages of P125V and R125V relative to the ground are +62.5V and -62.5V respectively, ensuring stable power supply.
- Safety and grounding: Chassis grounding and safety grounding are achieved through specific on-board mounting holes to reduce electrical risks and ensure stable system operation.
- Connection interface: JDACA1 and JDACA2 connectors facilitate the connection of AC power to external DACA units for efficient power distribution.

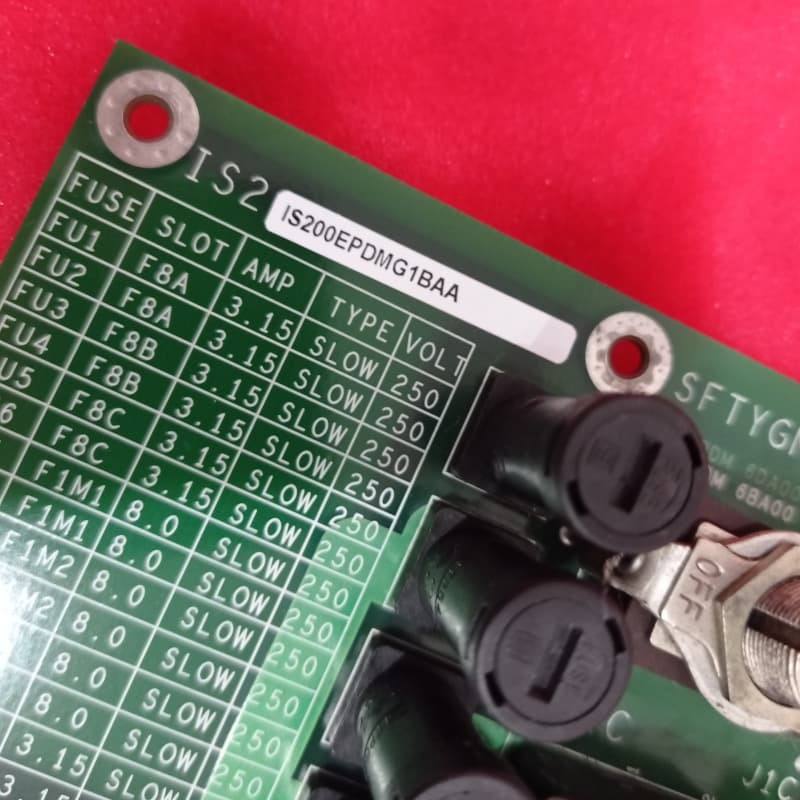

- Convenient control and monitoring: The power output of each exciter board is equipped with fuses, switches and green LED indicators for easy user monitoring and control, and can provide power to multiple exciter boards such as EGPA, EXTB, EPSM, etc.
