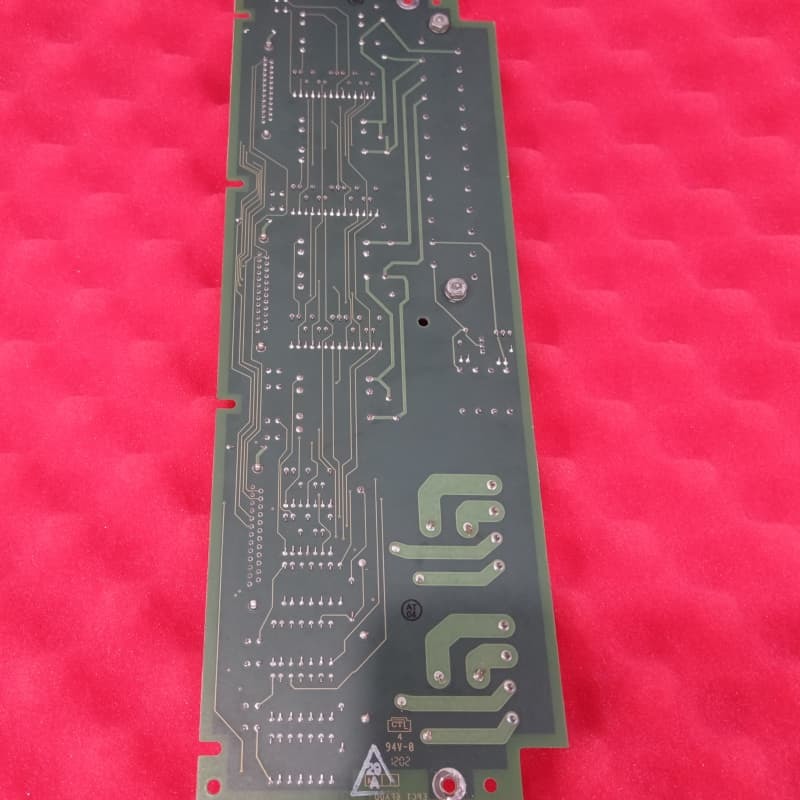

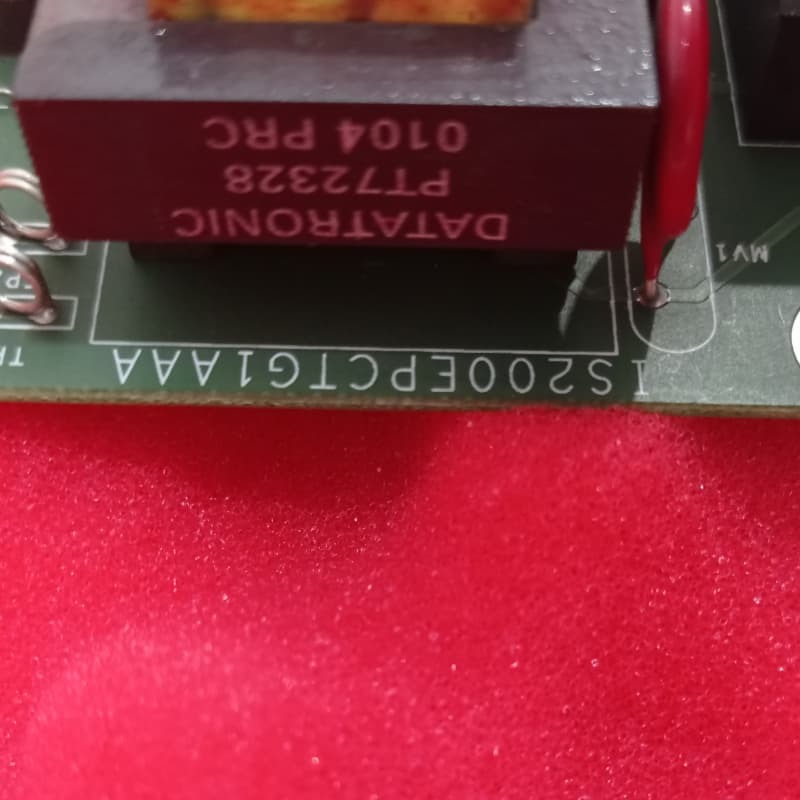

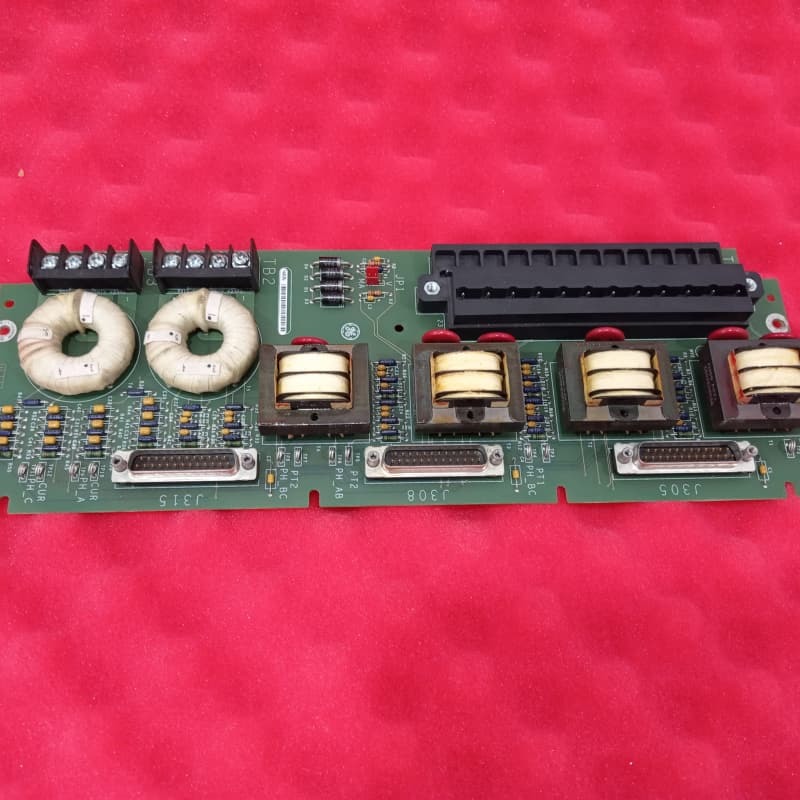

GE IS200EPCTG1AAA Exciter PT/CT Terminal Board
| Place of Origin | US |
|---|---|
| Brand Name | GE |
| Model Number | IS200EPCTG1AAA |
| Minimum Order Quantity | 1pc |
| Price | $8000 |
| Packaging Details | New and original factory, individual box packing |
| Delivery Time | 5-7days |
| Payment Terms | T/T |
| Supply Ability | 999pcs |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | GE IS200EPCTG1AAA Exciter PT/CT Terminal Board | Product ID | IS200EPCTG1AAA |
|---|---|---|---|
| Series | Mark VI | Function | Exciter Backplane Board |
| Product Net Depth/Length | 330mm | Product Net Height | 200mm |
| Product Net Width | 100mm | Product Net Weight | 2kg |
| Warranty | 1year | ||
| Highlight | GE IS200EPCTG1AAA Exciter,PT/CT Terminal Board,IS200EPCTG1AAA PT/CT Terminal Board |
||
Product Description
GE IS200EPCTG1AAA Exciter PT/CT Terminal Board
Product Specifications
| Attribute | Value |
|---|---|
| Name | GE IS200EPCTG1AAA Exciter PT/CT Terminal Board |
| Product ID | IS200EPCTG1AAA |
| Series | Mark VI |
| Function | Exciter Backplane Board |
| Dimensions (L×W×H) | 330mm × 100mm × 200mm |
| Weight | 2kg |
| Warranty | 1 year |
Product Overview
The GE IS200EPCTG1AAA is a critical Exciter PT/CT Terminal Board in the EX2100 excitation system, designed for precise generator voltage and current measurements through isolation transformers.
Key Features
- Integrates two 3-phase PT inputs and two CT inputs
- Outputs cabled to the EMIO board for signal processing
- Supports cable lengths up to 1000ft for flexible installation
- Fused PT inputs and fixed CT terminal blocks prevent open circuits
- 12 voltage test points for comprehensive diagnostics
- Three 25-pin connectors for EBKP backplane integration
- Enables signal distribution to M1, M2, and C controllers
- Supports redundant configurations with up to three boards
